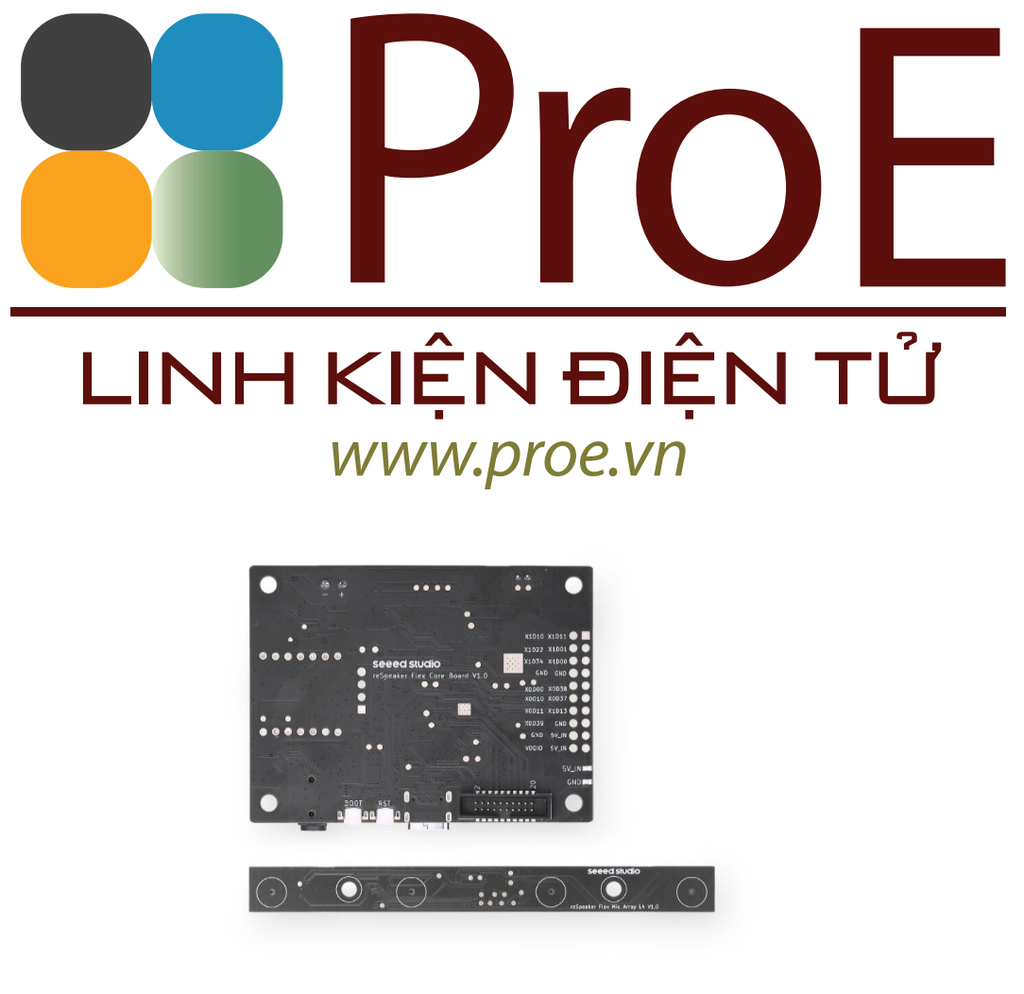

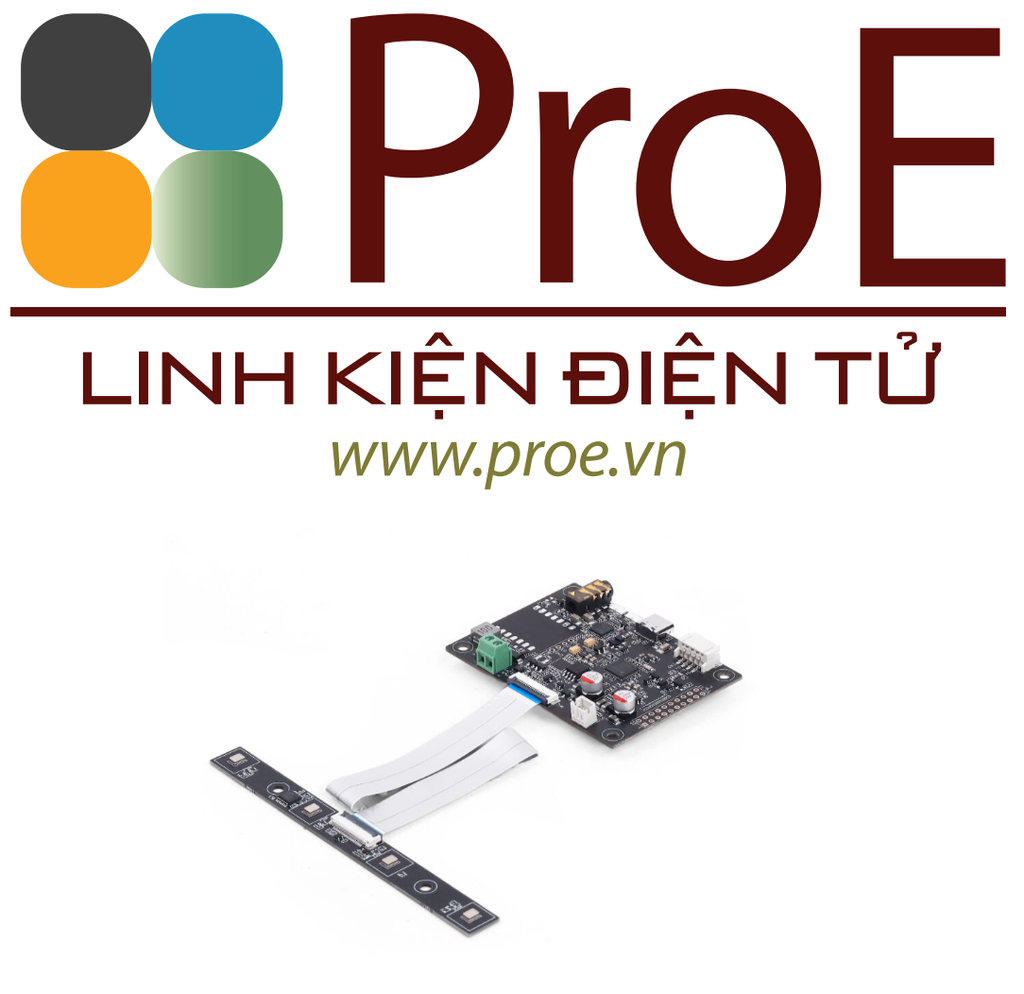

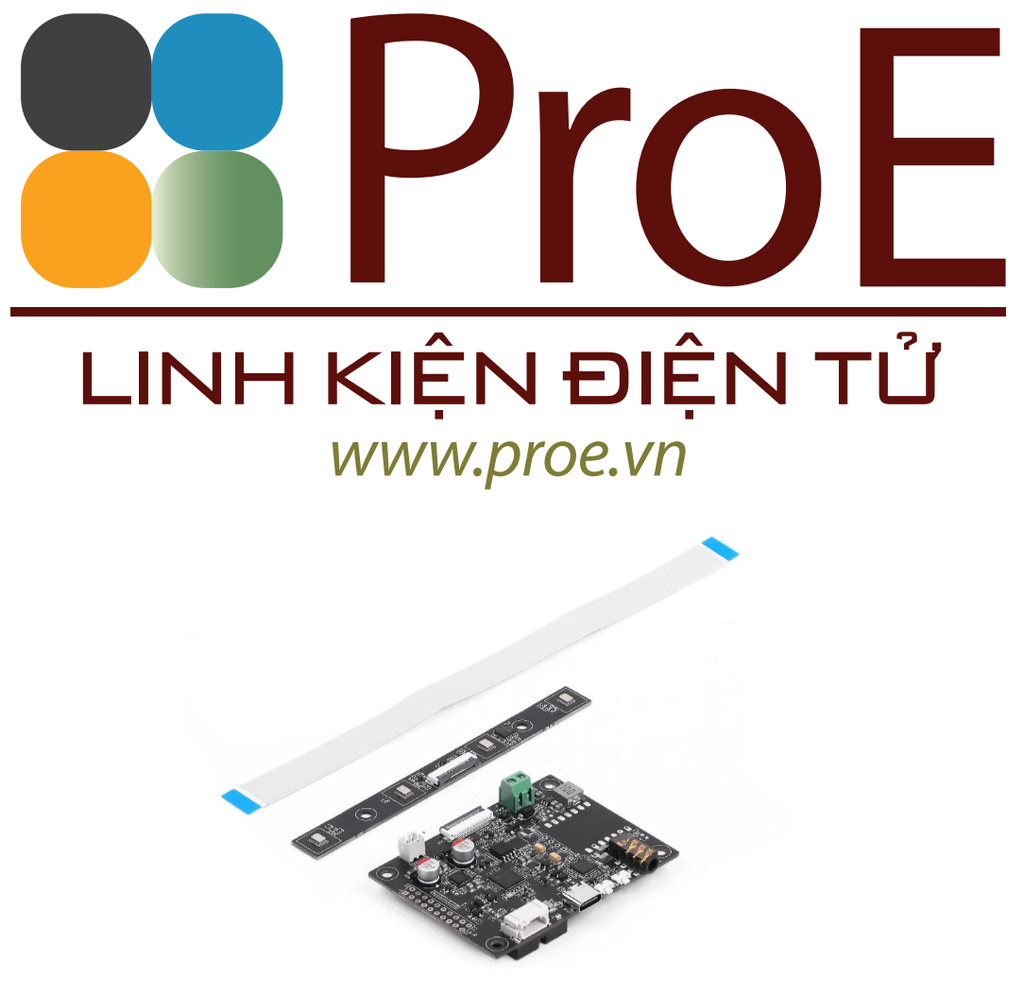

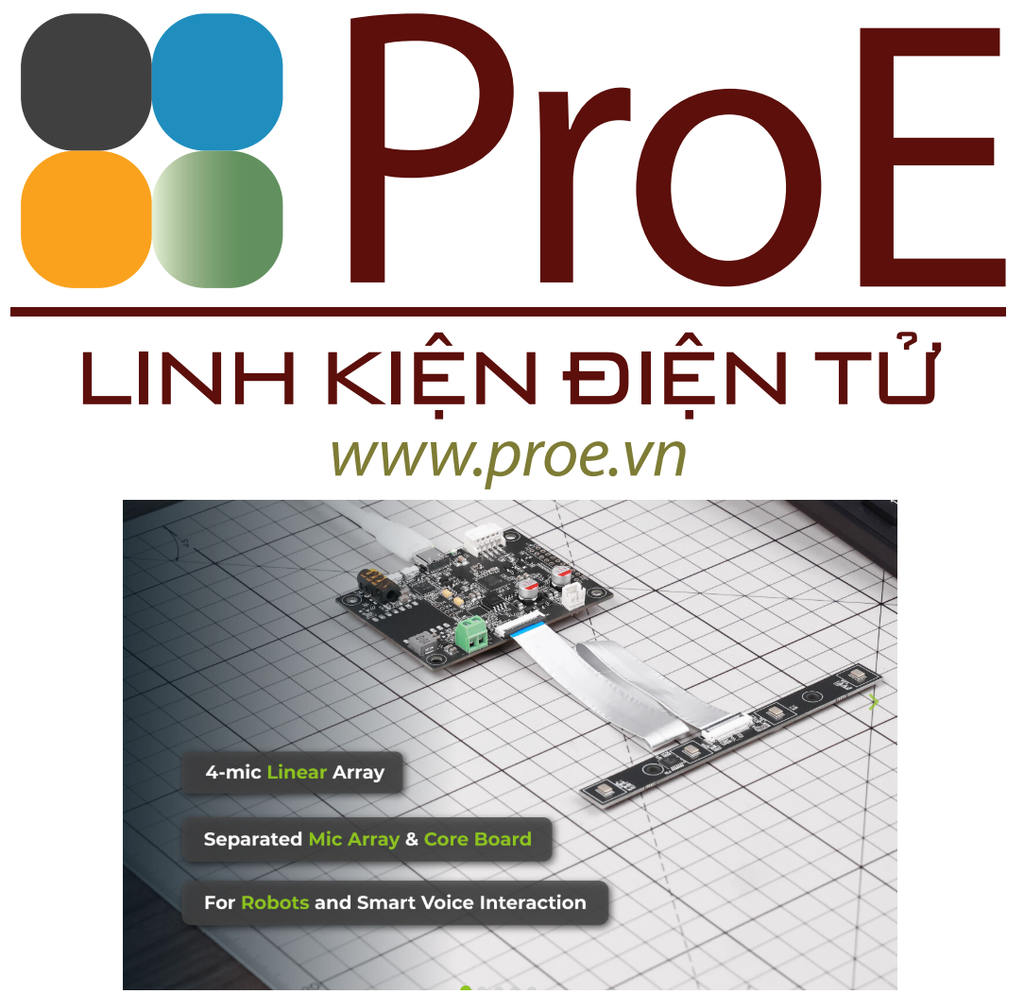

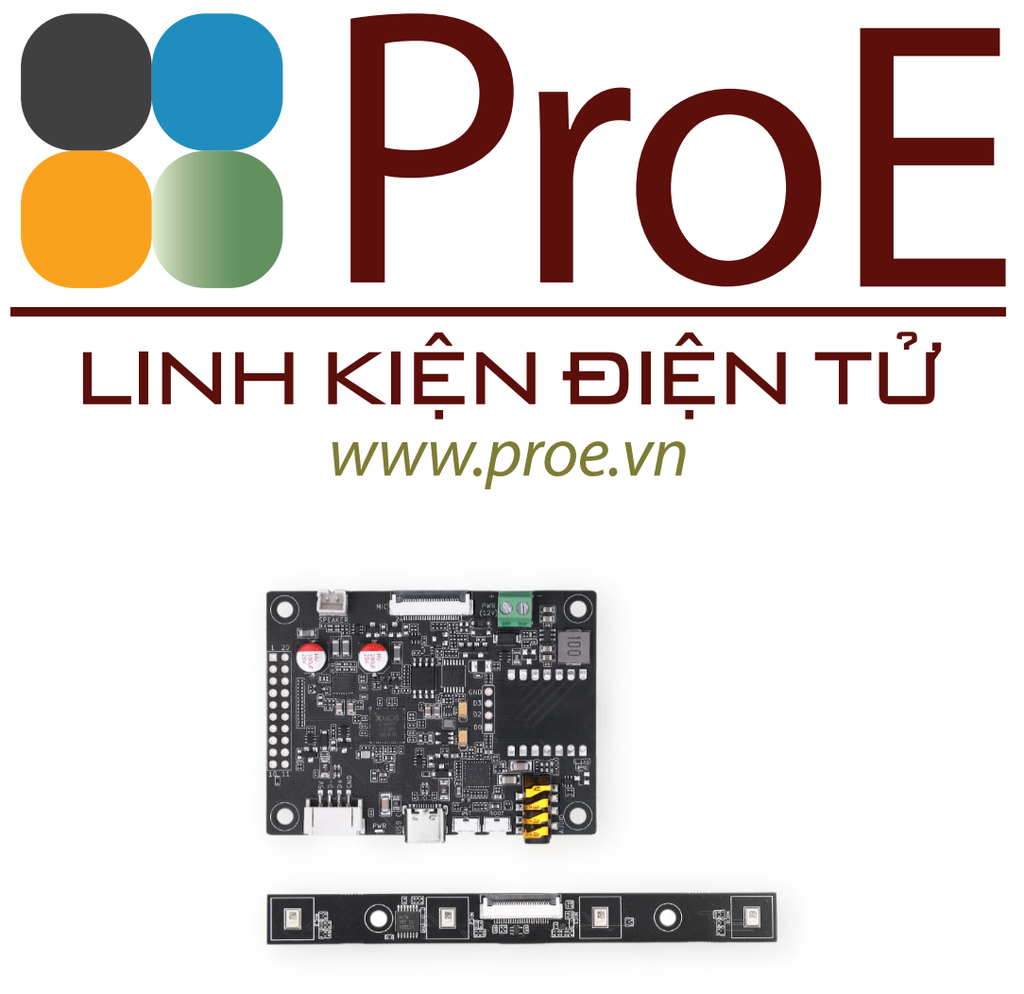

reSpeaker Flex XVF3800 Linear-4 | AI Mic Array for Robotics and Embodied AI

A versatile 4-mic array  for robots and embodied AI applications like smart signage.

Powered by XMOS XVF3800, it features on-board AI acoustic algorithms such as AEC, beamforming, and noise suppression.

With a split design and options for circular or linear mic arrays, it supports both dual modes(I2S/USB), making it the smart ear for embodied AI projects requiring far-field and clear voice capture.

Specification

Core Board

Mic Array Board

Hardware Overview

Application

Application 1: Robotics Integration with reSpeaker Flex

Its compact microphone array can be placed on a robot’s head, ears, forehead, chest, or even externally (e.g., on a robotic arm) to capture sound closer to the source, while the core processing board remains safely inside the device enclosure. Combined with Seeed’s strong customization capabilities, it enables seamless integration into a wide range of robotic platforms, including humanoid robots, desktop robots, companion robots, service robots, and robot pets such as robot dogs.

With support for ROS2, it streamlines system-level communication and development. Powered by the XMOS XVF3800 audio processor, reSpeaker Flex features on-board AI acoustic algorithms such as multi-beamforming and advanced noise suppression, enabling reliable wake word detection, speech-to-text (STT), speech-to-intent, voice command recognition, and other voice AI workflows.

An upgraded design supports a 10W amplifier, enabling strong text-to-speech (TTS) performance and delivering clear, natural voice interaction even in larger spaces.

• Add Voice Interface to LeKiwi Robot with reSpeaker Flex

This project combines a Seeed Studio XIAO ESP32 (motor controller) with a Raspberry Pi (voice processing brain), enhanced by the reSpeaker Flex for high-quality audio capture and Voice Embeddings for smarter, more personalized voice interaction. Using natural language commands, you can drive, steer, and control the robot completely hands-free with improved accuracy and responsiveness.

Application 2: Build Private Secured Smart Toys with reSpeaker Flex for Intuitive Voice Interaction

Its compact and flexible microphone array can be seamlessly embedded into various toy form factors such as plush toys, educational devices, or handheld companions, allowing it to capture user’s voices accurately even in dynamic and noisy environments.

Leveraging the XMOS XVF3800 audio processor, reSpeaker Flex enables more responsive and engaging interactions, from voice-controlled storytelling and learning activities to conversational AI companions.

With support for locally running voice agents, reSpeaker Flex enables on-device processing of voice data, helping safeguard user privacy, especially important for companion toys and child-focused applications.

Application 3: Build Smart Voice Terminals with Seamless and Reliable Interaction

reSpeaker Flex brings reliable and intuitive interaction to self-service kiosks, smart vending machines, and smart digital signage. Its linear microphone array options (100099135, 100026178) are optimized for seamless integration into narrow screen bezels(e.g., screen edges, display frame) and compact enclosures, without compromising acoustic performance.

It delivers advanced noise suppression and directional far-field voice capture (up to 5m), ensuring accurate speech recognition even in acoustically challenging public and larger environments such as malls, transit hubs, and retail spaces. This enables faster, touch-free user interactions and improves overall accessibility.

Application 4: Build Physical AI Voice Agent with reSpeaker Flex

Through SDK and platform compatibility, reSpeaker Flex supports rapid integration with voice AI frameworks and cloud-based services, allowing devices to be quickly transformed into scalable voice agent solutions.

Application 5: Build Smart Voice Assistants Using reSpeaker Flex

Seamlessly integrates with Amazon Alexa, Google Assistant, Home Assistant, and other mainstream voice platforms for far-field voice control and smart home automation.

Application 6: Smart Conference Solutions Using reSpeaker Flex

Compatible with Microsoft Teams, Zoom, and other popular conferencing software via USB. 4-mic array supports beamforming and DoA detection to deliver clear multi-person audio pickup and real-time status feedback.

Application 7: Industrial Voice Control

Designed for demanding environments, reSpeaker Flex enables reliable voice command control across factories, retail, and commercial settings. With advanced noise suppression, it maintains high recognition accuracy even amid machinery noise and complex acoustic conditions, supporting efficient, hands-free operation.

Documents

reSpeaker Flex Flyer - EN

XMOS XVF3800 v3.2.1

reSpeaker Series Flyer - EN

reSpeaker Series Flyer - CN

reSpeaker Flex XVF3800 Circular.step

reSpeaker Flex XVF3800 Linear.step

reSpeaker Flex XVF3800 Core Board.step

Amplifier

Certification

Part List
