Raspberry Pi Touch Display 2

Official Raspberry Pi 7inch Capacitive Touch Display, 720 × 1280, IPS, DSI Interface, 5-Point Touch

Raspberry Pi 7″ Touch Display 2

designed by Raspberry Pi

• Size7″
• Resolution720×1280
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch InterfaceI2C

The display orientation is portrait by default, with 720×1280 resolution (H×V). Change the software config for landscape display.

Product Introduction

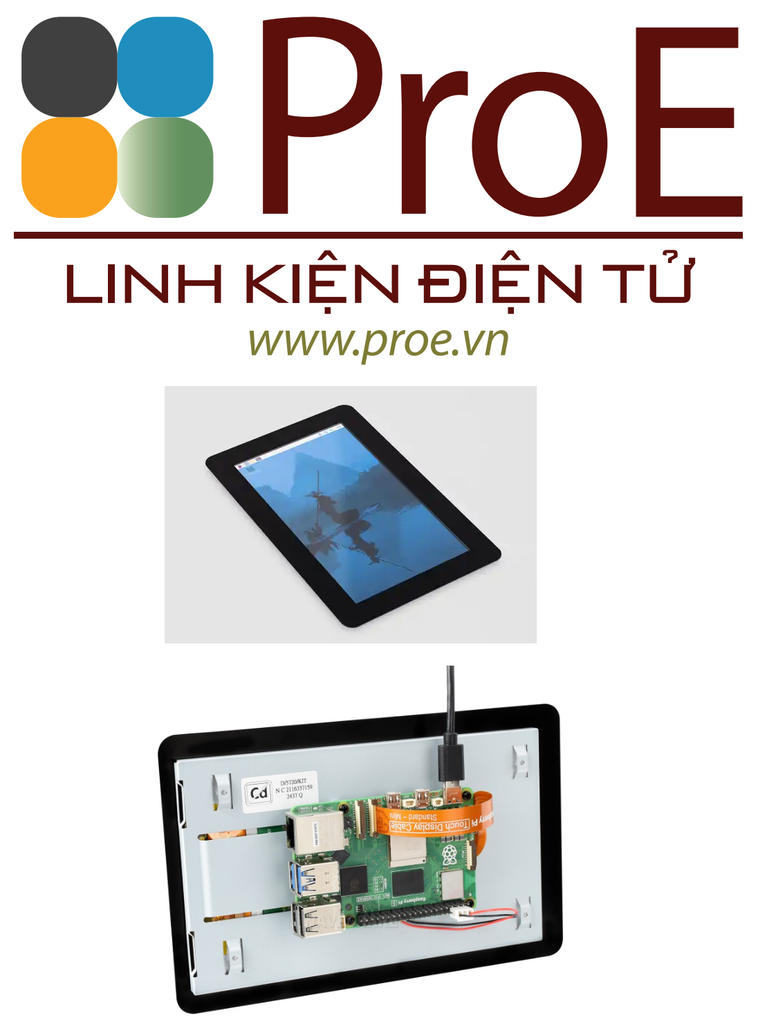

Raspberry Pi Touch Display 2 is a 7″ touchscreen display for Raspberry Pi. It is ideal for interactive projects such as tablets, entertainment systems, and information dashboards.

Raspberry Pi OS provides touchscreen drivers with support for five-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

Only two connections are required to connect the display to your Raspberry Pi: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers.
(Raspberry Pi Zero series is not supported)

* for reference only, the Raspberry Pi board is NOT included.

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 5-point touch, driver free

Connection Examples

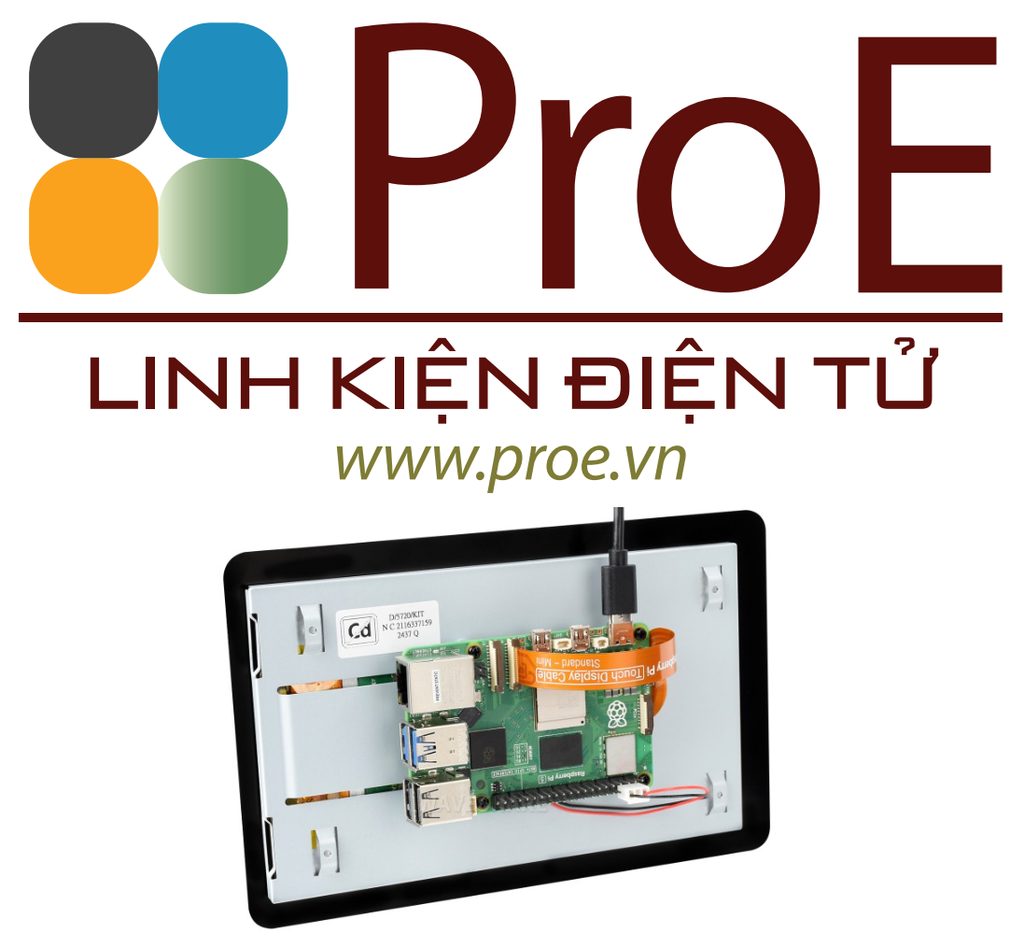

Working with Raspberry Pi 5

Working with Raspberry Pi 4B

How to install

Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin

* for reference only, the Raspberry Pi boards above are NOT included.

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

5-Point Capacitive Touch

up to 5-point touch, depending on the operating system

Interface Introduction

Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Raspberry_Pi_Touch_Display_2
