Raspberry Pi Pico Basic Kit, MicroPython Programming Learning Kit

  • Mã sản phẩm: Raspberry-Pi-Pico-Basic-Kit
  • Nhà sản xuất: Raspberry PI Waveshare
  • Website hỗ trợ: https://www.proe.vn
800.000₫

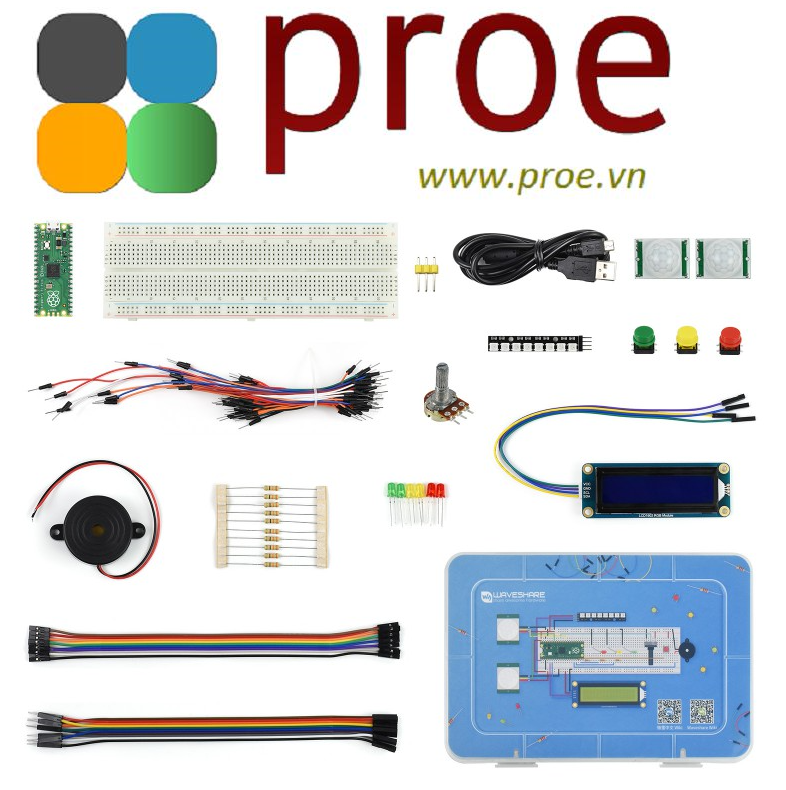

PACKAGE CONTENT

Weight: 0.404 kg

  1. Raspberry Pi Pico with pre-soldered header x1
  2. Breadboard x1
  3. 1*3PIN yellow pin header x1
  4. USB-A to micro-B cable x1
  5. PIR sensor x2
  6. Breadboard wires x1
  7. Single-joint potentiometer x1
  8. 8-Bit WS2812 RGB LED x1
  9. Round button x3
  10. Alarm x1
  11. 330R resistor x10
  12. 5mm LED x6
  13. LCD1602 RGB Module x1
  14. Jumper wire female-female 10PIN x1
  15. Jumper wire male-female 10PIN x1
  16. Plastic storage box x1
Raspberry-Pi-Pico-Basic-Kit

Raspberry Pi Pico Basic Kit, MicroPython Programming Learning Kit

Raspberry Pi Pico Basic Kit

Basic entry-level kit prepared for Pico

Tested And Selected By Professional Engineer, With Rich Tutorials And Resources
Fast Getting Started With Raspberry Pi Pico And MicroPython Programming

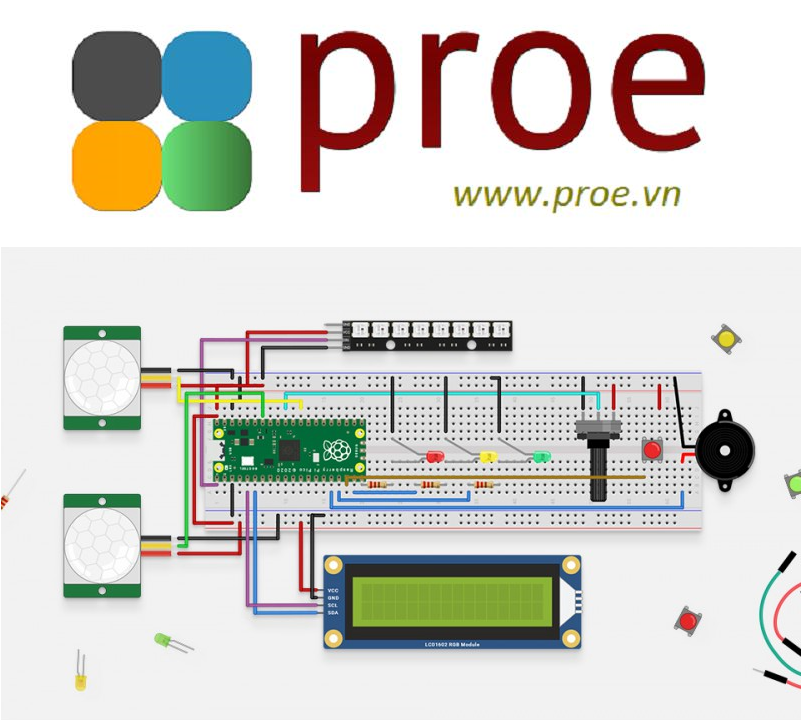

What's In The Kit



Raspberry Pi Pico With Pre-Soldered Header

A Low-Cost, High-Performance Microcontroller Board With Flexible Digital Interfaces




  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 26 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 x12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

ITEM DESCRIPTION

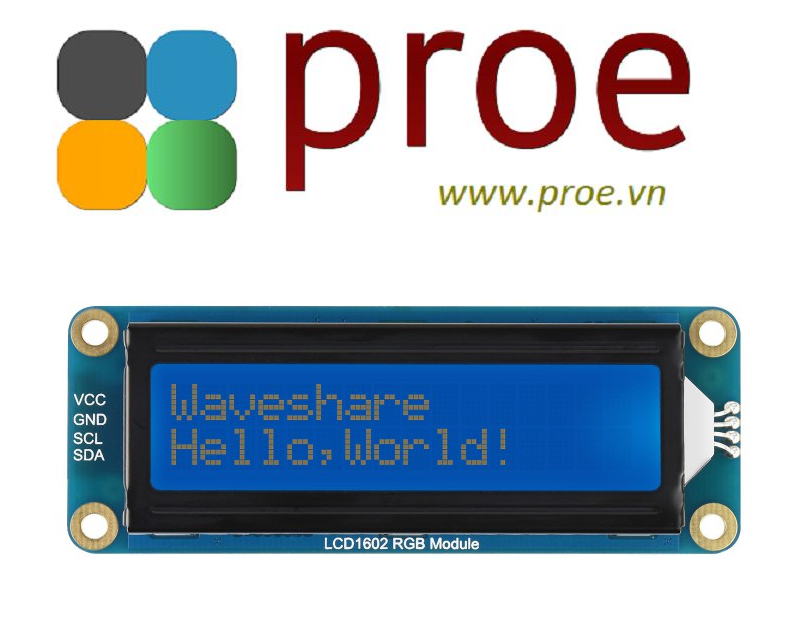

LCD1602 RGB Module LCD1602 RGB backlight character LCD, using I2C bus to display text or adjust RGB backlight
PIR motion sensor Pyroelectric IR sensor, outputs electric switch signal when IR array from human/animal body is detected
8-Bit WS2812 RGB LED 8x RGB LED, play around with cool light effects by programming
Alarm Quality active announciator, used for alarming or playing music
Single-joint potentiometer Adjustable potentiometer, 0~10K range, used for ADC test, volume/brightness adjustment, etc.
Round buttons Three colors, for button/switch detection
5mm LED Three colors, for experiments like traffic light, PWM adjusted light, etc.
330R resistors Providing current-limit protection when connected with LED in series

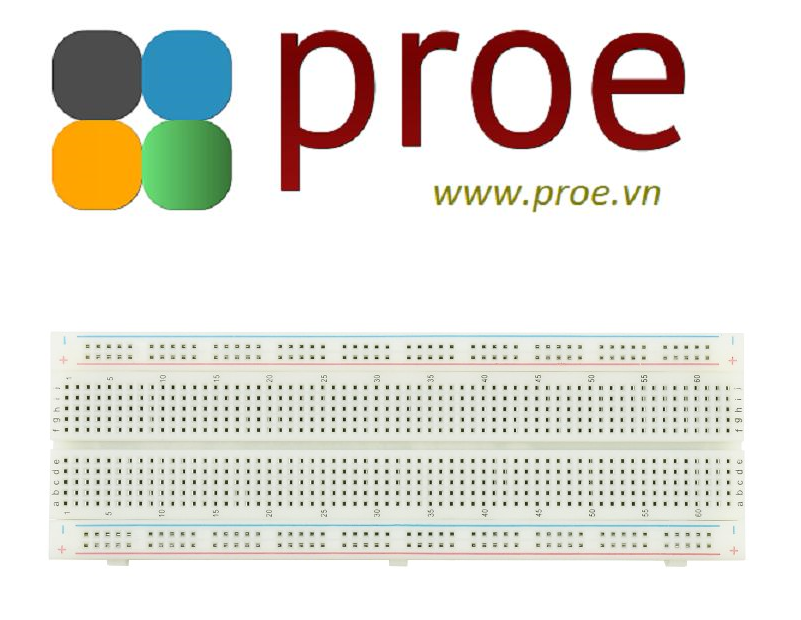

Breadboard and wires
Jumper wires
Quality 830 breadboard and sorts of wires, easy for connecting components
Plastic box Customized box for storing the modules and components

Resources & Services

Wiki: Raspberry_Pi_Pico
