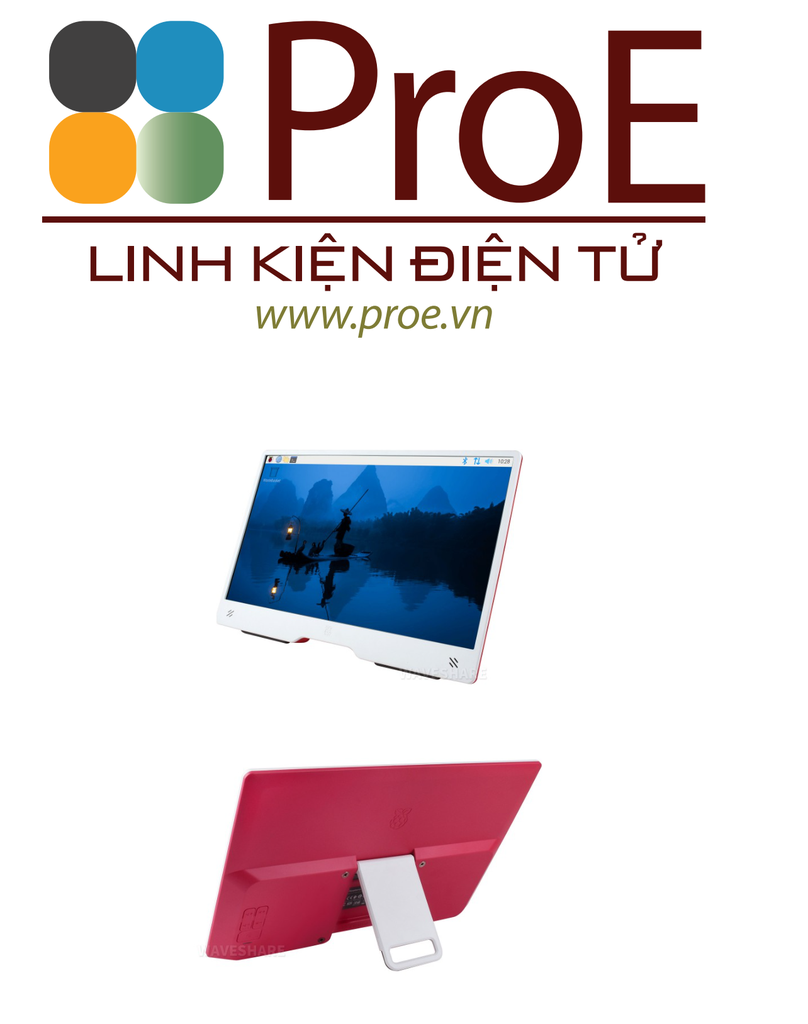

Raspberry Pi Monitor (Red/White)

Package Content

Weight: 1.395 kg

1. Raspberry Pi Monitor (Red/White) x1
2. User manual x1
3. Type-C cable x1

1

2

3

Official Raspberry Pi 15.6inch Monitor, 1920×1080 Resolution, Standard HDMI Port, IPS, VESA Mounting Support, Integrated Angle-adjustable Stand And Speakers

Official Raspberry Pi 15.6inch Monitor

Designed By Raspberry Pi

• Size15.6″
• Resolution1920×1080
• Display Color16.2M
• Display InterfaceHDMI
• Display PanelIPS
• SoundBuilt-in Speaker
• Audio Output3.5mm Jack

Product Features

The Raspberry Pi Monitor is a 15.6inch full HD computer display. User-friendly, versatile, compact and affordable, it is the perfect desktop display companion for both Raspberry Pi computers and other devices.

With built-in audio via two front-facing speakers, and VESA and screw mounting options as well as an integrated angle-adjustable stand, the Raspberry Pi Monitor is ideal for desktop use or for integration into projects and systems. It can be powered directly from a Raspberry Pi, or by a separate power supply.

Key features include:

• 15.6inch full HD 1080p IPS 16:9 display, 1920 × 1080 resolution, with anti-glare coating, 250cd/m² brightness
• Integrated angle-adjustable stand
• 16.2M colour depth
• Standard HDMI port (1.4 compliant), supports full-size HDMI input
• 2 × 1.2W integrated speakers, support for 44.1kHz, 48kHz, and 96kHz sample rates, with 3.5mm stereo headphone jack
• VESA and screw mounting options
• Onboard volume and brightness control buttons
• 1.5A at 5V power input, can be powered directly from a Raspberry Pi USB port (max 60% brightness, 50% volume) or by a separate power supply (max 100% brightness, 100% volume)

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, driver free
Supports Ubuntu / Kali / WIN10 IoT, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Ubuntu, driver free

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

PC

Supports Windows 11 / 10 / 8.1 / 8 / 7, driver free

Powered by Raspberry Pi

The Raspberry Pi Monitor can be powered by your Raspberry Pi or other device via USB, getting you up and running with minimal set up. To harness your monitor’s full potential, pair it with an official Raspberry Pi Power Supply.

Give your room a view

Whether VESA-mounted, free-standing, or hanging on a wall, the Raspberry Pi Monitor is a versatile addition to your home computer setup.

Quick start instructions

• Remove the monitor and cable from the box
• Please read the product information leaflet before using the monitor
• Remove the monitor from its sleeve
• Unclip the stand from the back of the monitor, and rotate it open to reveal the connectors
• Plug in the power and HDMI cables
• Place the monitor on a flat, stable surface, or mount it using the VESA or screw mount attachment points
• Suitable spacers (not supplied) must be used between the monitor and the VESA bracket; make sure you use spacers that are wide enough to allow sufficient space for the power and HDMI cables
• Turn on the computer or power adapter, the monitor will power on

TIPS

• Adjust volume and brightness with the control buttons on the back of the monitor
• Turn the monitor on and off with the power button on the back
• Find your preferred viewing angle by adjusting the integrated stand
• Tidy the cables using the notch at the base of the monitor

Connecting your Raspberry Pi Monitor

Powered from Raspberry Pi
Maximum 60% brightness, 50% volume

Powered by a separate power
Maximum 100% brightness, 100% volume

Dimensions
