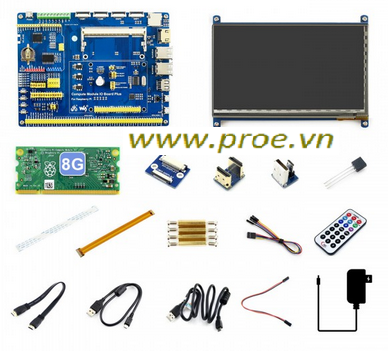

- PACKAGE CONTENT
-
Weight: 0.686 kg
- OPTIONS Compute Module 3+ x1
- Compute Module IO Board Plus x1
- 7inch HDMI LCD (C) x1
- DS18B20 x1
- IR remote controller x1
- LCD adapter x1
- HDMI cable x1
- HDMI adapter x1
- USB adapter x1
- RPi screws pack (4pcs) x1
- 22PIN FFC x1
- RPi Zero V1.3 Camera Cable 15cm x1
- OPTIONS Power adapter 5V/3A micro x1
- USB type A plug to micro B plug cable 35cm x1
- USB type A plug to micro B plug cable 120cm x2
- Jumper Wire 4-pin to separated pins x2
- Jumper Wire 2-pin 2.54-pitch 200mm x2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Raspberry Pi Compute Module 3+/8GB Development Kit Type B, CM3+ IO Board, HDMI LCD, DS18B20, IR Remote Controller
Overview
Since the Raspberry Pi Foundation released the Compute Module 3+, you may have been watching it for some time, don't know how to get started. Now it's time to get moving. We prepare this development kit for you to evaluate the Compute Module 3+ quickly, reducing your development cycle.
The key parts in this Compute Module 3+ development kit includes:

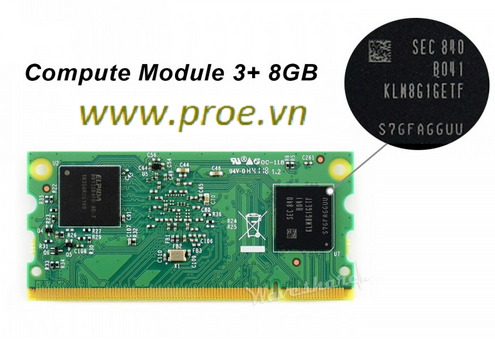

- Compute Module 3+/8GB: Raspberry Pi 3 Model B+ industrial version, the Pi in a flexible form factor, with 8GB eMMC Flash
- Compute Module IO Board Plus: Extend kinds of interfaces from CM3+, such as USB, HDMI, just like the regular Pi, to help evaluating

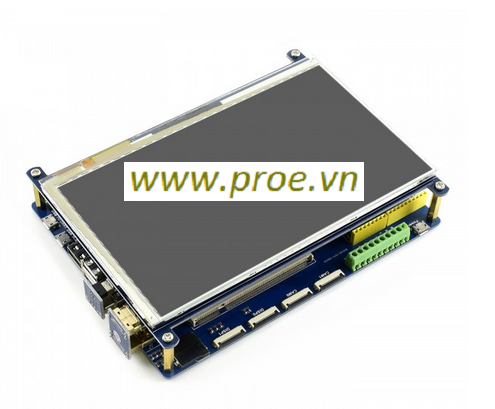

- 7inch HDMI LCD (C): The high resolution touch screen LCD, provides an easy way to achieve Human-Machine-Interaction
CM3+ Features
- Broadcom BCM2837B0
- Cortex-A53 (ARMv8) 64-bit SoC @ 1.2GHz
- 1GB RAM
- eMMC Flash
- 200PIN SODIMM connector (35U hard gold plating I/O pins)
- 48 x GPIO
- 2 x I2C
- 2 x SPI
- 2 x UART
- 2 x SD/SDIO (1x SD has been used for eMMC Flash on non-Lite variants)
- 1 x HDMI 1.3a
- 1 x USB2 HOST/OTG
- 1 x DPI (parallel RGB display)
- 1 x NAND(SMI)
- 1 x 4-lane CSI Camera Interface (up to 1Gbps per lane)
- 1 x 2-lane CSI Camera Interface (up to 1Gbps per lane)
- 1 x 4-lane DSI Display Interface (up to 1Gbps per lane)
- 1 x 2-lane DSI Display Interface (up to 1Gbps per lane)
- Compared to CM1, the CM3+ supports more OS, like Windows 10 (the free IOT-specific version from Microsoft)
7inch HDMI LCD (C) Features
- 7inch IPS screen, 1024x600 hardware resolution
- Capacitive touch control
- Supports popular mini PCs such as Raspberry Pi, BB Black, as well as general desktop computers
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
- Backlight can be turned off to lower power consumption
Compute Module IO Board Plus Features
- Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
- Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
- Arduino connectivity, also supports Arduino shields
- 1-WIRE interface, for connecting single-bus devices like DS18B20
- 4x keys, 4x LEDs, 1x Buzzer, for I/O testing
- Onboard USB HUB, allows connecting more USB devices
- IR receiver, IR remote control is available
- Onboard USB TO UART, for serial debugging
- Sensor interface
- 10-bit ADC, 38KSPS, 11-ch (6-ch for Arduino interface, 5-ch for sensors)
- 16-bit DAC, 2-ch
- Onboard RTC, one of the most common and useful functions

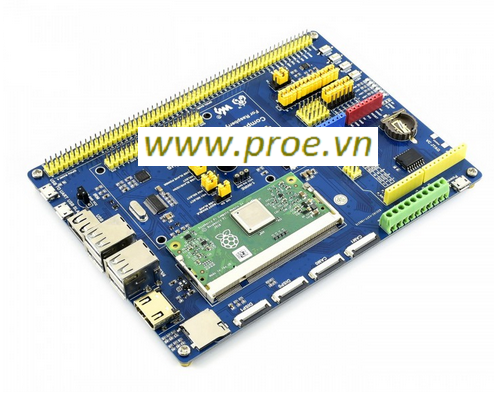

What's on the Compute Module IO Board Plus
- Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L)
- Compute Module GPIO header: breakout all the Compute Module pins
- Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
- CSI interface: camera ports, for connecting Raspberry Pi Camera
- DSI interface: display ports, for connecting Raspberry Pi LCD
- HDMI port
- USB ports: for connecting USB devices
- USB SLAVE interface: allows you to burn system image in to Compute Module 3/3+
- USB TO UART interface: for serial debugging
- Arduino header: for connecting Arduino shields
- AD/DA input/output screw terminals
- 1-WIRE interface: for connecting single-bus devices like DS18B20
- Sensor interface
- Power port: 5V 2.5A
- FE1.1S: USB HUB chip
- 12MHz crystal
- CP2102: USB TO UART converter
- Micro SD card slot: insert a Micro SD card with pre-burnt system, to start up Compute Module 3/3+ Lite variant
- TLC1543: AD converter
- DAC8552: 16-bit DAC, 2-ch
- DS3231: high-precision RTC chip, I2C interface
- RTC battery holder: supports CR1220 batteries
- Voltage regulator: 3.3V / 2.5V / 1.8V
- LFN0038K: IR receiver
- Buzzer
- Power indicator
- ACT indicator: indicating the Micro SD card status
- User LEDs
- User Keys
- BOOT selection
- EN: enable the PC to access SD card/eMMC through USB SLAVE
- DIS: the Compute Module will boot from SD card/eMMC
- VGx power selection: config the I/O level
- USB HUB enable jumper: HUB enable and USB SLAVE power selection
- ADC/DAC configuration: config the power supply and reference voltage of ADC/DAC
- Peripheral configuration: config the control pins of UART, user keys, user LEDs, 1-WIRE interface, IR receiver, and buzzer
- Arduino AD selection
- connect 1 and 2: Arduino A0-A5 as digital control pin
- connect 2 and 3: Arduino A0-A5 as AD input
