POD 2.8inch Resistive Touch Display Module

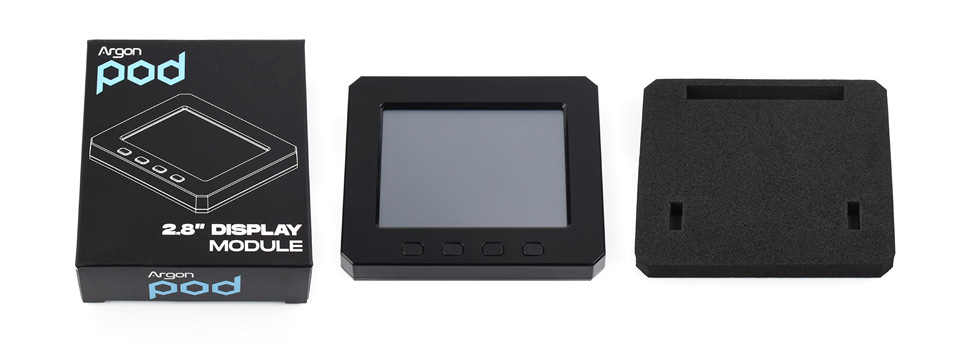

PACKAGE CONTENT

Weight: 0.078 kg

POD 2.8inch Resistive Touch Display Module x1

Raspberry Pi 2.8inch LCD Expansion Module, 240 × 320 Resistive Touch Screen For Raspberry Pi Zero / Zero 2 W Series Boards, Works With Other POD Modules

2.8inch LCD Display Module

Designed for Raspberry Pi

The POD 2.8inch Resistive Touch Display Module Is The 2.8inch LCD Expansion Module Designed For The Raspberry Pi Zero 2 W.

Features At A Glance

• Onboard 2.8inch resistive touch LCD display with 240×320 resolution
• 4x user buttons for user-defined functions
• Onboard 40PIN GPIO header, for connecting with other POD modules or Raspberry Pi boards
• Nice looking ABS case, continues the design style of the POD series, with 2.8inch screen window on the front and the matte finish bottom
• This module is designed for Pi Zero 2 W, and is also suitable for other Raspberry Pi boards

2.8inch Resistive Touch Display

240×320 Resolution

OnBoard Resources

4x User Buttons And 40PIN Header

More Expandability, More Possibilities

Combined With Other POD Series Modules To Expand More Functions

for reference only, POD HDMI/USB expansion module, Zero POD case, and POD LAN module are not included.

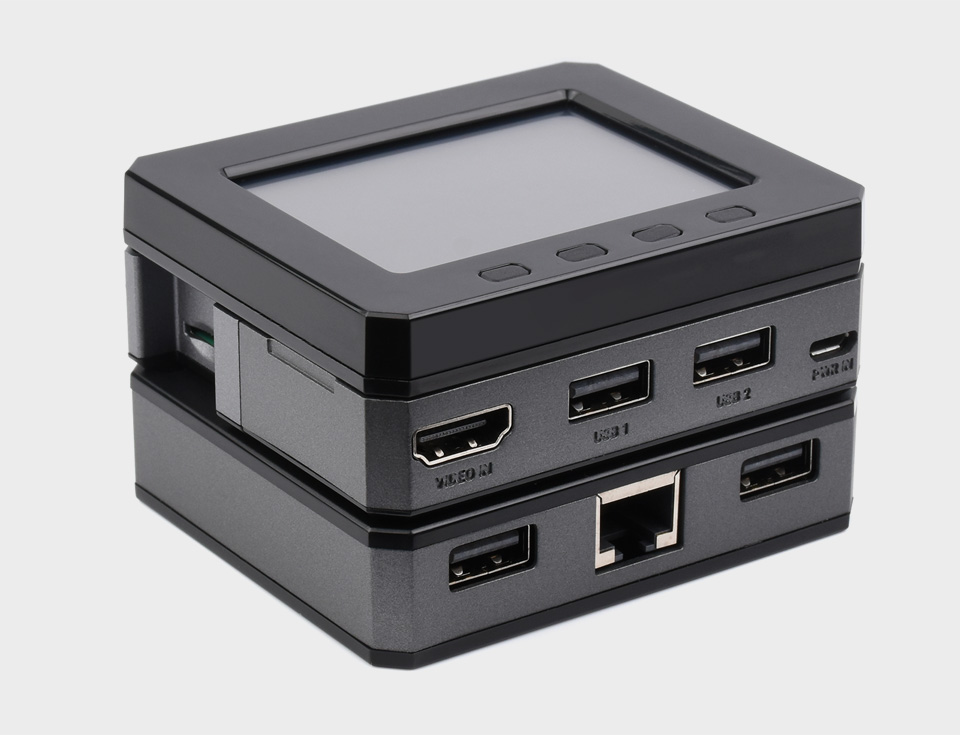

POD Modules Combination Example

Pin Definition

* the pins definition of the LCD display is not shown in the above

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/POD_2.8inch_Resistive _Touch_Display_Module
