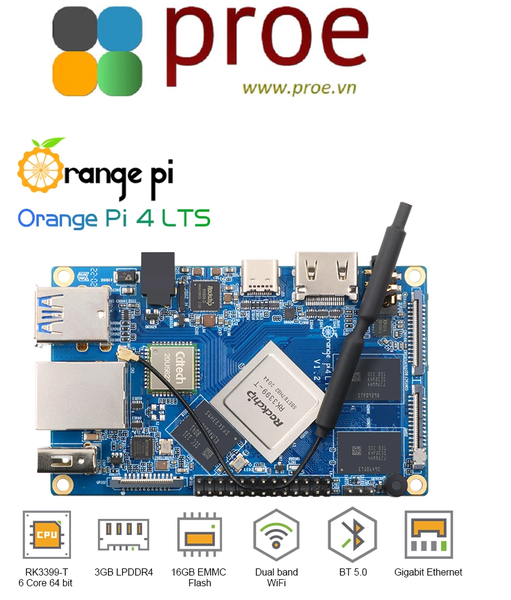

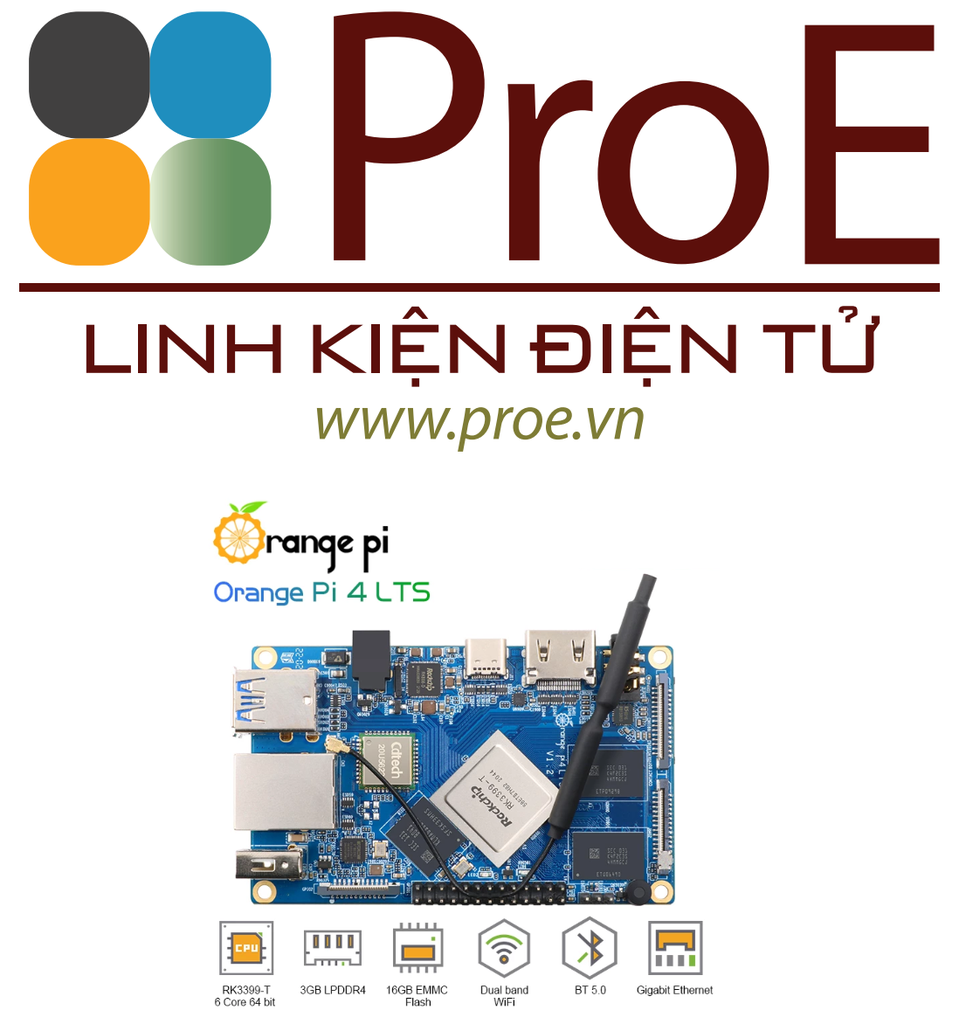

Orange Pi 4 LTS 4GB RAM 16GB EMMC

  • Mã sản phẩm: Orange Pi 4 LTS 4GB RAM 16GB EMMC
  • Nhà sản xuất: OrangePi
  • Website hỗ trợ: https://www.proe.vn
2.500.000₫

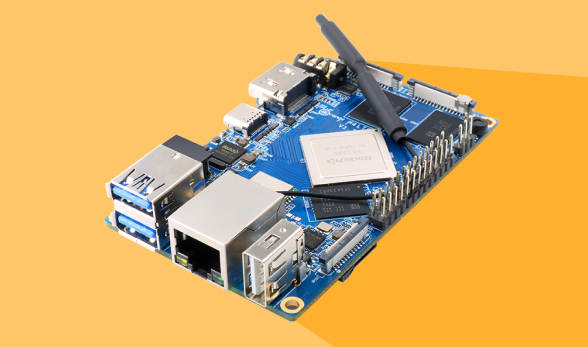

Orange Pi 4 LTS

Orange Pi 4 LTS is an open-source single board computer with dual-band wireless WiFi and Bluetooth 5.0 .It is highly compact with a dimension of 56X91mm.

Product introduction

  • Rockchip RK3399

  • 3GB/4GB LPDDR4 SDRAM

  • 16GB EMMC Flash(optional)

  • Multiple operating systems

  • HDMI output

  • USB3.0 Type-C/Power port(5V/4A)

  • USB3.0/USB2.0 interface

  • 26pin headers

Orange Pi 4 LTS uses the Rockchip RK3399(28nm HKMG Process), and has 3 GB /4GB LPDDR4 SDRAM, 16GB EMMC Flash(option). It can run Android 8.1,Ubuntu16.04,Ubuntu18.04,Debian9. Orange Pi 4 LTS offers a range of different ports, including HDMI output, 26pin headers, LCD connector, Gbps Ethernet port, 2*USB 2.0, 1*USB 3.0, 1*USB 3.0 TYPE-C, mini PCIE connector etc. It is powered through DC and Type-C. It is a good choice for applications that need strong networking perfomance.

Orange Pi 4 LTS is for anyone who wants to start creating with technology- not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.

  • Rockchip RK3399 SoC,powerful performance

  • 3GB /4GB LPDDR4

    3GB /4GB LPDDR4, sufficient for running various applications, smooth & elegant.

  • WiFi+Bluetooth

    Dual-band wireless WiFi+Bluetooth 5.0, enjoy wonderful network anytime and anywhere

  • Rich ports with powerful performance

    MIPI-CSI camera interface, USB Type-C port, HDMI 2.0 port,etc.

Orange Pi 4 VS Orange Pi 4 LTS

Model

Orange Pi 4

Orange Pi 4 LTS

Hardware features

SOC

Rockchip RK3399

Rockchip RK3399

CPU architecture

Cortex-A72+Cortex™-A53

Cortex-A72+Cortex™-A53

CPU frequency

1.8GHz

1.8GHz

Onboard Storage

16GB EMMC Flash

16GB EMMC Flash(option)

Core number

6

6

Memory bus

LPDDR4

LPDDR4

Memory

Dual 4GB

4GB

WiFi+BT

WiFi+BT5.0(AP6256)

WiFi+BT5.0(CDW.20U5622-00)

Onboard Network

10M/100M/1000M Ethernet (Realtek RTL8211E)

10M/100M/1000M Ethernet (YT8531C )

USB

2*USB2.0+1*USB3.0 +1*USB3.0 Type-C

2*USB2.0+1*USB3.0 +1*USB3.0 Type-C

Debug UART

3Pin

3Pin

PCIE

Surpport Mini PCIE Port

Surpport Mini PCIE Port

GPIO

GPIO1 40Pin

26Pin

PCB size

56X91mm

56X91mm

Power interface

DC 5V/3A,TYPE-C 5V/3A

DC 5V/3A,DC 5V/4A Type-C 5V/4A

PMU

Yes

Yes

MIC

Yes

Yes

Software features

OS

Android,Ubuntu,Debian

Android,Ubuntu,Debian

OrangePi 4 VS OrangePi 4 LTS (4GB)

Hardware specification

SOC Rockchip RK3399 (4GB)
Rockchip RK3399-T(3GB)
CPU • Based on the large and small size of big.LITTLE core architecture:Dual-core Cortex-A72 (large core)+ Quad-core Cortex-A53(small core)
• 6-core ARMR64-bit processor ,main frequency speeds up to 1.6GHz(3GB)/1.8 GHz(4GB)
GPU • High-performance Multi-core Mali-T860 GPU
• Supports OpenGL ES1.1/2.0/3.0/3.1,OpenVG1.1,OpenCL,DX11
• Support for AFBC
PMU RK808 PMU
Memory 3 GB /4GB LPDDR4
Onboard Storage • 16GB EMMC Flash (option)
• MicroSD (TF) Card Slot
Onboard Ethernet Support 10/100M/1000M Ethernet (YT8531C)
Onboard WiFi+BT • CDW.20U5622-00
• Support IEEE 802.11 a/b/g/n/ac, 2T2R • Support BT 5.0
Video • HDMI 2.0,Supports 4K@60fps output
• 1* DP 1.2(Display Port), Supports 4K@60fps output
• Supports Dual MIPl-DSI ( 4 lines Per Channel )
Audio • Output: 3.5mm Jack and HDMI2.0a
• lnput: MIC
Camera 2 * MIPI-CSl Camera Connector (MIPI_RXO、MIPI_TX1/RX1)
USB 2 * USB2.0 ,1*USB3.0,1 * USB3.0 Type-C
Debug UART 3 Pin
GPIO 26 Pin
PCIe Support Mini PCIe port
Key Upgrade Key & Reset Key
Power Supply DC 5V/3A or 5V/4A, TYPE-C 5V/4A
LED Power led & Status led
Supported OS Android, Ubuntu, Debian

Appearance specification introduction

Dimension 56mm*91mm
Weight 49g

Top view



Bottom view



Orange Pi 4 LTS v1.2 pin definition

  • Completely open source maker artifact

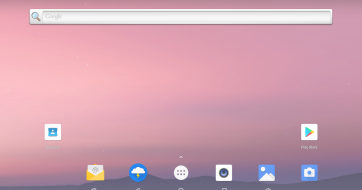

    • Orange Pi 4 LTS runs Android

    • Orange Pi 4 LTS runs Ubuntu

    • Orange Pi 4 LTS runs Debian

Product display

  • Front

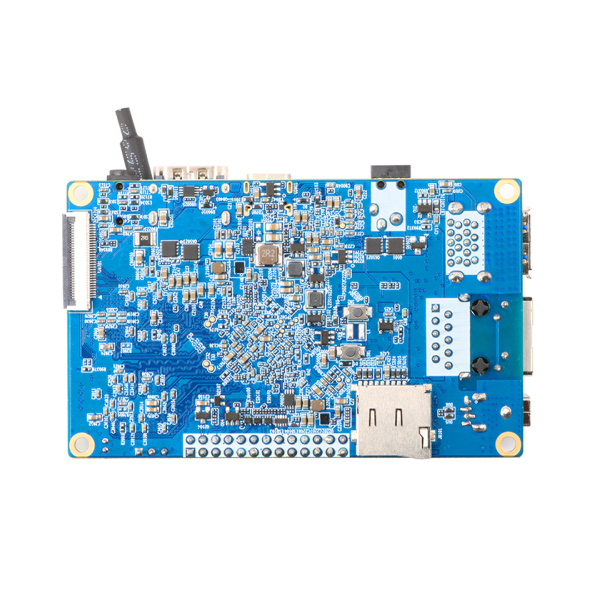

  • Back

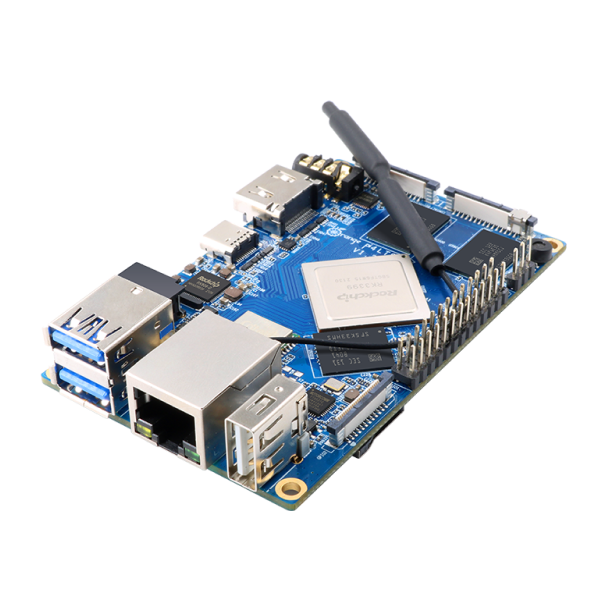

  • 45° angle

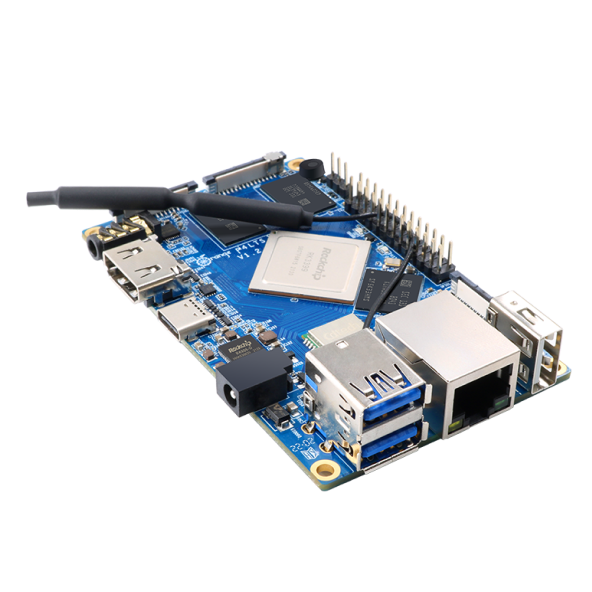

  • 45° angle

What can l do with Orange Pi 4 LTS?

You can use it to build-…

A computer

A speaker

Android

Scratch

Music and sounds

A wireless server

Games

HD video
