- PACKAGE CONTENT
-
Weight: 0.744 kg
The "Standard Package" and "Accessory Boards Package" below are included.
Standard Package
- Open746I-C development board x 1
- USB type A plug to micro B plug cable x 1
- USB type A receptacle to micro B plug cable x 1
- 4-pin 2-pin wires pack x 1
- 5V power adapter x 1
- User Guide CD x 1
1
2
3
4
5
6

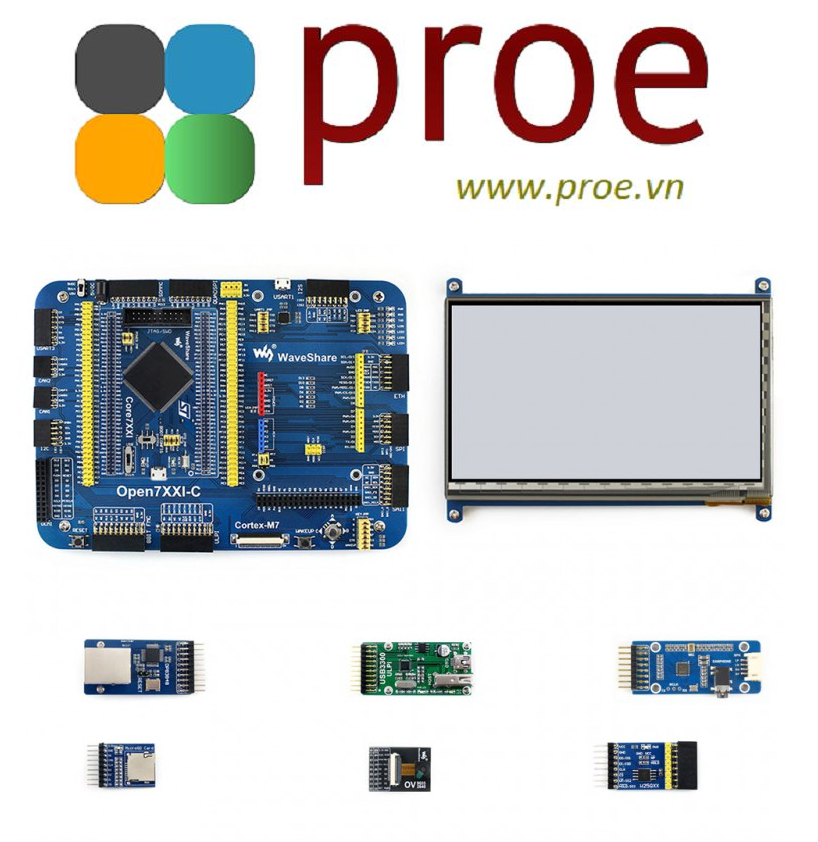

Accessory Boards Package
- 7inch Capacitive Touch LCD (F) x 1
- DP83848 Ethernet Board x 1
- USB3300 USB HS Board x 1
- WM8960 Audio Board x 1
- Micro SD Storage Board x 1
- OV2640 Camera Board x 1
- W25QXX DataFlash Board x 1
- USB type A plug to mini-B plug cable x 1
- USB type A receptacle to mini-B plug cable x 1
- Ethernet Cable x 1
- 40-pin FFC × 1
- 7inch LCD screws pack x 1
1
2
3
4
5
6
7
8
9
10
11
12
STM32 Development Board Designed For STM32F746I, Features The STM32F746IGT6 MCU, And Integrates Various Standard Interfaces, Pretty Easy For Peripheral Expansions.
Overview
Open746I-C is an STM32 development board designed for the STM32F746IGT6 microcontroller, consists of the mother board and the MCU core board Core746I.
The Open746I-C supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with STM32 series microcontrollers.
What's on the mother board
- MCU core board connector: for easily connecting the Core746I
- Arduino interface: for connecting Arduino shields
- DCMI interface: for connecting camera
- 8-bit FMC interface: easily connects to peripherals such as NandFlash
- ULPI interface: for connecting high-speed USB peripheral (the STM32F746I integrates USB HS controller without any PHY device)
- LCD interface 1: for connecting 10.1inch LCD, 7inch LCD
- LCD interface 2: for connecting 4.3inch LCD
- SAI1 interface: for connecting audio modules
- ICSP interface: Arduino ICSP
- SPI1/SPI2 interfaces:
- easily connects to SPI peripherals such as DataFlash (AT45DBxx, W25QXX), SD card, MP3 module, etc.
- easily connects to AD/DA modules (SPI1 features AD/DA alternative function)
- Ethernet interface: for connecting Ethernet modules
- I2S2/I2S3/I2C1 interface: easily connects to I2S peripherals such as audio module, etc.
- USART1 connector: USB to UASRT via the onboard convertor CP2102
- QUADSPI interface: 4-wires SPI interface (the F7 series latest peripheral interface), for connecting serial Flash modules like W25QXX Board
- SDMMC interface: for connecting Micro SD module, features much faster access speed rather than SPI
- USART3 interface: easily connects to RS232, RS485, USB TO 232, etc.
- CAN2 interface: for connecting CAN modules
- CAN1 interface: for connecting CAN modules
- I2C1/I2C4 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), 10 DOF IMU Sensor, etc.
- MCU pins connector: all the MCU I/O ports are accessible on expansion connectors for further expansion
- 5V DC jack
- 5V/3.3V power input/output: usually used as power output, also common-grounding with other user board
- Power supply switch: powered from 5VDC OR USB connection of the USART1
- CP2102: USB to UART convertor
- LEDs: convenient for indicating I/O status and/or program running state
- Joystick: five positions
- WAKE UP button: used as regular button, and/or wake up the STM32 MCU from sleep
- Reset button
- USART1 jumper
- LED jumper
- short the jumper to connect to default I/Os used in example code
- open the jumper to connect to custom I/Os via jumper wires
- KEY jumper
- short the jumper to connect to default I/Os used in example code
- open the jumper to connect to custom I/Os via jumper wires
- Arduino jumper
- short the upper pins, A4, A5 is used as AD function
- short the lower pins, A4, A5 is used as I2C function
What's on the Core746I
- STM32F746IGT6:the high performance STM32 MCU which features:
- Core: Cortex-M7 32-bit RISC + FPU + Chrom-ART graphic accelerator
- Feature: single-cycle DSP instructions
- Operating Frequency: 216MHz, 462 DMIPS/2.14 DMIPS/MHz
- Operating Voltage: 1.7V-3.6V
- Package: LQFP176
- Memories: 1024kB Flash, 320+16+4kB SRAM
- MCU communication Interfaces:
- 6 x SPI, 4 x USART, 4 x UART, 3 x I2S, 4 x I2C
- 2 x CAN, 1 x QUAD-SPI, 1 x DCMI, 2 x SAI
- 1 x FMC, 1 x SDMMC, 14 x TIM , 1xLPTIM
- 1 xLCD-TFT, 1xSPDIFRX, 1xHDMI-CEC
- 1 x USB 2.0 OTG FS
- 1 x USB 2.0 OTG HS (supports external HS PHY through ULPI)
- 1 x 10/100 Ethernet MAC
- AD & DA converters: 3 x AD (12-bit); 2 x DA (12-bit)
- Debugging/Programming: supports JTAG/SWD interfaces, supports IAP
- IC42S16400J / IS42S16400J: SDRAM 1 Meg Bits x 16 Bits x 4 Banks (64-MBIT)
- MIC2075: onboard USB power management device
- AMS1117-3.3: 3.3V voltage regulator
- 8M crystal
- 32.768K crystal, for internal RTC with calibration
- Reset button
- VBUS LED
- Power indicator
- Power supply switch, powered from 5Vin or USB connection
- Boot mode selection, for configuring BOOT0 pin
- JTAG/SWD interface: for debugging/programming
- USB connector, supports Device and/or Host
- MCU pins expander, VCC, GND and all the I/O pins are accessible on expansion connectors for further expansion
- Power jumper
- VBAT: short the jumper to use system power supply, open it to connect external power, such as battery
- VREF: short the jumper to connect VREF+ to VCC, open it to connect VREF+ to other custom pin via jumper wire
- OTG jumper
- short the jumper when using USB OTG/HOST
- open the jumper to disconnect from related I/O port
Photos

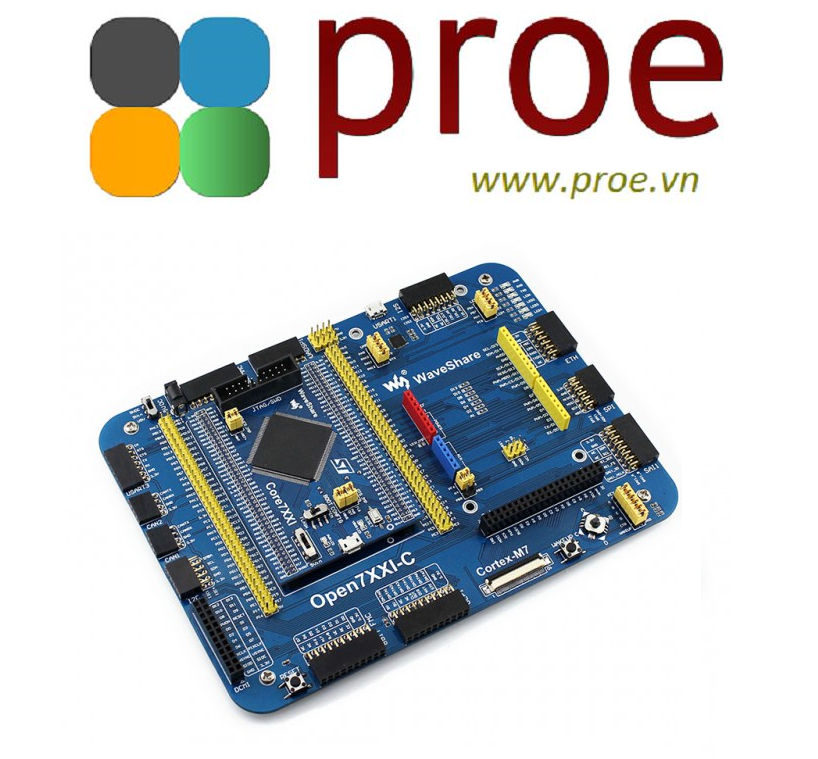

Open746I-C development board
Open746I-C development board back view
Open746I-C mother board
Open746I-C mother board
STM32 Cortex-M7 MCU board
Connecting to various peripherals
Connecting to various peripherals
Connecting to USB device via convertor cable
4.3inch lcd emWin demo1
4.3inch lcd emWin demo2
4.3inch lcd emWin demo3
4.3inch lcd emWin demo4
7inch lcd emWin demo1
7inch lcd emWin demo2
7inch lcd emWin demo3
7inch lcd emWin demo4
Connecting to USB3300 USB HS Board
Connecting to OV2640 Camera Board
Connecting to NandFlash Board
Connecting to RS232 Board
Connecting to RS485 Board
Connecting to CAN Board
Connecting to 8 Push Buttons
Connecting to 5 IO Keypad
Connecting to AD Keypad
Test Board on the AD/DA port
Connecting to FRAM Board
Multi I2C peripheral Module connected to the I2C bus
Connecting to Micro SD Storage Board
Connecting to DataFlash Board
Connecting to NRF24L01 RF Board
Connecting to Ethernet Board
Connecting to VS1003B MP3 Board
Connecting to audio Board
Connecting to VGA PS2 Board
Connecting to any accessory board you need
Note:
The Modules in the photos are for reference only.
The Open746I-C does NOT integrate any debugging function, a debugger is required.
JTAG/SWD interfaces
The figure 1, and 2 show the header pinouts of JTAG/SWD interface
Figure 1. JTAG Header Pinout
Figure 2. SWD Header Pinout
Development Resources
- Schematic
- Demo code (examples in C, FreeRTOS, μC/OS-III)
- STM32 development software (KEIL, STM32CubeMX, etc.)
- STM32 datasheets
- STM32 development documentations
Wiki: www.waveshare.com/wiki/Open746I-C
