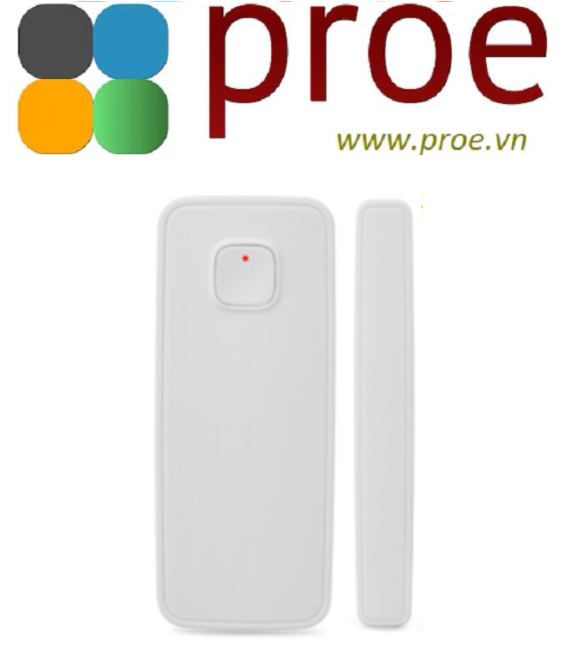

NDS01 NB-IoT Door Sensor

• DataSheet, Document Base

The Dragino NDS01 is a NB-IOT Door Sensor for Internet of Things solution. It is used to detect the open/close event for door and uplink the event to IoT server via NB-IoT network.

Besides open/close event, NDS01 also has an internal temperature and humidity sensor which can detect the temperature and humidity inside the sensor*.

NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage.

NDS01 is powered by 2 x AAA batteries for long term use.

*The measured temperature is 2~3 degree higher than the actually environment temperature out of NDS01.

 Features:

• NB-IoT Bands: B1/B3/B5/B8/B20/B28 @H-FDD
• Ultra low power consumption
• Door Open / Close Detect
• Device remove alarm
• Uplink Protocol: TCP or UDP
• Uplink on periodically
• Micro SIM card slot for NB-IoT SIM
• 2 x AAA LR03 Batteries

Applications:

• Smart Buildings & Home Automation
• Logistics and Supply Chain Management
• Smart Cities
• Smart Factory

Specifications:

Common DC Characteristics:

• • Supply Voltage: 2.1v ~ 3.6v
  • Operating Temperature: -10 ~ 50°C

NB-IoT Spec:

• • - B1 @H-FDD: 2100MHz
  • - B3 @H-FDD: 1800MHz
  • - B8 @H-FDD: 900MHz
  • - B5 @H-FDD: 850MHz
  • - B20 @H-FDD: 800MHz
  • - B28 @H-FDD: 700MHz

Power Consumption:

• •  IDEL Mode: 10uA @ 3.3v
  • Max transmit power: < 500mA@3.3v
