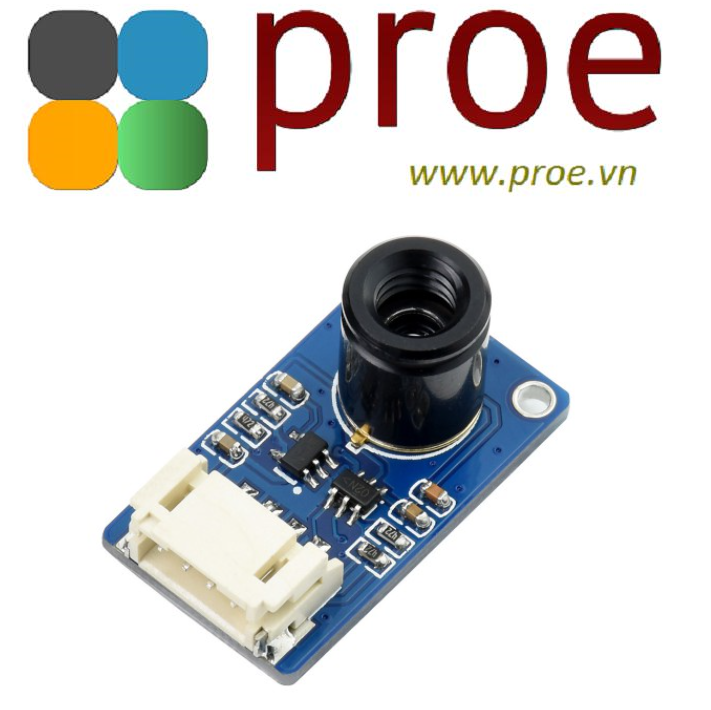

MLX90641 IR Array Thermal Imaging Camera, 16×12 Pixels, 55° Field Of View, I2C Interface
IR Array Thermal Imaging Camera
MLX90641, 16×12 IR Array
Small Size, Non-Contact, Low Cost
Features At A Glance
The MLX90641-D55 Thermal Camera is a small size, non-contact, and low cost IR array thermal imaging camera, with 16×12 pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
Typical applications:
Specifications
OPERATING VOLTAGE | 3.3V/5V | CURRENT | ≈12mA |
---|---|---|---|
FIELD OF VIEW (FOV) | 55° × 35° | ABSOLUTE ACCURACY | ±2℃ (ambient temp. 0 ~ 50℃) |
COMMUNICATION BUS | I2C (0x33 by default) | REFRESH RATE | 0.5~64Hz (0.25~32FPS) |
TARGET TEMPERATURE RANGE | -40 ~ 300℃ | OPERATING TEMPERATURE | -40 ~ 125℃ |
DIMENSIONS | 28 × 16mm | MOUNTING HOLE SIZE | 2.0mm |

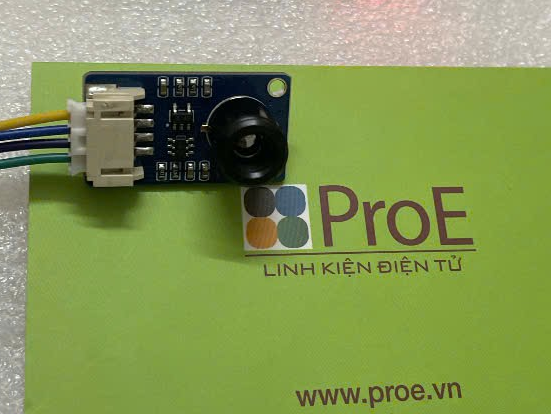

I2C Control Interface
Supports Host Boards Including Raspberry Pi/Arduino(ESP32)/STM32...

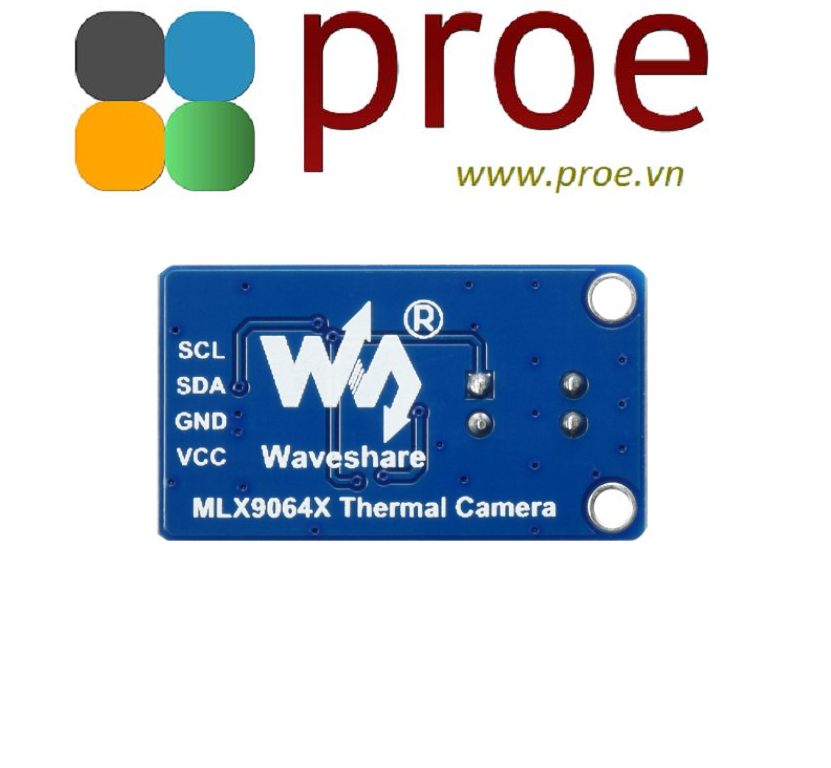

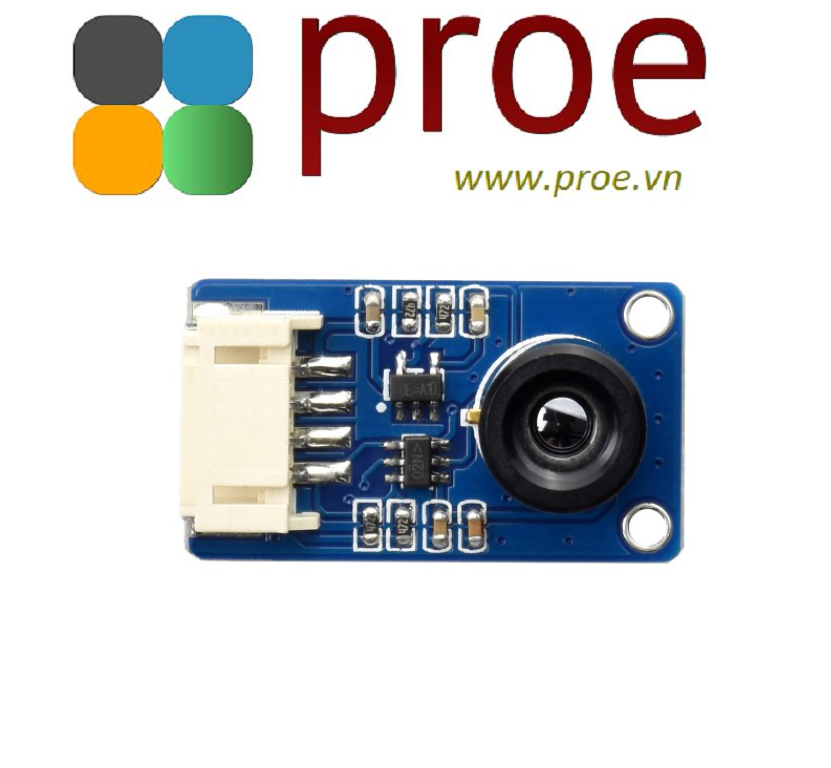

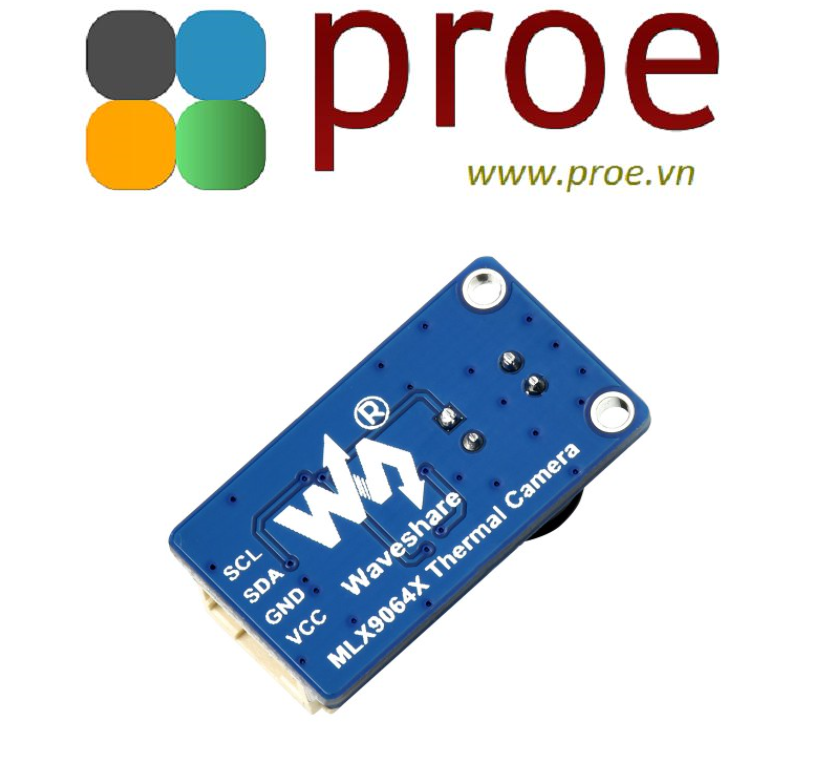

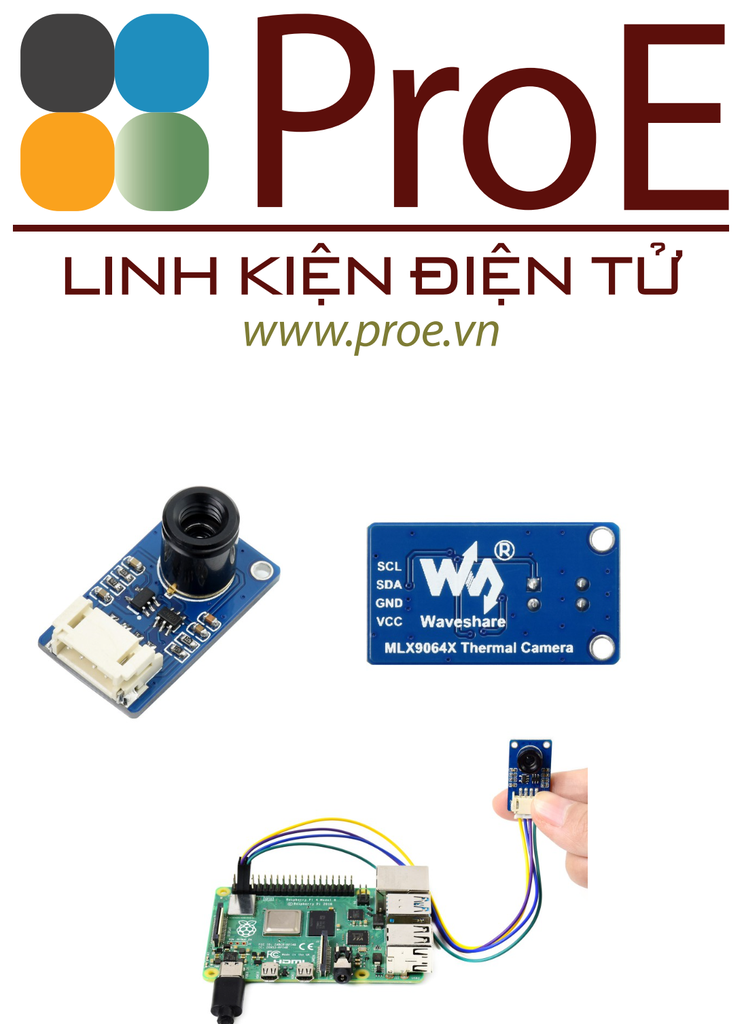

VCC | 3.3V/5V power input |
GND | GND |
SDA | connects to MCU I2C data pin |
SCL | connects to MCU I2C clock pin |

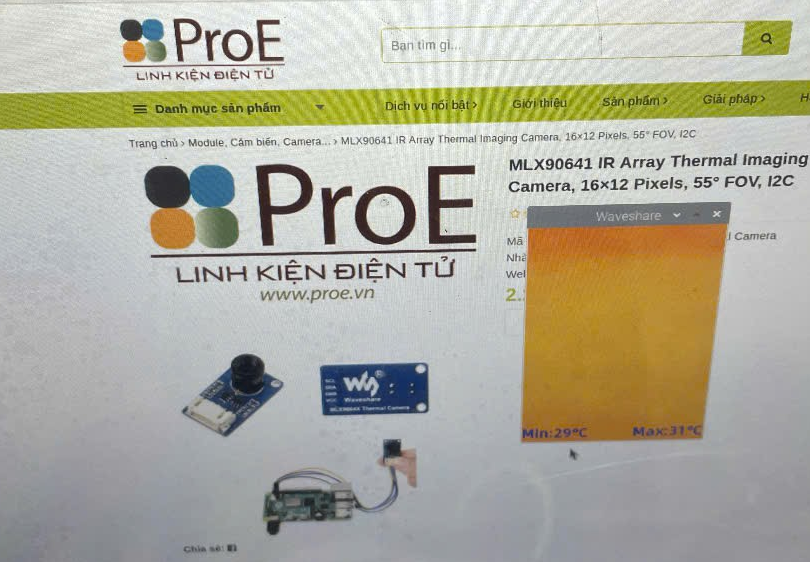

Demonstration

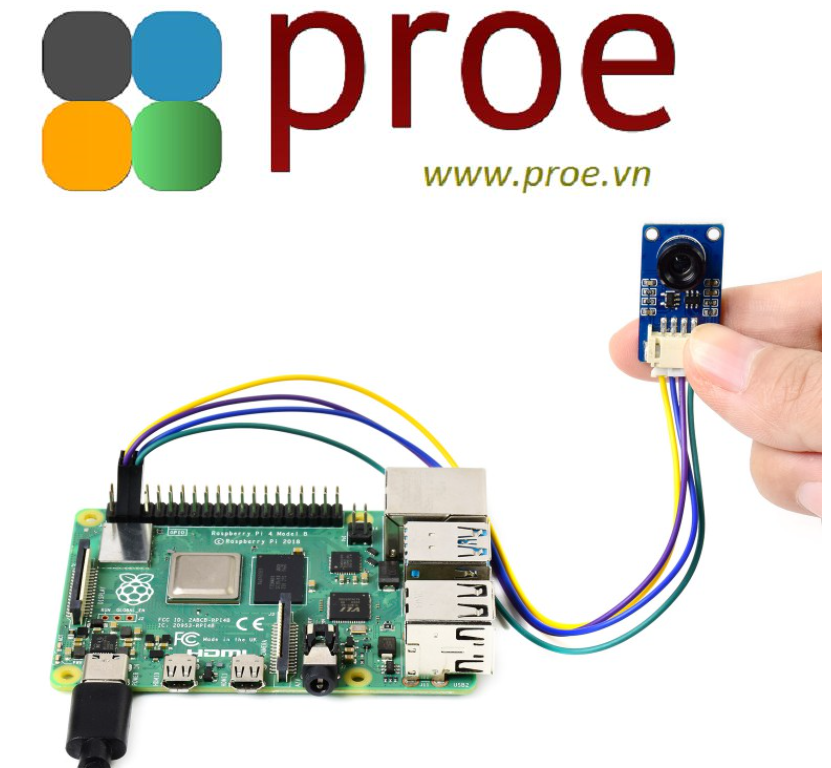

for reference ONLY, Raspberry Pi is NOT included.
Outline Dimensions
Resources & Services
WIKI: MLX90641-D55_Thermal_Camera
