Màn LCD 5 Inch, cảm ứng điện trở WaveShare (B)

Weight: 0.198 kg

1. 5inch HDMI LCD (B) x 1
2. HDMI cable x 1
3. Touch pen x 1
4. USB type A plug to micro B plug cable x 1
5. RPi LCD screws pack (4pcs) x 1
6. DVD × 1

5 inch Resistive Touch Screen LCD, HDMI interface, supports various systems

Features

• 800×480 high resolution
• Resistive touch control
• Supports Raspberry Pi
• Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
• Supports BB Black, comes with Angstrom image
• For other mini-PCs, driver is required and should be developed by users
• Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
• HDMI interface for displaying, USB interface for touch control
• Backlight can be turned off to lower power consumption

Note: to use the LCD with following mini-PCs, additional cables are required and should be purchased separately:
Raspberry Pi Zero: HDMI cable, USB-type-A-receptacle-to-Micro-B-plug-cable
BB Black: HDMI cable

Rev1.1:

• For the Raspberry Pi, Raspbian/Ubuntu driver is required
• When work as a computer monitor, touch function is unavailable

Rev2.1 New Features:

• Standard HID protocol, easy to be integrated into your system
• For the Raspberry Pi, supports Raspbian, Ubuntu, single touch, and driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, single touch, and driver free

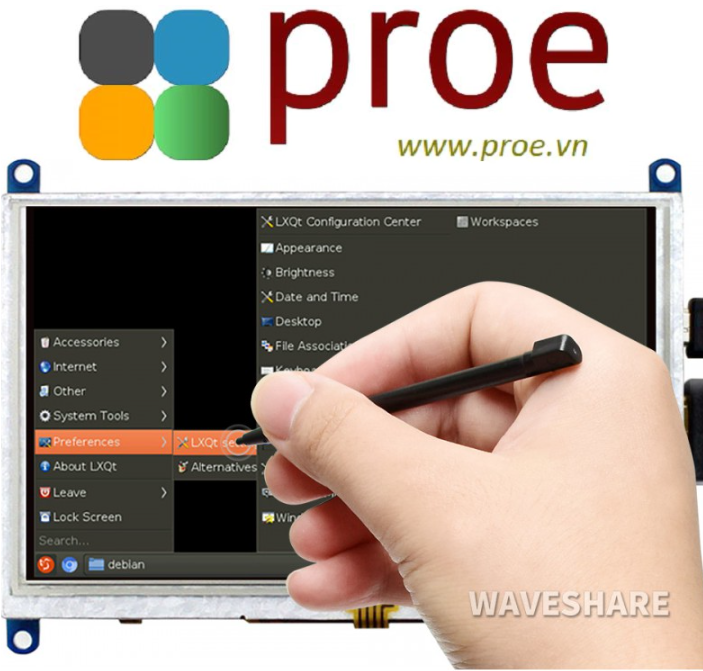

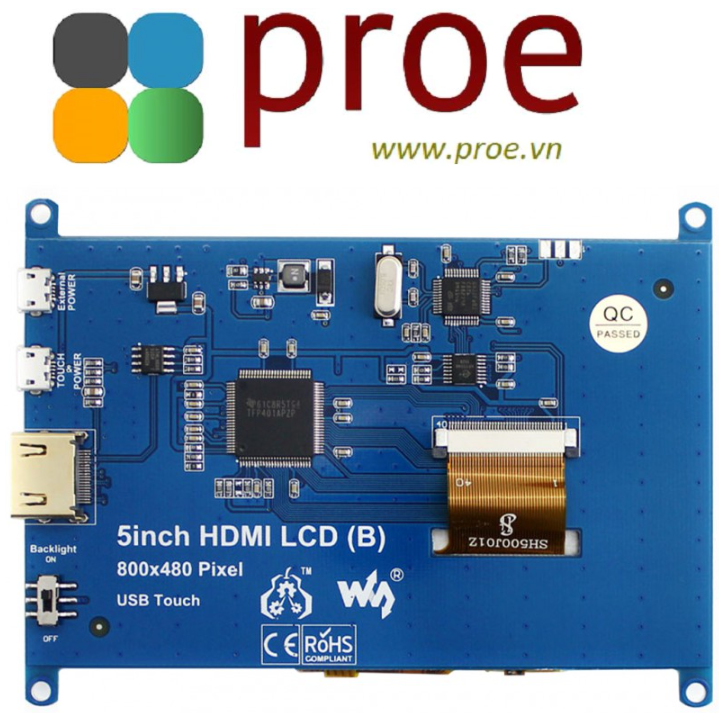

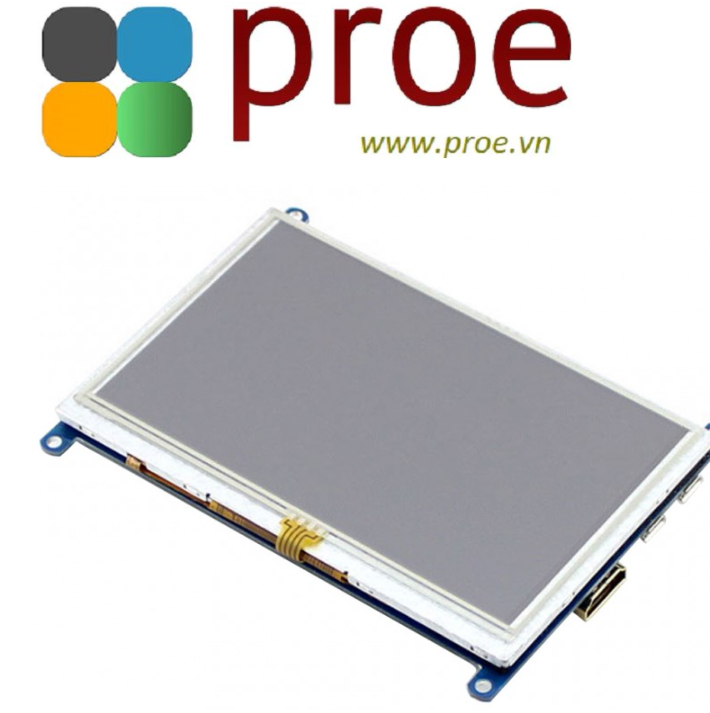

Photos

External Dimension

Development Resources

Wiki : www.waveshare.com/wiki/5inch_HDMI_LCD_(B)

FAQ

Why the LCD doesn't work with my Raspbian?

To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?

Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?

It is strongly recommended to use a stand-alone 5V/2A power adapter, because the PC's USB port might have not enough power to support the Pi and LCD.
