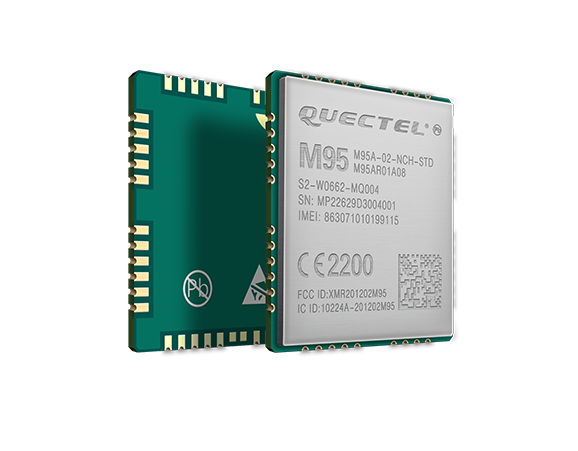

M95 is a highly compact Quad-band GSM/GPRS module in LCC castellation packaging in the market. It adopts the latest MTK chipset and features compact size of 19.9mm × 23.6mm × 2.65mm, ultra low power consumption and extended temperature range.
With surface mounted technology, the low profile and small size of LCC package make M95 easily embedded into the low-volume applications and ensure the reliable connectivity with the applications. This kind of package is ideally suited for large-scale manufacturing which has the strict requirements for cost and efficiency.
Built-in unique QuecFOTATM technology allows M95 to update the firmware remotely. Additional features such as integrated TCP/IP protocol stacks, serial multiplexer and enhanced AT commands guarantee fast and reliable transmission of data, voice, SMS via GSM/GPRS network and extend the functionality of the application at no additional cost.
Its compact size and ultra low power consumption makes M95 a very cost effective and feature-rich platform that is quite suitable for a wide range of M2M applications such as VTS, industry PDA, personal tracking, wireless POS, smart metering and many other M2M applications.
Key Benefits
● Highly compact Quad-band GSM/ GPRS module
● Easier soldering process with LCC package
● Embedded Class-AB amplifier
● Power consumption as low as 1.3mA
● Embedded powerful Internet service protocols, multiple Sockets & IP addresses
● eCall
● QuecFOTATM
● Jamming detection
● DTMF
● QuecLocator
Frequency |
M95 |
GSM/EDGE |
850/ 900/ 1800/ 1900MHz |
Dual SIM |
Y |
Region |
Global |
Certification |
CE/ GCF/ Vodafone/ UCRF/ ATEX/ PTCRB/ FCC/ IC/ Rogers/ NCC/ DoC/ ICASA |
