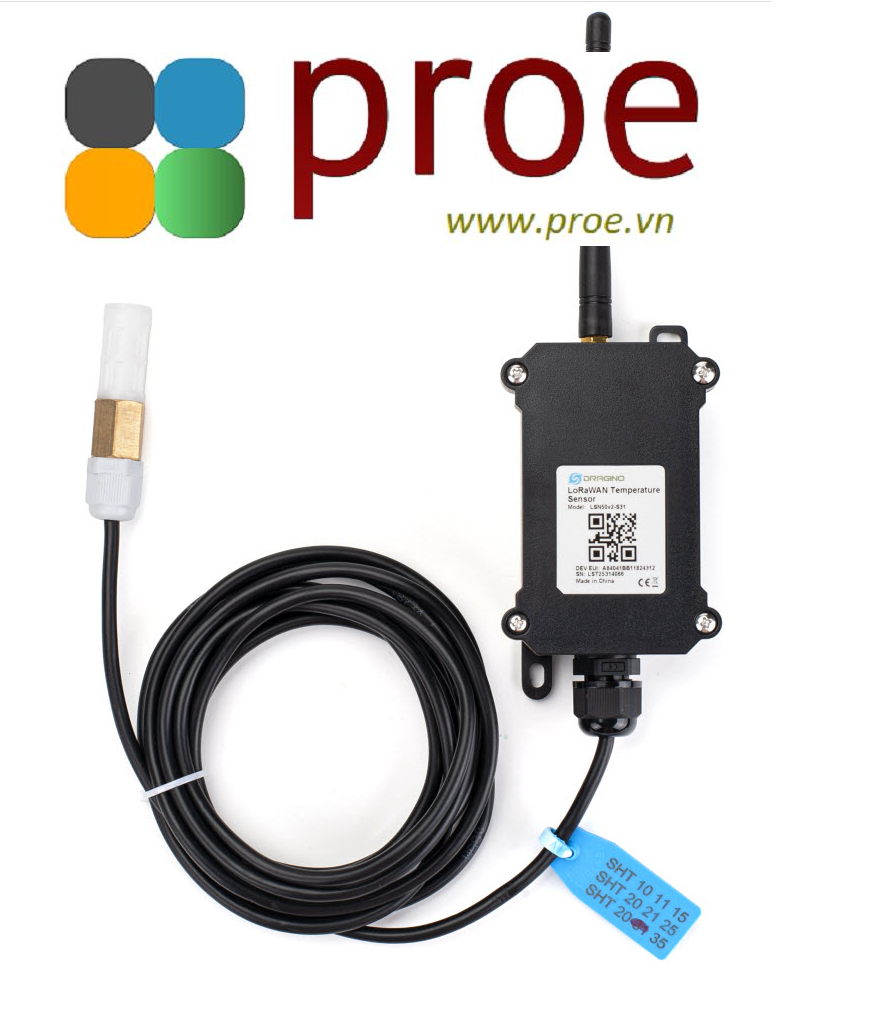

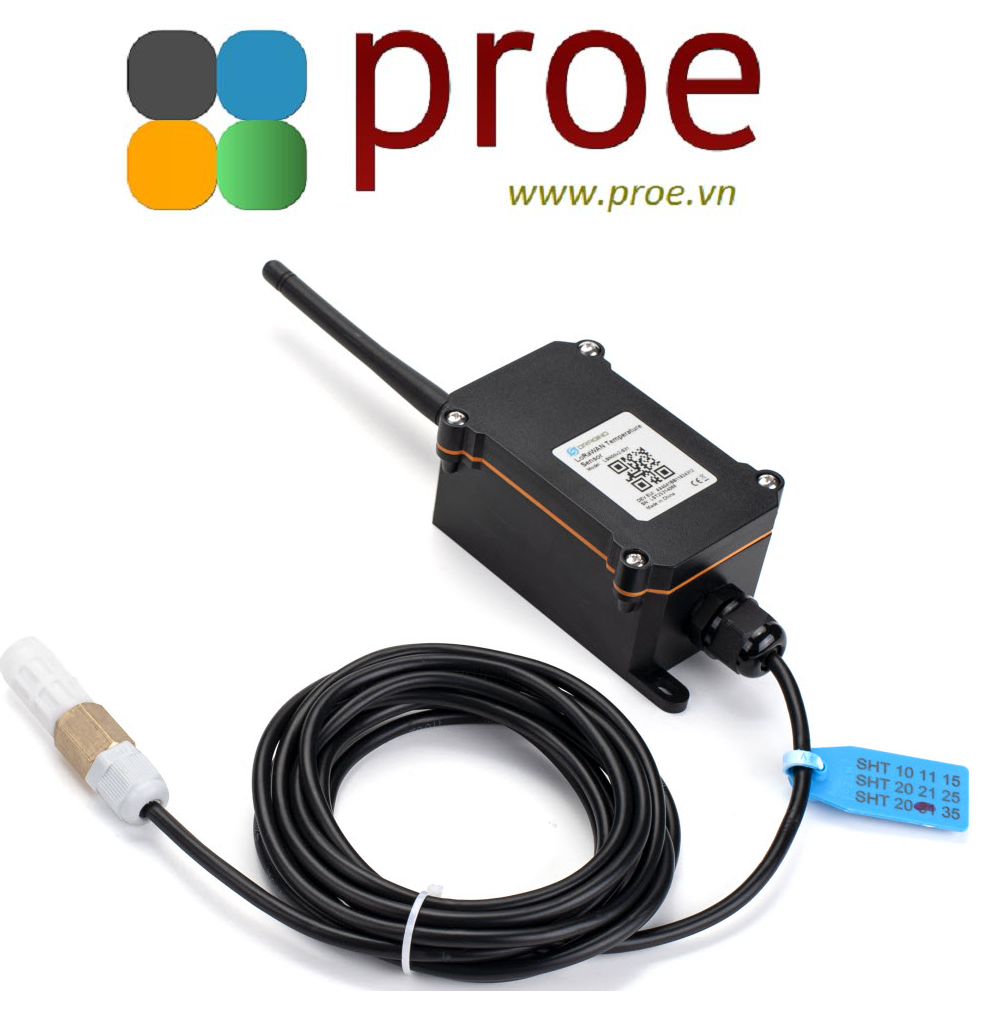

LSN50v2-S31 -- LoRaWAN Temperature & Humidity Sensor

The Dragino LSN50v2-S31 is a LoRaWAN Temperature and Humidity Sensor for Internet of Things solution. It is used to measure the surrounding environment temperature and relative air humidity precisely, and then upload to IoT server via LoRaWAN wireless protocol.

The temperature & humidity sensor used in LSN50v2-S31 is SHT31, which is fully calibrated, linearized, and temperature compensated digital output from Sensirion, it provides a strong reliability
and long-term stability. The SHT31 is fixed in a waterproof anti-condensation casing for long term use.

LSN50v2-S31 supports temperature and humidity alarm feature, user can get alarm for instant notice.

LSN50v2-S31 is powered by 8500mAh Li-SOCI2 battery, It is designed for long term use up to 10 years. (Actually Battery life depends on the use environment, update period.Please check related Power Analyze report).

Each LSN50v2-S31 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN v1.0.3 Class A
• Ultra low power consumption
• External 3m SHT31 probe
• Measure range -40°C ~ 80°C
• Temperature alarm
• Bands: CN470/EU433/KR920/US915
  EU868/AS923/AU915/IN865
• AT Commands to change parameters
• Uplink on periodically or Interrupt
• Downlink to change configure

Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Automated Meter Reading
• Industrial Monitoring and Control
• Long range Irrigation Systems,etc.

Temperature Sensor:

• Range: -40 to + 80°C
• Accuracy: ±0.2 @ 0-90 °C
• Resolution: 0.01°C
• Long Term Shift: <0.03 °C/yr

Humidity Sensor:

• Range: 0 ~ 99.9% RH
• Accuracy: ± 2%RH ( 0 ~ 100%RH)
• Resolution: 0.01% RH
• Long Term Shift: <0.25 %RH/yr

• Datasheet
• User Manual
• Battery Info

 LSN50v2-S31-XX:

XX: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915
