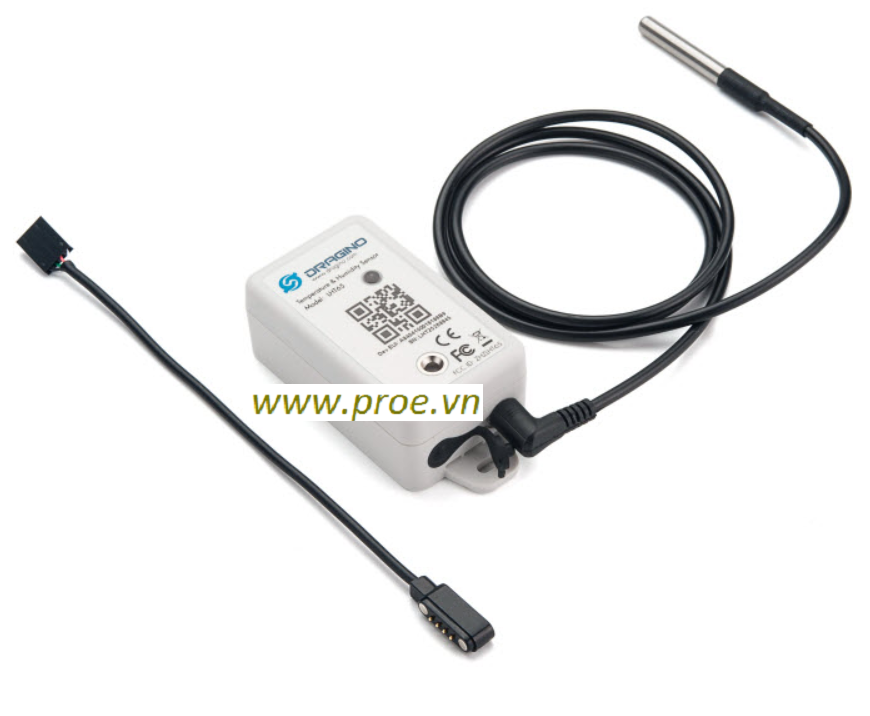

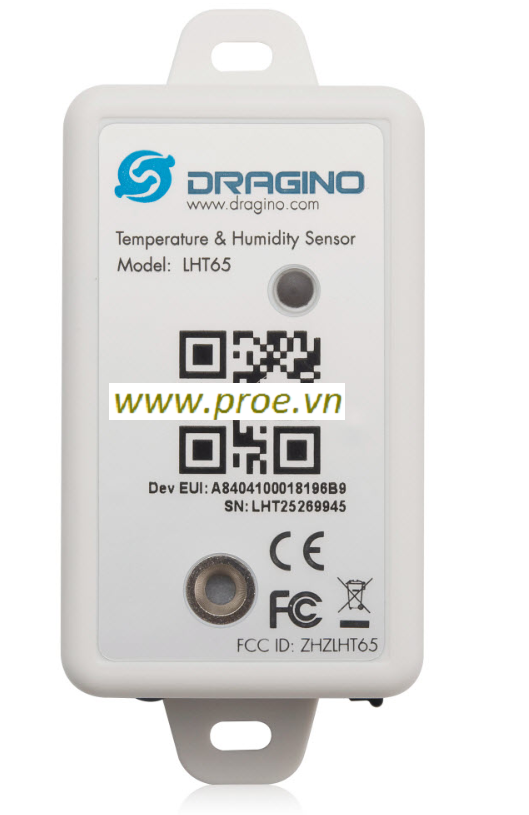

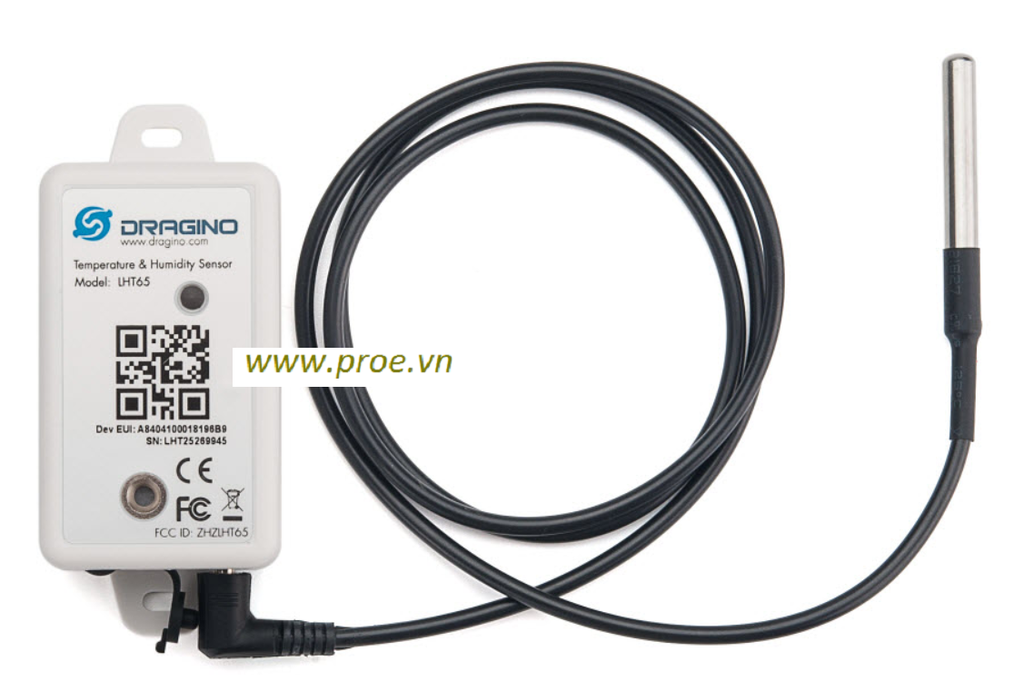

LHT65 LoRaWAN Temperature & Humidity Sensor

Features:

• LoRaWAN Class A protocol
• Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
• AT Commands to change parameters
• Remote configure parameters via LoRaWAN Downlink
• Firmware upgradable via program port
• Built-in 2400mAh battery for more than 10 year use.
• Built-in Temperature & Humidity sensor
• Optional External Sensors
• Tri-color LED to indicate status
• 3200 set sensor record with time stamp

Applications:

• Wireless Alarm and Security Systems
• Home and Building Automation
• Automated Meter Reading
• Industrial Monitoring and Control
• Long range Irrigation Systems,etc.

• Datasheet
• User Manual


LHT65-XXXXX-YY

XXXXX: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915

YY: the external sensor

• E1: DS18B20 Temperature & Humidity Sensor
