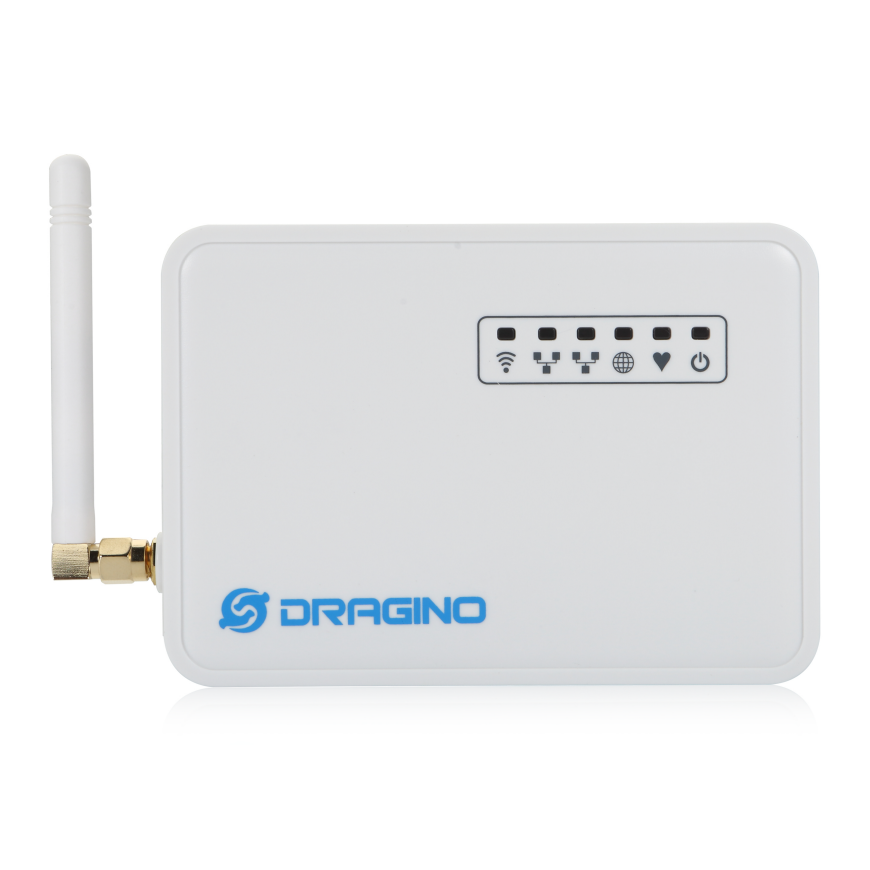

LG01-P Lora Gateway Dragino

Features:

• Open Source OpenWrt system
• Low power consumption
• Firmware upgrade via Web
• Software upgradable via network
• Auto-Provisioning
• Built-in web server
• Managed by Web GUI, SSH via LAN or WiFi
• Support WiFi AP, Client or Ad-Hoc(Mesh) mode
• Internet connection via LAN, WiFi, 3G or 4G
• Failsafe design provides robustly system
• Arduino IDE compatible. Easy to program.
• LoRa band available at 433/868/915/920 Mhz
• Max range in LoRa : 5 ~ 10km

Specifications:

Linux Side:

• Processor: 400MHz, 24K MIPS
• Flash: 16MB ; RAM: 64MB

MCU/LoRa Side:

• MCU: ATMega328P
• Flash:32KB, RAM:2KB
• LoRa Chip: SX2176/78

Cellular 4G LTE (optional):

• Quectel EC20 LTE module (Click the link and choose the right model when order)
• Micro SIM Slot
• Internal 4G Antenna + External 4G Sticker Antenna.
• Up to 100Mbps downlink and 50Mbps uplink data rates
• Worldwide LTE,UMTS/HSPA+ and GSM/GPRS/EDGE coverage
• MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Cellular 3G UMTS/HSPA+ (optional):

• Quectel UC20 LTE module (Click the link and choose the right model when order)
• Micro SIM Slot
• Internal 3G/4G Antenna + External 3G/4G Sticker Antenna.
• Up to 14.4Mbps downlink and 5.76Mbps uplink data rates
• Worldwide UMTS/HSPA+ and GSM/GPRS/EDGE coverage
• High-quality data and image transmission even in harsh environment
• Primary and diversity receive paths are designed for equivalent noise-figure performance

Interfaces:

• 10M/100M RJ45 Ports x 2
• WiFi : 802.11 b/g/n
• LoRa Wireless
• Power Input: 12V DC
• USB 2.0 host connector x 1
• USB 2.0 host internal interface x 1
