LC04 LoRaWAN 4 Channel low voltage control cable

• User Manual -- Online Latest

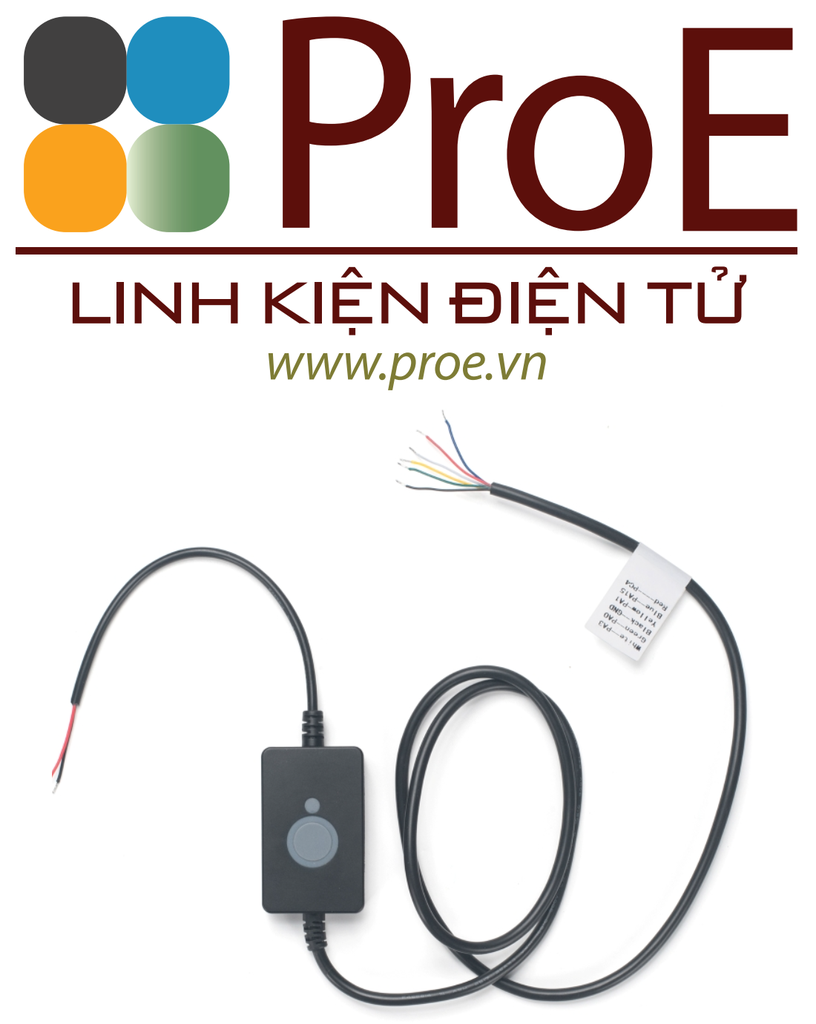

LC04 LoRaWAN 4 Channel low voltage control cable

The Dragino LC04 is a LoRaWAN Class C control cable which can control up to four channel low power.

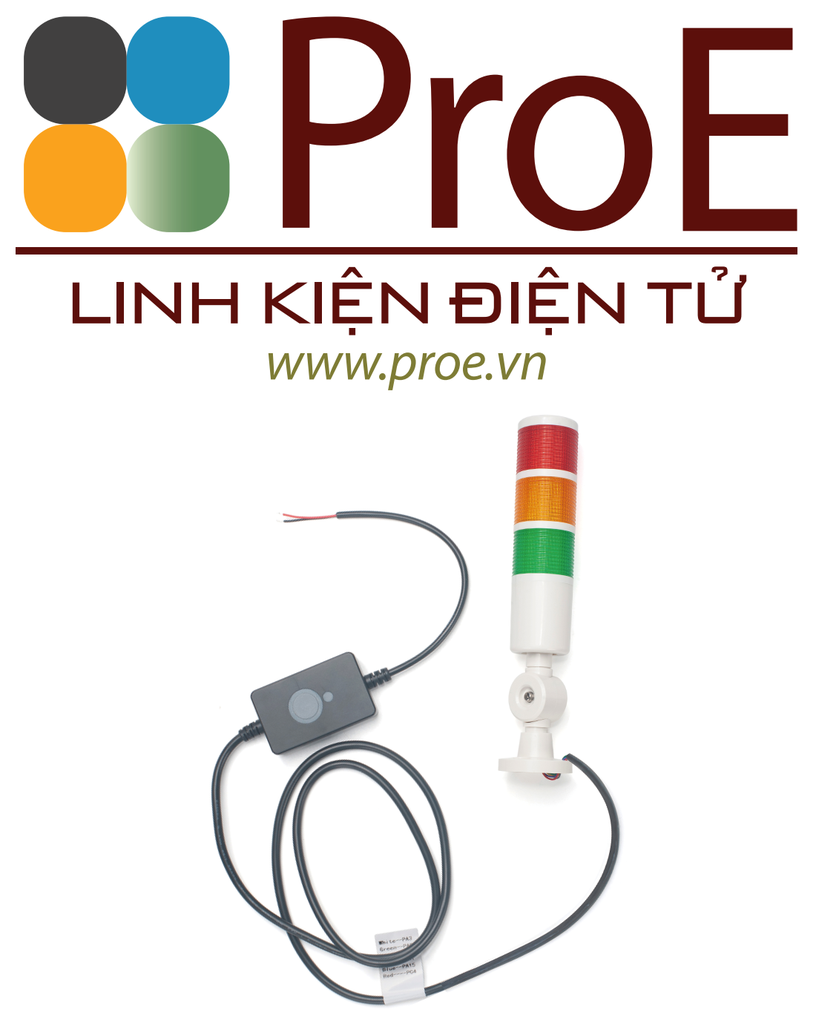

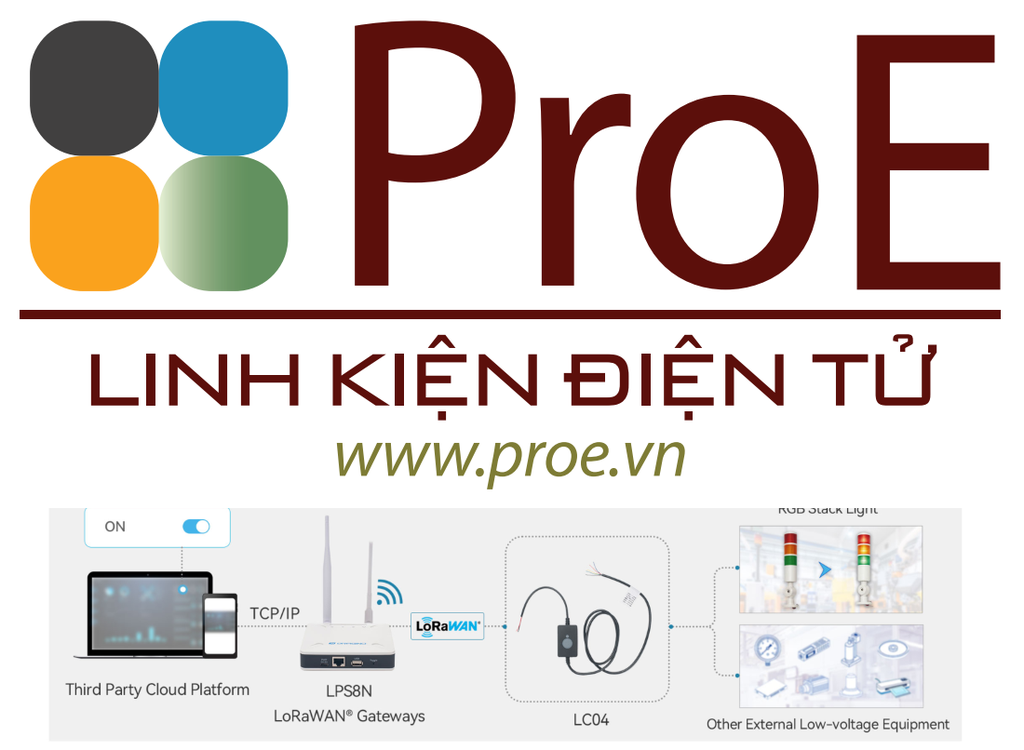

LC04 is powered by 8 ~ 28v and delivery this power to four channel outputs. User can send commands to LC04 via LoRaWAN network to configure LC04's 4-channel outputs soto control external low voltage device such as RGB Stack Light.

Each LC04 is pre-load with a set of unique keys for LoRaWAN registration, register these keys to LoRaWAN server and it will auto connect after power on.

Features:

• LoRaWAN v1.0.3 Class C protocol
• Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Power and input voltage range: 8 ~ 28v
• Up to four channels low voltage output
• Output Voltage same as input voltage
• Max output current per channel : 200mA
• Support Downlink and Timing control for output
• AT Commands to change parameters
• Log function and key reset function

Specifications:Edit

• Input / Output Voltage: 8 ~ 28v
• Max Current per channel: 200mA

Package Includes:

• LC04 LoRaWAN 4 Channel low voltage control cable x 1
