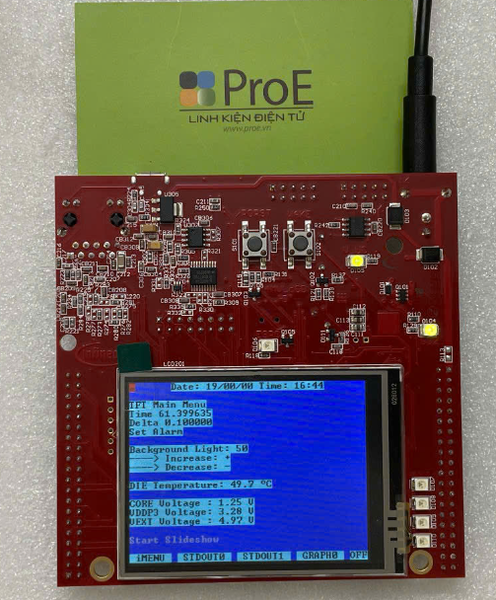

KITA2GTC3975VTFTTOBO1 A2GTC3975VTFT USB to UART (RS232) Bridge Interface Evaluation Board

  • Mã sản phẩm: KITA2GTC3975VTFTTOBO1
  • Nhà sản xuất: Infineon Technologies
  • Website hỗ trợ: https://www.proe.vn
7.500.000₫

This basic 5V TC397 Application Kit offers limited access to signals for early evaluation purposes. An additional touchscreen display offers convenient handling.

The Evaluation Board allows easily the development of TriCore applications with the corresponding tools. Subsequently, the applications can be downloaded and can be tested with powerful debugger software.

A downloadable User Manual helps with the installation, use, and configuration of the board and includes the schematics and the layout.



Summary of Features

  • Infineon's AURIX™ TC397 in LFBGA-292 Package
  • LCD XGA Display 320x240
  • SD card slot (mini SD)
  • High Speed CAN Transceiver (CAN FD capable)
  • USB to UART bridge
  • Ethernet Gigabit PHY
  • LIN Transceiver
  • Crystal 20MHz (default) or External Clock
  • USB miniWiggler JDS for easy debugging
  • 4 Low Power Status LEDs
  • RTC with alarm
  • Acoustic beeper
  • 100mm x 100mm

Connectors :

The Application Kit TC397 offers a wide variety of connectors:

  • Standard power connector
  • Micro USB connector for ASC Interface (ASC0) and miniWiggler
  • RJ45 connector for Ethernet (if Gigabit Ethernet supported by assembled CPU)
  • 16-pin header for JTAG interface (OCDS)
  • 10-pin header for DAP
  • 10pin (2x5) Header for LIN Transceiver (LIN)
  • 10pin (2x5) Header for CAN High Speed Transceiver (CAN0)
  • two 40-pin connectors with I/O signals
  • mini SD card slot

Components :

  • Infineon’s Multi-Voltage Safety Micro Processor Supply TLF35584QV
  • LED to validate power supply (5V or 3,3Volt)
  • LED indicating RESET (ESR0) active state
  • LED indicating active miniWiggler JDS
  • LED switched via DAS software
  • Infineon’s High Speed CAN Transceiver TLE 9251V (CAN FD capable)
  • Infineon’s LIN-Transceiver TLE 7259-3GE
  • QSPI Real-Time Clock/Calendar with SRAM and unique MAC Id MCP79511 (if CPU not support I2C)
  • I2C Real-Time Clock/Calendar with SRAM and unique MAC Id MCP79411 (if CPU support I2C)
  • USB to UART bridge FT2232HL (FTDI)
  • Integrated 10/100/1000M Ethernet Precision Transceiver RTL8211FI-CG (Realtek)
  • Touch screen controller ADS7843
  • 4 general purpose LEDs
  • Reset switch
  • Wake switch
  • Xilinx CPLD XC9572XL

Buy online

Parametrics

Parametrics KIT_A2G_TC397_5V_TFT
Board Type Evaluation Board
Family Microcontroller
Product Description This basic 5V TC397 Application Kit offers limited access to signals, for early evaluation purposes. An additional touchscreen display offers convenient handling.


Documents

User Manual

Xem thêm Thu gọn
