Jetson Mate With Cooling Fan - Jetson Nano/NX Carrier Board for GPU Cluster and Server

  • Mã sản phẩm: Jetson Mate With Cooling Fan
  • Nhà sản xuất: Seeed Studio
  • Website hỗ trợ: https://www.proe.vn
8.000.000₫

PRODUCT DETAILS

Remember seeing building a Raspberry Pi Cluster(Super Pi) isn’t big news anymore? But how about building a Jetson Nano/NX cluster with a reasonable cost and compact appearance. Welcome to Jetson Mate Cooling Kit.



Features

  • Easy to build and config
  • Powerful and Compact

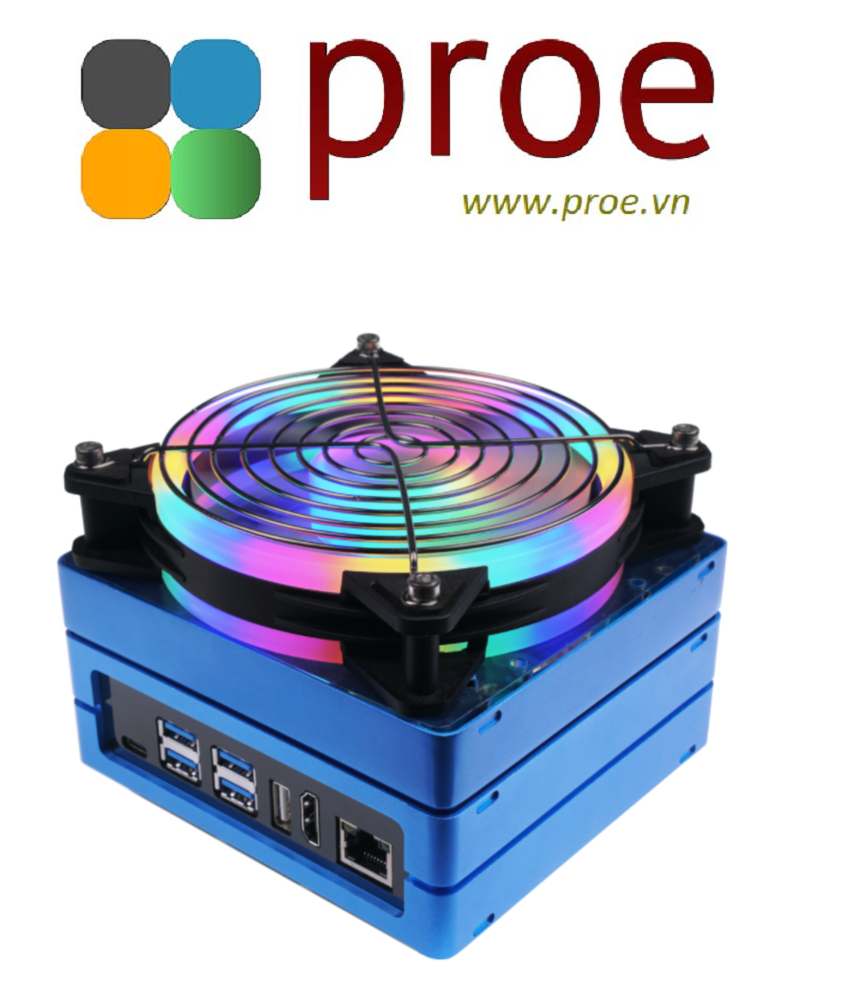

  • Comes with a dedicated case and fan



Description

Note: The kit does not include the 65w PD power supply, please make sure you have this sort of power supply to avoid powering up issues.

Power Reference: 65W 2-Port PD Charger. If using Jetson NX SoMs then please use a 90w PD charger such as this: 90W 2-Port Wall Charger.

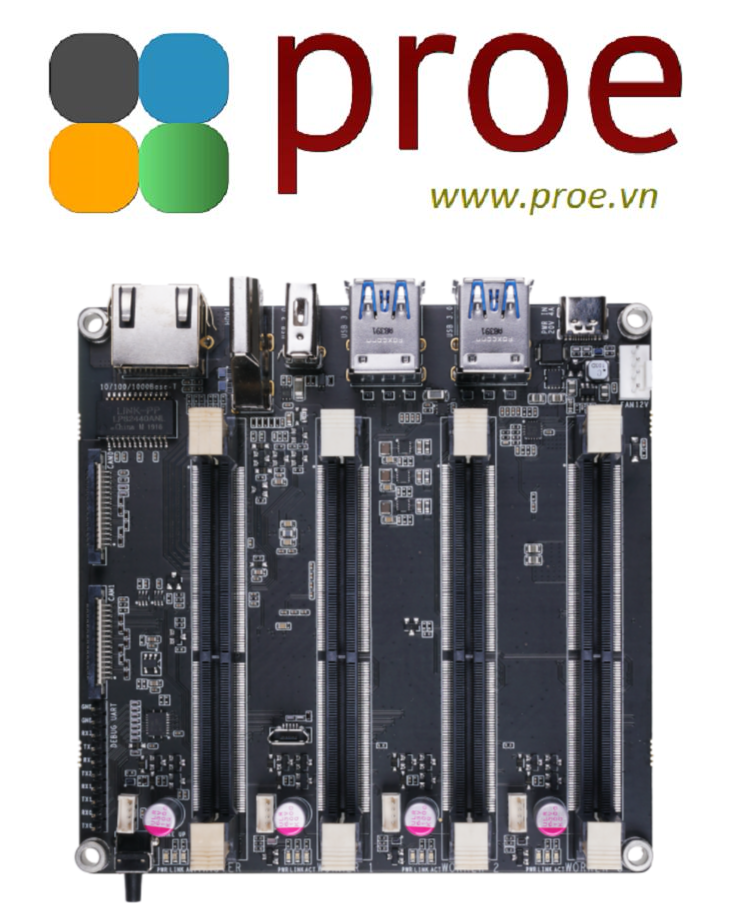

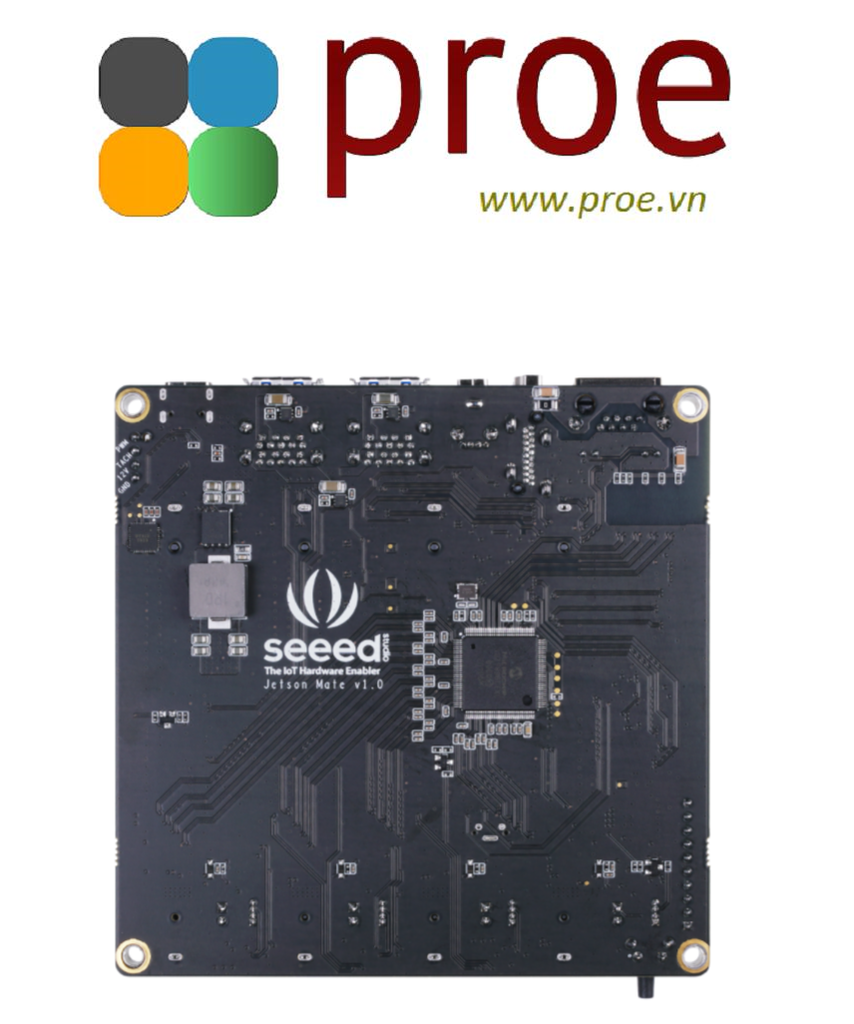

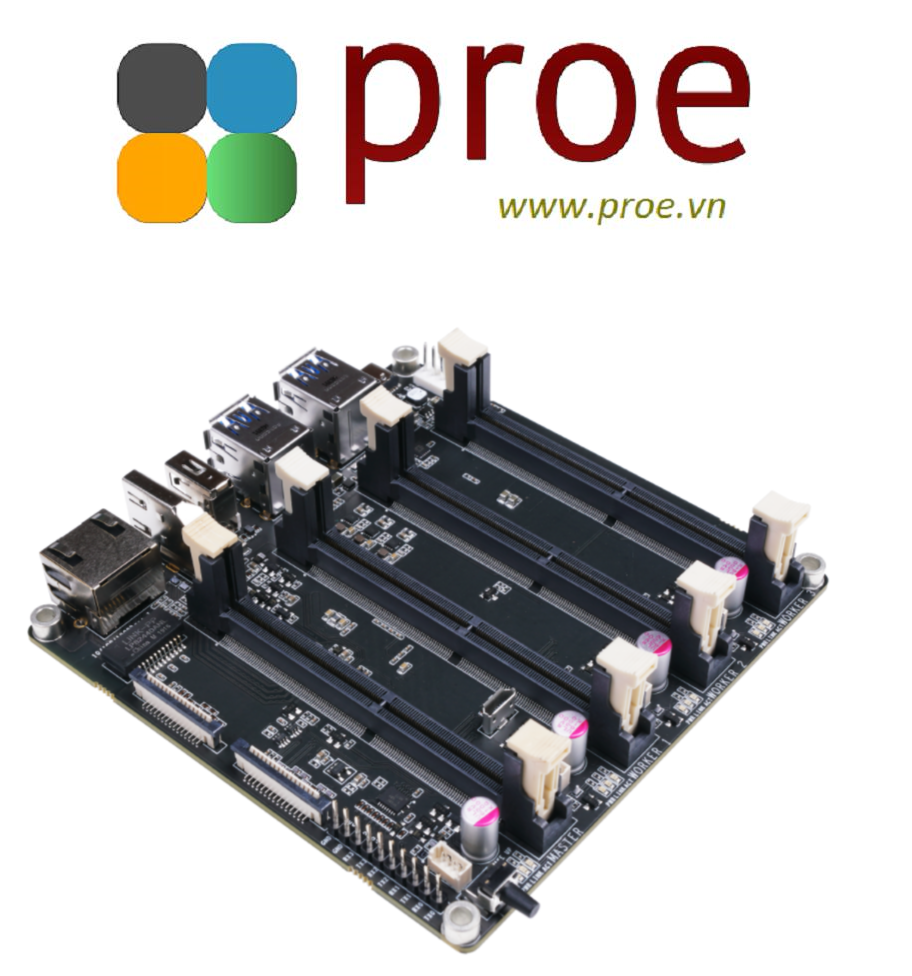

Jetson Mate is a carrier board which can install up to 4 Nvidia Jetson Nano/NX SoMs. There is an on board 5-port gigabit switch enabling the 4 SoMs to communicate with each other. All the 3 peripheral SoMs can be powered on or off separately. With one 65w PD power adapter and 1 ethernet cable, developers can easily build their own Jetson Cluster.



Applications

  • GPU Server
  • Homelab
  • GPU Cluster



Hardware Overview

Getting Started



Seeed Weekly Show EP20 | Industrial Case for SBCs, Jetson Mate, re_computer HDD mounting bracket



Specification



Spec

/

Power

65w PD

Dimensions

110mm x 110mm

Onboard Switch

Microchip KSZ9896CTXC



At Seeed, you can also design your solution all in one page where you choose the desired SBC, any compatible mission board (HATs, expansions) that you want, I/O modules, and nicely place them in the suitable enclosures/cases such as re_computer case. Rest assured, as we have tested full compatibility for all of the products listed on the page. Try it now here and save you time to find hardware compatibility!





Part List:

  • Jetson Mate x 1
  • Jeston Mate Cooling Fan Top x 1
  • Jetson Mate Case x 1



LEARN AND DOCUMENTS

Learn



[Wiki] Jetson Mate With Cooling Fan - Jetson Nano/NX Carrier Board for GPU Cluster and Server

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.



[Project] Set up a Jetson NANO/NX Cluster in one systerm

We are testing a small systerm including a carrier board Jetson Mate, which can install up to 4 Nvidia Jetson Nano/NX SoMs
