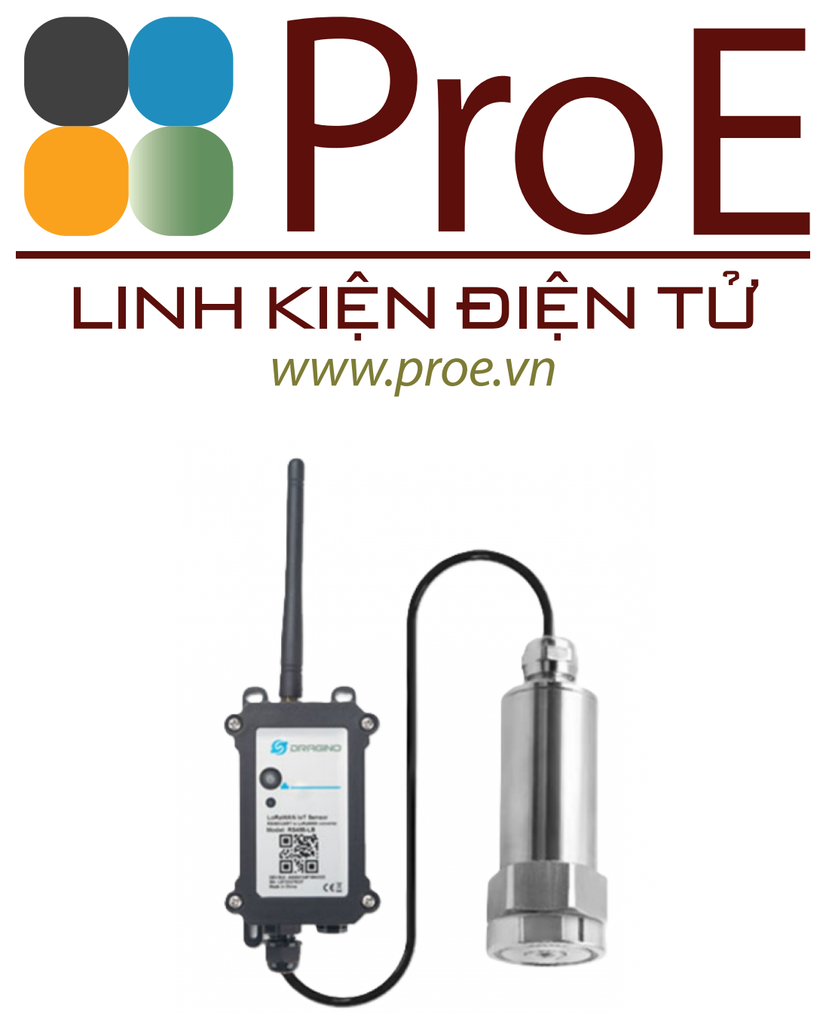

IVS-LN LoRaWAN Industrial Vibration Sensor

• DataSheet, Document Base,Certificate
• User Manual -- Online Latest

IVS-LN -- LoRaWAN Industrial Vibration Detector according to ISO standard Sensor

Indsutrial Vibration Sensor is designed formotors, pumps, fans, and other rotatingequipment,enabling early faultdetection and predictive maintenance. ISo20816-1 providesgeneral guidelines for measuring and evaluating machine vibration, establishing standardized methods to assess equipment condition anddetect potential faults.

IVS-LN is compliant with ISo20816-1 vibration evaluation guidelines. IVS-LN measures temperature, vibration frequency, RMS acceleration, RMS velocity & vibration displacement. And send these value to application server via LoRaWAN wireless protocol.

Specifications:

• Probe IP Rate: IP68
• Probe Operate Temperature: -40 ~ 80°C
• Vibration Measure Parameters:
  • Frequency: 10~1600Hz or 10~5000Hz
  • RMS Velocity: 0 ~ 50 mm/s, Accuracy : <1%
  • Vibration Displacement: 0-5000 μm (Peak-to-Peak)
  • RMS Acceleration: 16g, Accuracy : <1%
  • Surface Temperature: -40 ~ 80℃

Package Includes:

• 1 x IVS-LN LoRaWAN Vibration Sensor

Part Number: IVS-LN-XXX

XXX: The default frequency band

• AS923: LoRaWAN AS923 band
• AU915: LoRaWAN AU915 band
• EU433: LoRaWAN EU433 band
• EU868: LoRaWAN EU868 band
• KR920: LoRaWAN KR920 band
• US915: LoRaWAN US915 band
• IN865:  LoRaWAN IN865 band
• CN470: LoRaWAN CN470 band
