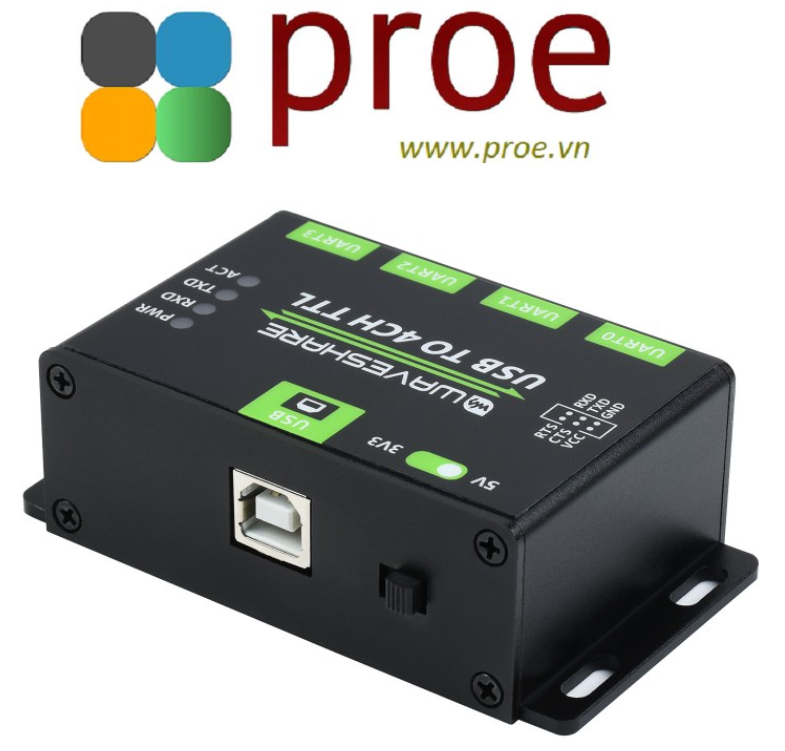

Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection & Systems Support

  • Mã sản phẩm: USB TO 4CH TTL
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
450.000₫
PACKAGE CONTENT

Weight: 0.169 kg

  1. USB TO 4CH TTL x1
  2. USB cable (~1.2m) x1
  3. 6PIN squid wire (~20cm) x4

1

2

3

Industrial USB TO 4CH TTL Converter, USB To UART, Multi Protection Circuits, Multi Systems Support

Industrial USB TO 4CH TTL UART CONVERTER

Stable Transmission | Multi Devices | Multi Systems

Features At A Glance

  • Extending USB to 4CH TTL (UART) with hardware flow control, allows concurrent and independent communication for each channel
  • Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
  • Onboard IO protection circuit for surge suppress and ESD protection, safe and stable communication
  • Onboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level
  • Aluminium alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
  • Quality USB-B connector, and IDC connector with fool-proof design

Specifications

HOST PORT USB
DEVICE PORT UART
BAUDRATE 1200bps ~ 460800bps
USB PORT Connector: USB-B
Protection: resettable fuse, ESD protection
UART PORT Connector: 6PIN fool-proof header
Protection: IO protection diode

Multiple Protection, Safe And Stable

Onboard Resettable Fuse And Protection Diode, Provides Over-Current/Over-Voltage Proof, Improves Shock Resistance; Onboard IO Protection Circuit For Surge Suppress And ESD Protection, Safe And Stable Communication

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

Application Examples

Suitable For Industrial/Office Conditions With Strict Requirements For Operating Environment And Devices

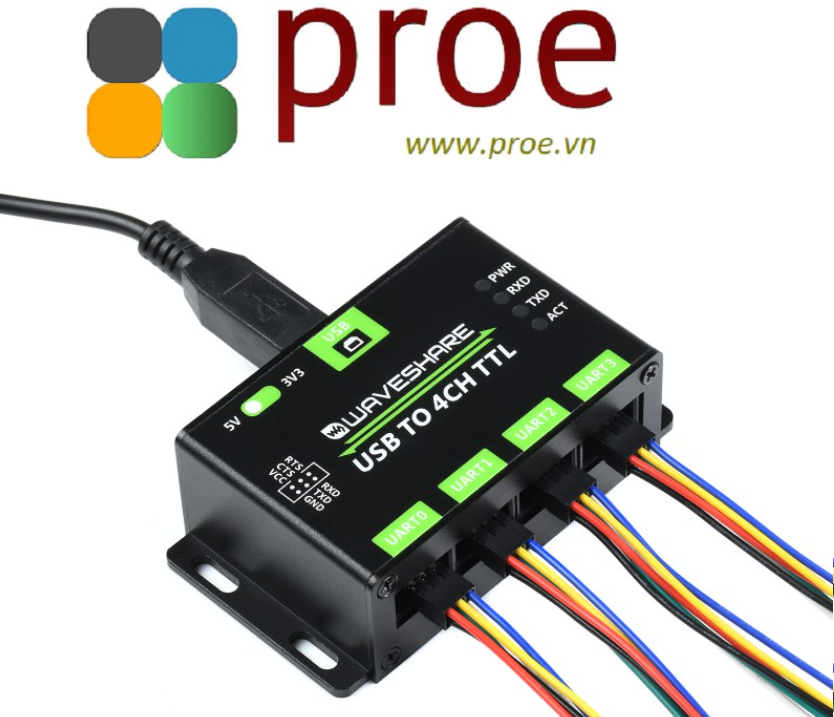

Extending USB to 4CH TTL UART
Industrial chip, 4CH TTL, allows concurrent and independent communication



Small size, easy installation
Flexible installation, suitable for sorts of devices to extend TTL interfaces

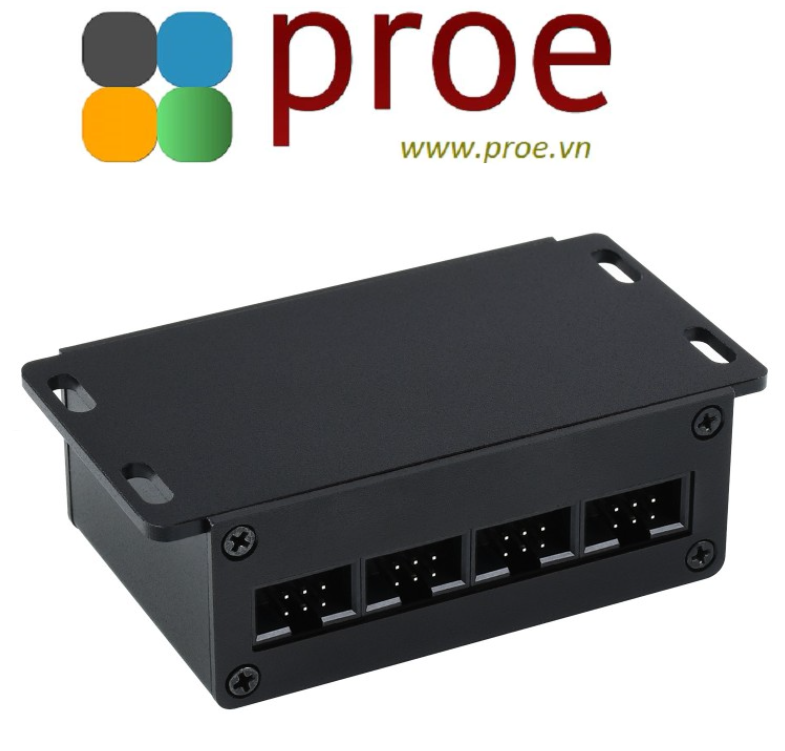

Reversed mounting holes
Easy wall mount, industrial alloy enclosure, solid and durable

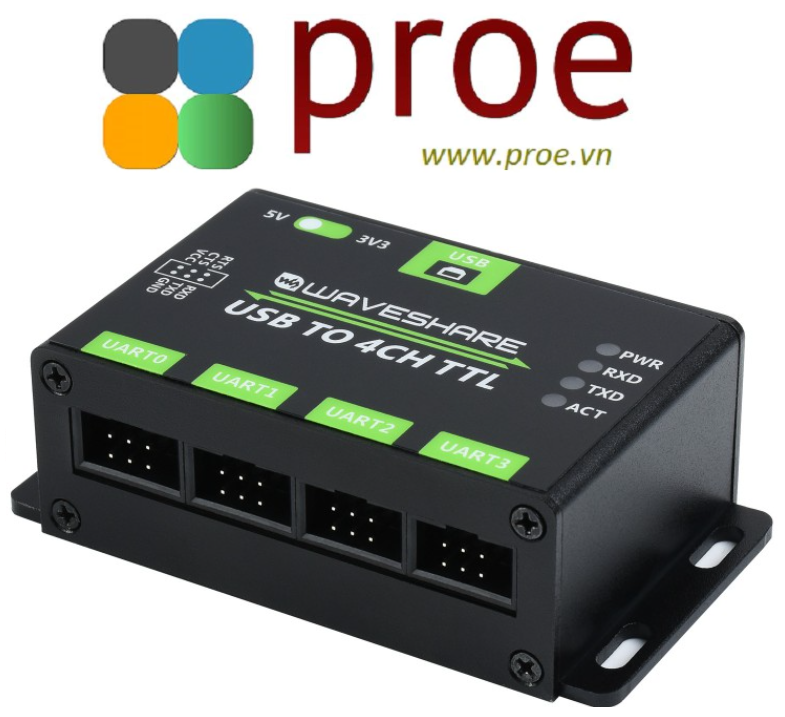

Interface Introduction

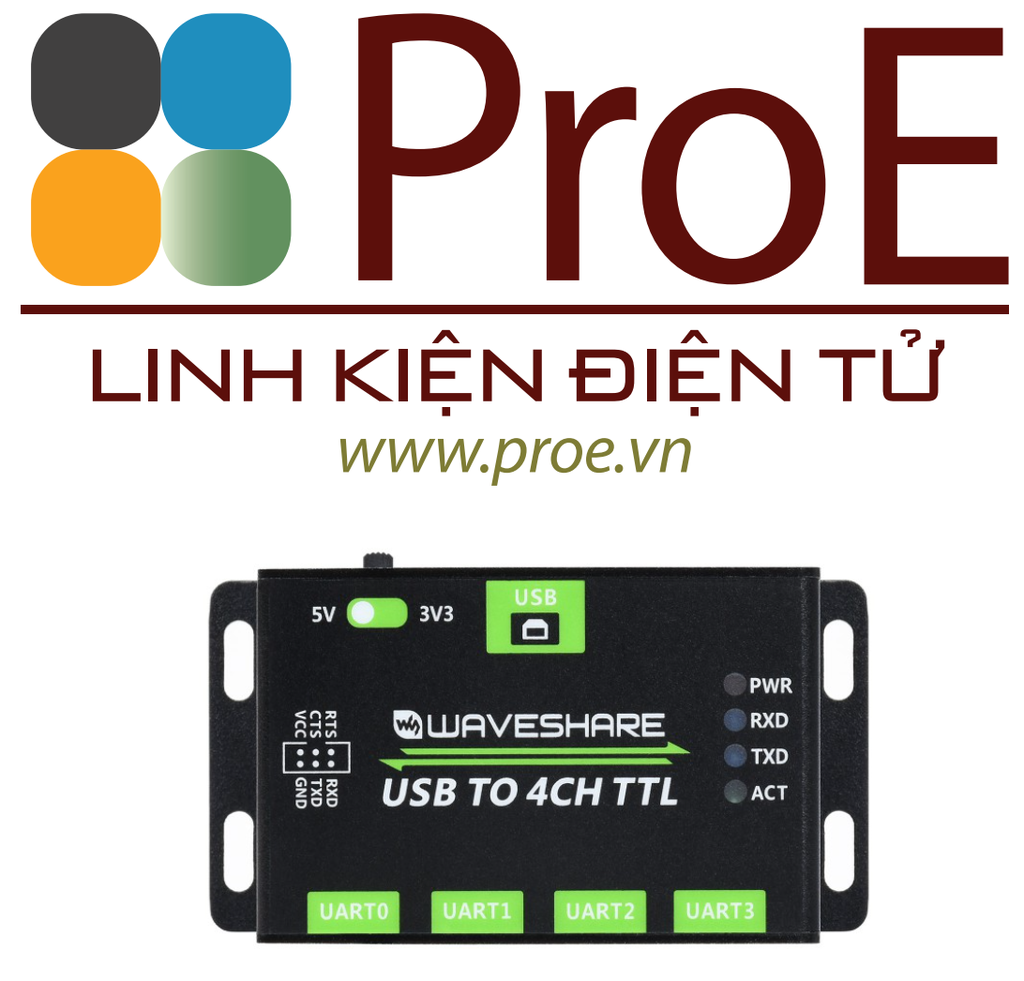

Indicators Description

PWR power indicator, lights up while the USB is connected and voltage is detected
RXD receiving indicator, lights up while the device port is receiving data
TXD sending indicator, lights up while the USB port is sending data
ACT status indicator, lights up while the converter is properly operating

Pinout Definition

VCC 5V or 3.3V output, configured by switch
GND Ground
TXD Connecting to MCU.RXD
RXD Connecting to MCU.TXD
RTS Connecting to MCU.CTS
CTS Connecting to MCU.RTS

Outline Dimensions

Resources & Services

Wiki: USB_TO_4CH_TTL
