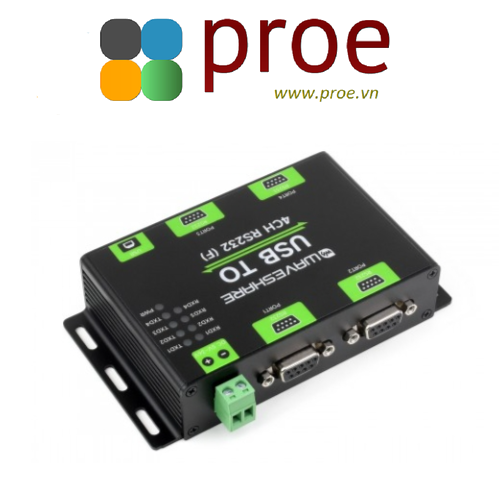

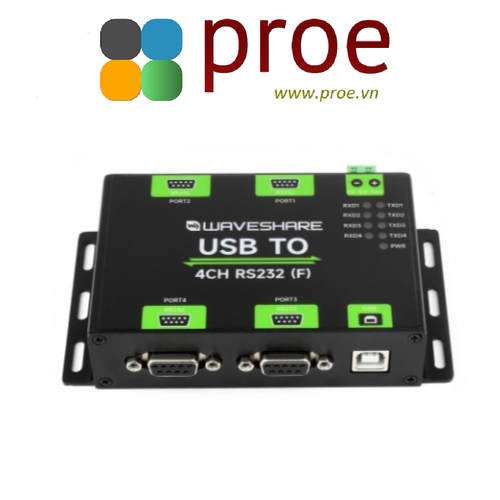

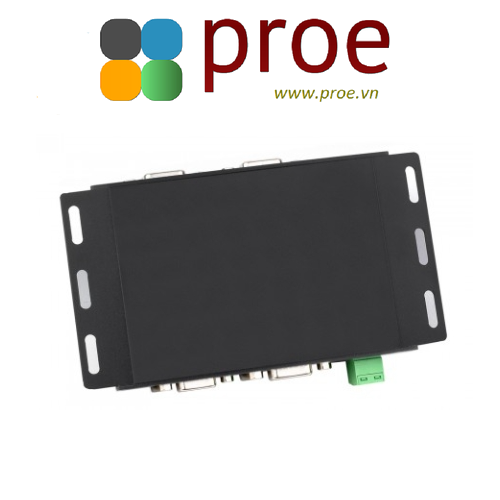

Industrial Isolated USB To 4-Ch RS232 Converter, USB To Serial Adapter, Original FT4232HL Chip, Mac / Linux / Android / Windows Multi-OS Compatible

WIKI: www.waveshare.com/wiki/USB_TO_4CH_RS232

PACKAGE CONTENT

1. OPTIONS USB TO 4CH RS232 x1
2. USB type-A to type-B cable ~1.2m x1
3. Power adapter x1

DESCRIPTION

Industrial Isolated USB To 4-Ch RS232 Converter, USB To Serial Adapter, Original FT4232HL Chip, Mac / Linux / Android / Windows Multi-OS Compatible, Wall-Mount Support

Industrial Isolated USB Converter

USB To 4-Ch RS232

FT4232HL | Stable Transmission | Multiple Devices Applicable | Multi-OS Compatible

Features At A Glance

• Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility
• Supports USB to 4-ch isolated RS232, convenient for expanding multiple RS232 industrial serial devices
• Onboard unibody power supply isolation, provides stable isolated voltage
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection
• Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance
• Onboard power supply screw terminal, allows 5V~36V DC wide range input
• 9 LEDs for indicating the power and transceiver status
• Aluminum alloy enclosure with sand blasting and anodic oxidation, solid and durable

Version Options

USB TO 4CH RS232
to 4-ch RS232 male port

USB TO 4CH RS232 (F)
to 4-ch RS232 female port

Specifications

Original Industrial Grade Chip

Onboard Original FT4232HL Chip,
Fast Communication, Stable & Reliable, Better Compatibility

Safer Isolated Design

• Onboard unibody power supply isolation, provides stable isolated voltage
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption

Multiple Protection, Safe And Stable

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage proof, improve shock proof performance.

Multi System Support

Supports MacOS, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, Etc.

Aluminum Alloy Enclosure

Aluminum Alloy Enclosure With Sand Blasting And Anodic Oxidation, Solid And Durable

Pin Definition

Outline Dimensions
