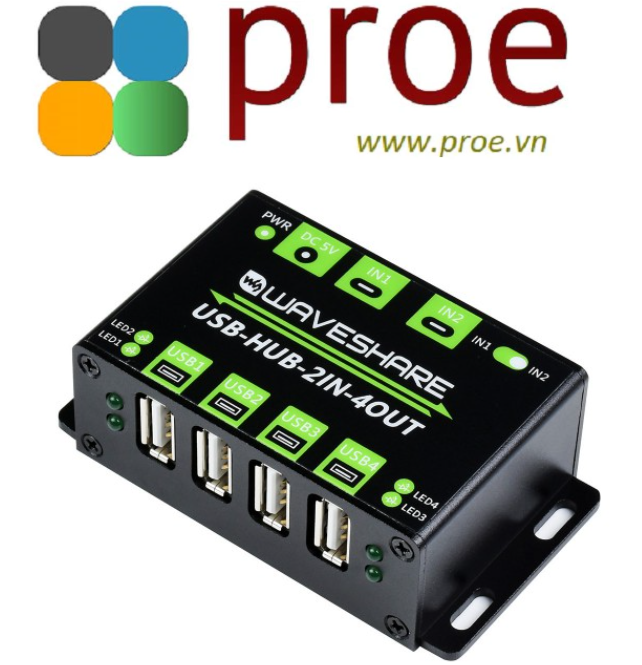

Industrial Grade USB HUB, Extending 4x USB 2.0 Ports, Switchable Dual Hosts

  • Mã sản phẩm: USB-HUB-2IN-4OUT
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
540.000₫
PACKAGE CONTENT

Weight: 0.236 kg

  1. USB-HUB-2IN-4OUT x1
  2. USB-A to USB-C cable ~1m x2
  3. OPTIONS 5V 2A power adapter x1

1

2

3

Industrial Grade USB HUB, Extending 4x USB 2.0 Ports, Switchable Dual Hosts

Industrial USB HUB, Switchable Dual Hosts

Sharing USB devices for two hosts, free up the crowded desktop



Features At A Glance

  • 4x extended USB ports, switchable two inputs, sharing USB devices for two hosts
  • Industrial grade HUB chip, adopting MTT technology, allows stable and smooth 4x concurrent USB connections
  • ESD protection for each USB port, preventing electric surge damage and data loss
  • Over-voltage protection, effectively preventing other high voltage power input from damaging the connected devices
  • Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
  • Industrial grade metal case, rugged & durable, with mounting holes for easy installation

Specifications

STANDARD high speed USB 2.0
DATA RATE up to 480Mbps
USB OUTPUT 5V@Imax:1.2A, USB-A connector
USB HUB INPUT 5V, switchable dual USB-C connector (standalone power supply, no crossed power)
EXTERNAL POWER DC 5V, DC jack/USB-C power input
OPERATING ENVIRONMENT -40℃ ~ 85℃
OS SUPPORT Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP

Sharing USB Devices For Two Hosts

Switch the active host by the handy switch at any time, easily control two hosts (say, the computer and Raspberry pi) by the same keyboard and mouse,
no more two sets of keyboard and mouse on the table, keeping your working environment neat and tidy.

Industrial Grade HUB Chip

MTT Technology, 4x Concurrent USB Connections, Stable And Smooth

Multiple Protections, More Safe

Over-Voltage, Over-Current, Short Circuit, Over-Temperature, Reverse Current, Under Voltage Lock-Out, 8KV ESD Protection, Filtering Protection...

Multiple OS Support, Plug & Play

Compatible With OS Including: Mac OS, Linux, Windows 11 / 10 / 8.1 / 8 / 7 / XP...

Application Environments

Suitable For Industrial/Office Environments With Higher Level Device Requirements


2 in 4 out




small size, easy installation




mounting support

Interface Introduction

Outline Dimensions

Resources & Services

Wiki: USB-HUB-2IN-4OUT
