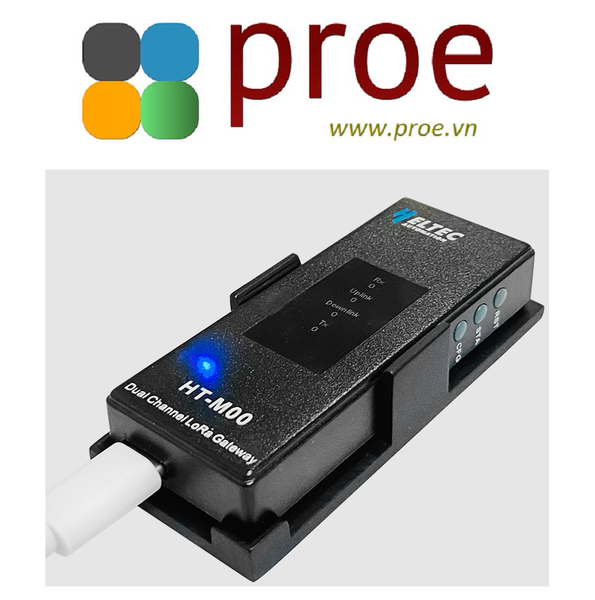

HT-M00 Dual Channel LoRa Gateway

HT-M00 is a low-cost dual channel gateway.It is located to smart family LoRa applications that work with less than 30PCS LoRa nodes.This gateway is based on two SX1276 chips driven by ESP32. We wrote a software mixer (also called a baseband simulation program) to make it possible to achieve 125KHz SF7~SF12 spreading factor monitoring.

HT-M00 Dual Channel LoRa Gateway is a part of the “Heltec LoRa“ series, with the following features:

• CE Certificate
• ESP32 + SX1276
• Size: 75 x 30 x 13mm
• Emulates LoRa demodulators
• Automatic adaptive spread spectrum factor, SF7 to SF12 for each channel is optional
• Maximum output: 18 ± 1dBm
• Communication interface Type-C USB
• The power supply voltage:5V
• Support for LoRaWAN Class A, Class C protocols
• Frequency range:
  • Europe – 868MHz ISM band (863MHz to 870MHz range)
  • Europe – 433MHz ISM band
  • USA/Australia – 915MHz ISM band (902MHz to 928MHz range)
  • China – 470MHz ISM band (470MHz to 510MHz range)

Technical Parameters

Electrical characteristics
