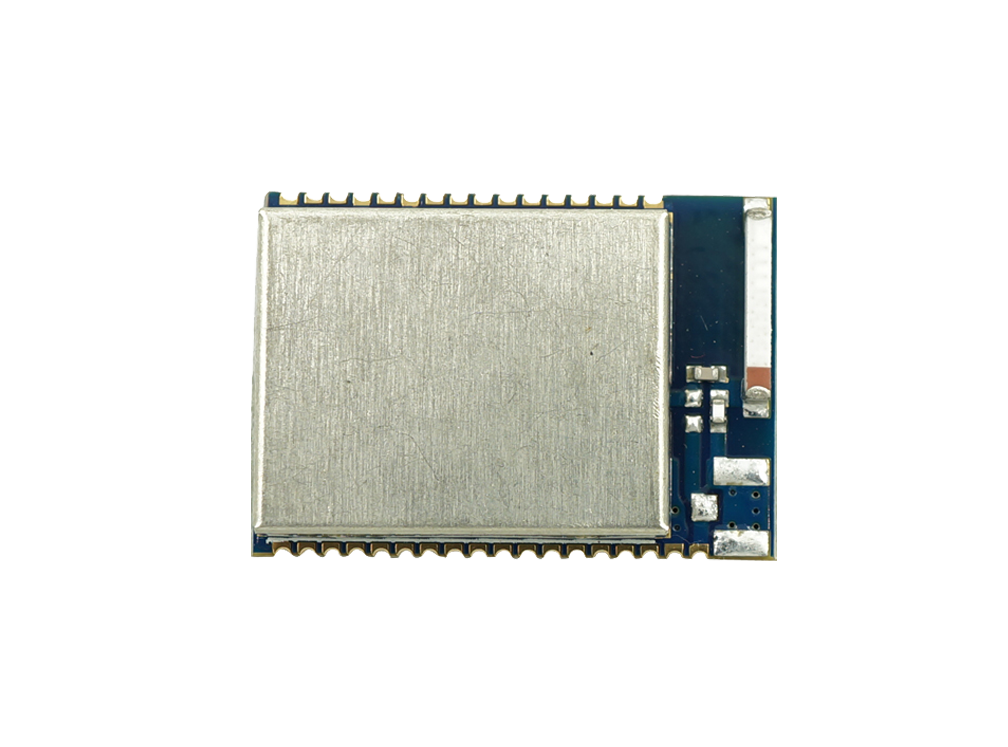

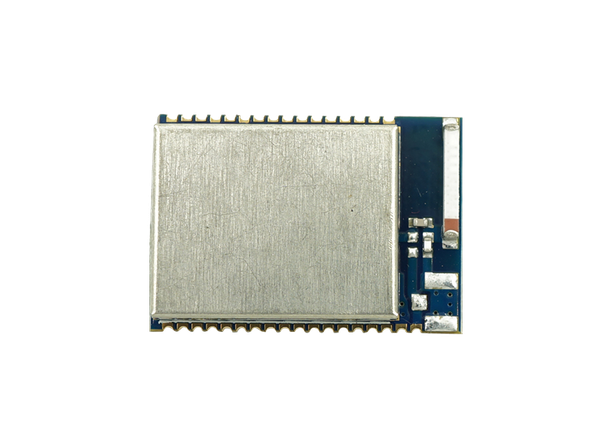

HPTZ01XW 2.4G ISM band based ZigBee module

DATASHEET

HPTZ01XW (HPTZ01-TTL,HPTZ01P-TTL) Serial ZigBee module is development designed by Ember ZigBee chip EM35x. It is a module base on IEEE 802.15.4-2003 standard for the 2.4G ISM band. HPTZ01XW is low cost, high performance and ultra compact size zigbee module. HPTZ01XW is for all kind of the data transfer, data corrector, LED lamp control, home automation, smart building control, wireless Sensor network, energy monitor, secure wireless monitor.

1. Descriptions of 2.4G ISM band based ZigBee Transceiver Module HPZ01XW:

HPTZ01XW (HPTZ01-TTL,HPTZ01P-TTL) Serial ZigBee module is development designed by Ember ZigBee chip EM35x. It is a module base on IEEE 802.15.4-2003 standard for the 2.4G ISM band. HPTZ01XW is low cost, high performance and ultra compact size zigbee module, had included the EmberZnet ZigBee protocol stack, the Mesh network software and the transparent transmission software with the 32-bit ARM® Cortex™- M3 processor.

HPTZ01XW provides the TTL level UART standard communication port, and less communication command for network building or data transfer and data receive, it let the developer easy to use.

HPTZ01XW is for all kind of the data transfer, data corrector, LED lamp control, home automation, smart building control, wireless Sensor network, energy monitor, secure wireless monitor.

2. Feature of 2.4G ISM band based ZigBee Transceiver Module HPZ01XW:

● Low consumption design, provide difference halt or sleep mode

● Provide simple and standard TTLlevel UARTport, and the optional separable wake up PIN.

● Provide the flexible 300bps to 460-800bps baud rate user setting feature.

● Provide Coordinatoror Router and End Device type.

● Coordinator and Router are easy exchanged by command setting.

● End Device is low current designed; the standby current is less 1uA.

● Support the Point to Point or Mesh structure network. In theoryit is up to 6500 nodes.

● 16 channels from channel 11 to 26 base on IEEE 802.15.4-2003 standard for the 2.4G ISM band.

● Module automatic select the silence channel.

● Automatic keeps back the original network while power on or reset.

● Automatic self repair the network while interfered by noise.

● high secure network under the Link Key and independent PAN ID designed. Effective to prevent intruded into nodes and protectst he user data.

● End-user easy to set up the ZigBee network,does not need the ZigBee technical knowledge, only need to know some commands of UART and related technical    knowledge.

● Provide the RSSI level.

● provide transparent transmission data link for user data in the network.

● Small size designed, easy to install on the mother board.
