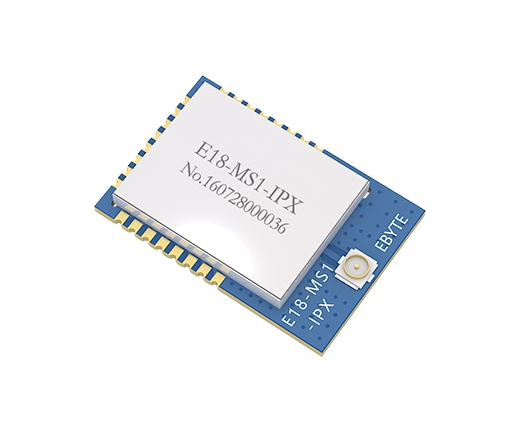

E18-MS1-IPX ZigBee CC2530 Module

Specification

[IC] : CC2530

[Frequency] : 2.4GHz

[Power] : 4dBm

[Distance] : 0.24km

[Interface] : IO

[Introduction] : E18-MS1-IPX is based on original imported RF chip CC2530 form TI inAmerica. The IC chip is integrated with 8051 microcontroller and wireless transceiver, and applicable to ZigBee design and 2.4GHz IEEE 802.15.4 protocol.All the IO ports are led out by the module,which means that multi-aspect development is realizable.



Parameters



Pin Definition



Test Reports
