Hiwonder JetMax Pro

Hiwonder JetMax Pro JETSON NANO Robot Arm with Mecanum Wheel Chassis/ Electric Sliding Rail Support ROS Python

Product Description

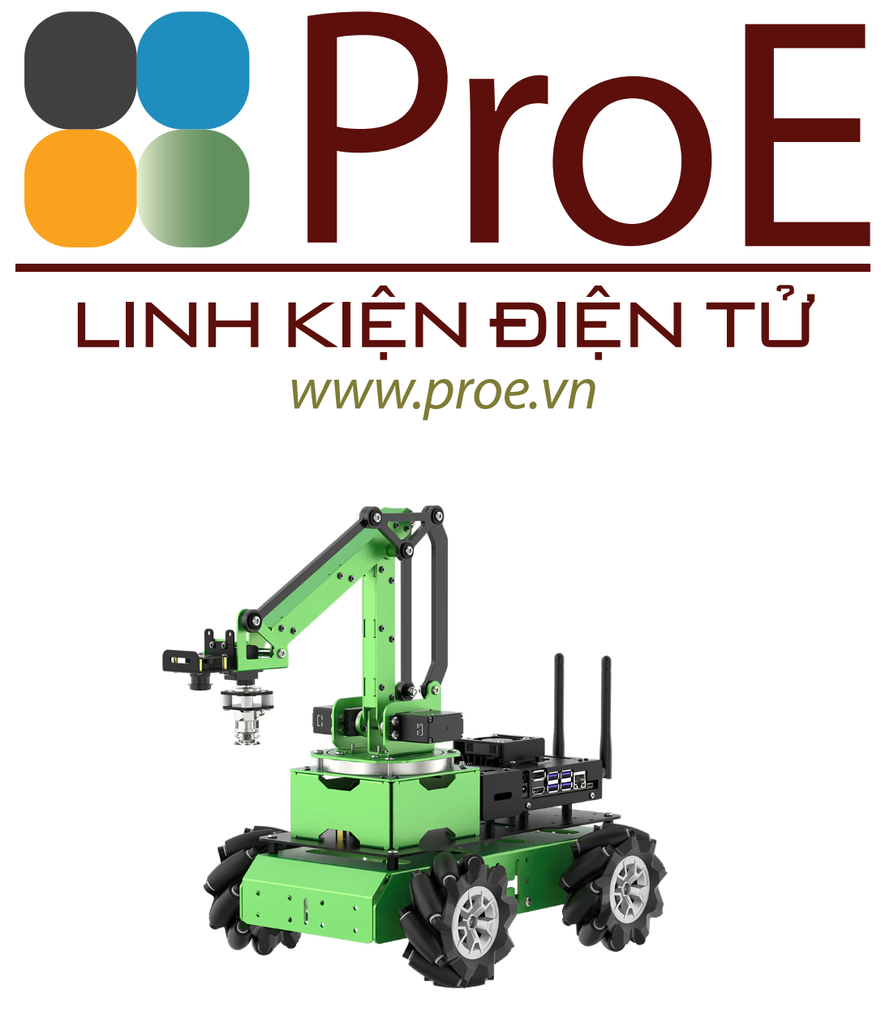

JetMax Pro is a robot model which is expanded with chassis and sliding rail based on AI vision robot arm JetMax. This delicate combination helps to build intelligent picking and transferring scenarios. Through deep learning and AI vision, JetMax Pro can realize waste sorting, mask identification, object sorting, somatosensory control and many more advanced AI functions.

360° Omni-directional Movement, Abundant AI Games

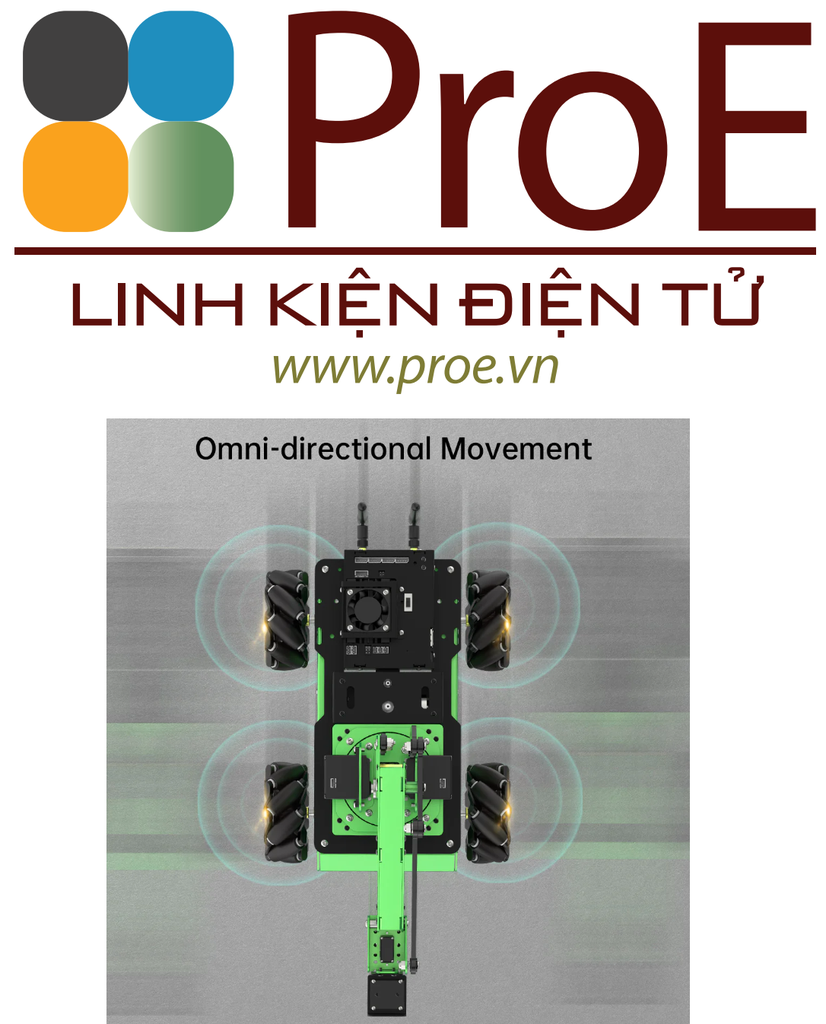

360° Omni-directional Movement

With 4 high-performance encoder geared motors and 4 omni-directional mecanum wheels, JetMax Pro can realize 360° movement. Different movement modes (move forward, horizontally, diagonally and rotate) and excellent performance make it bold to challenge various complicated routes.

APP & Wireless Handle Control

Via WonderAi APP, you can control JetMax Pro at your fingertips and view FPV image transmitted by camera. Besides, it can be controlled by wireless handle without complex configuration.

Transfer and Sort

Camera mounted on robot arm serves as JetMax Pro's eye. It is able to follow the line to move while recognizing AprilTag block on the line. When recognizing AprilTag, it will transfer the block to specific position.

Fingertips Control

Based on MediaPipe framework, JetMax Pro can recognize fingertip trajectory, then execute corresponding task.

Target Tracking

JetMax Pro keeps detecting object within its field of view. Once it finds the target, chassis will be controlled by PID algorithm to move and track the target.

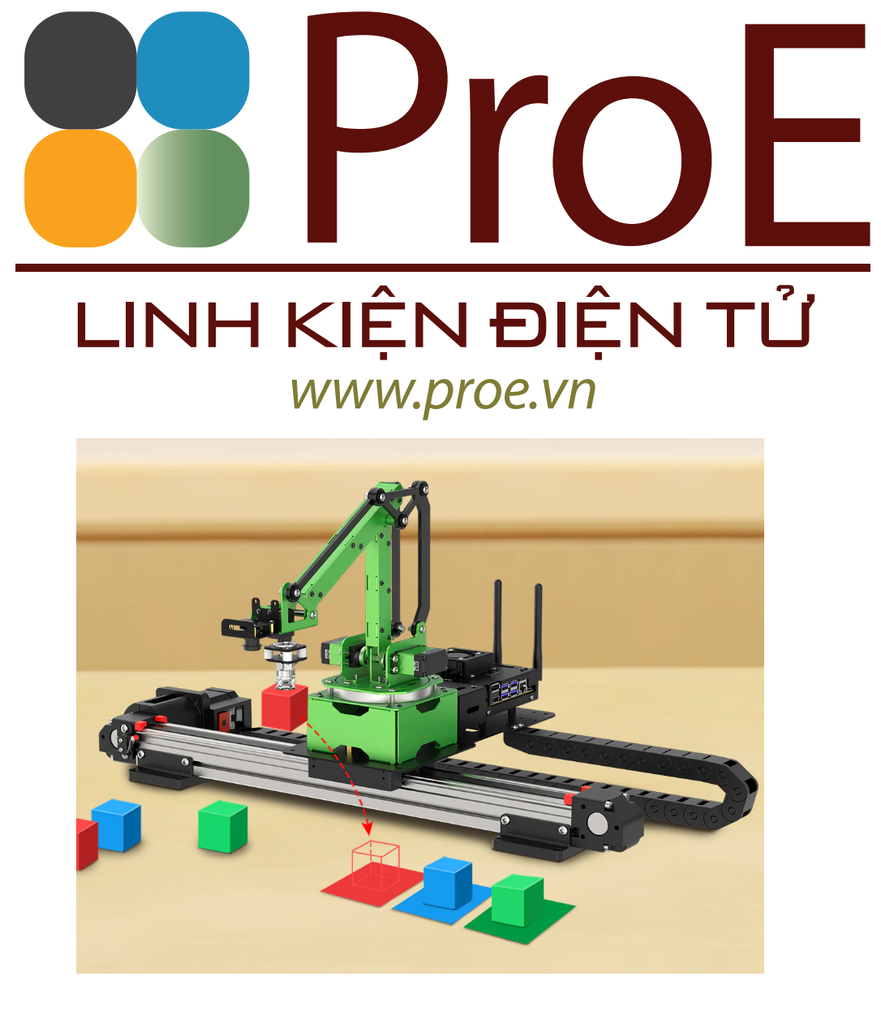

Simulate Industry Automation Scenario

Compatible with electric sliding rail. Through IIC communication, robot arm’s controller can directly control stepper motor on sliding rail to rotate to enlarge its reach. Travel distance of sliding rail can also be calculated to ensure precise transferring, sorting and stacking.

Wireless Handle Control

With wireless handle, you can control end effector on the robot arm, as well as control sliding rail to move left or right so as to expand robot arm’s operation range.

Waste Sorting Workshop

Through loading the trained models, robot arm recognizes waste cards, then slide to transfer them to specific sorting area.

Tag Sorting Workshop

Having recognizing ApriTag on the block, robot arm slides a long distance to sort and stack blocks.

ROS Robot Operating System

Global Popular Robotic Communication Framework

ROS is an open-source meta operating system for robots. It provides some basic services, such as hardware abstraction, low-level device control, implementation of commonly used functionality, message-passing between processes, and package management. And it also offers the tools and library functions needed to obtain, compile, write, and run code across computers. It aims at providing code reuse support for robotics research and development.

Product Structure

Core Accessories

Multi-functional Expansion Board

There are 2-channel PWM servo ports, three DC motor ports, two serial bus servo ports, a buzzer, two keys, serial port, two GPIO expansion ports and two IIC interfaces on it.

Hall Encoder Geared Motor

520 motor comes with high-accuracy encoder, and features strong force and high performance. The built-in AB phase incremental Hall encoder stands out for its high accuracy and anti-interference ability.

11.1 V 6000mAh Lipo Battery

This large-capacity Lipo battery can better power the robot and prolongs robot's working life.

Encoder Motor Driver

JetMax Pro is equipped with 4-channel encoder motor driver making it easier to control motor.

Product Parameter

Robot Arm

Mecanum Wheel Chassis

Electric Sliding Rail

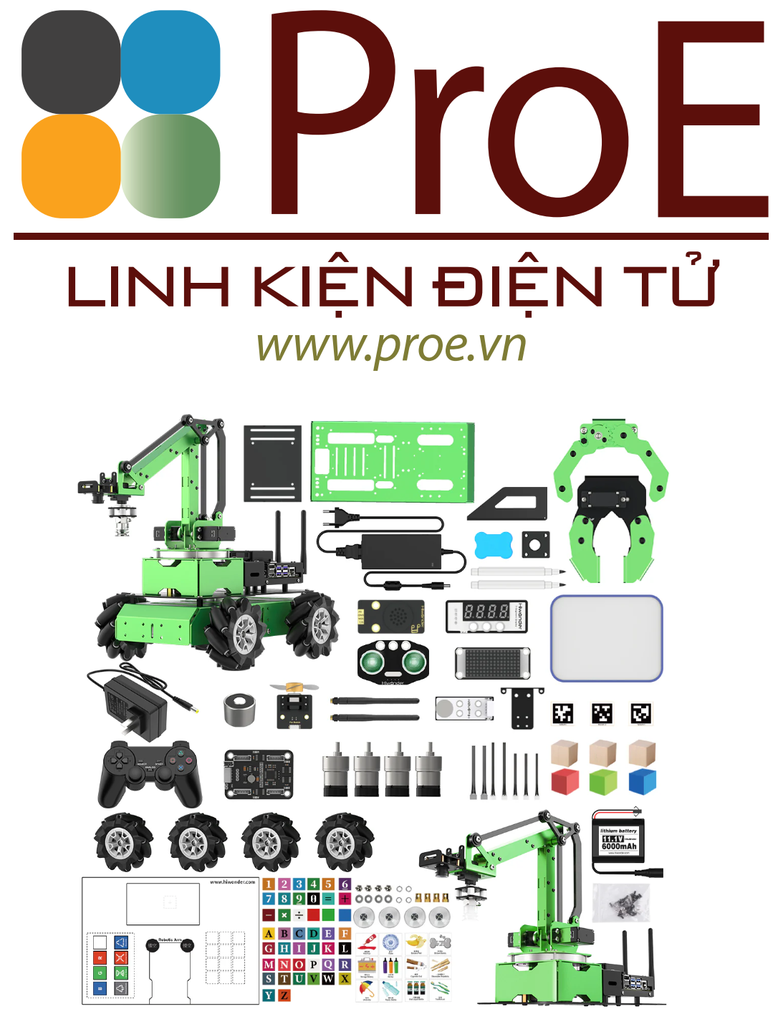

Package List

JetMax Robot Arm

Mecanum Wheel Chassis

Electric Sliding Rail
