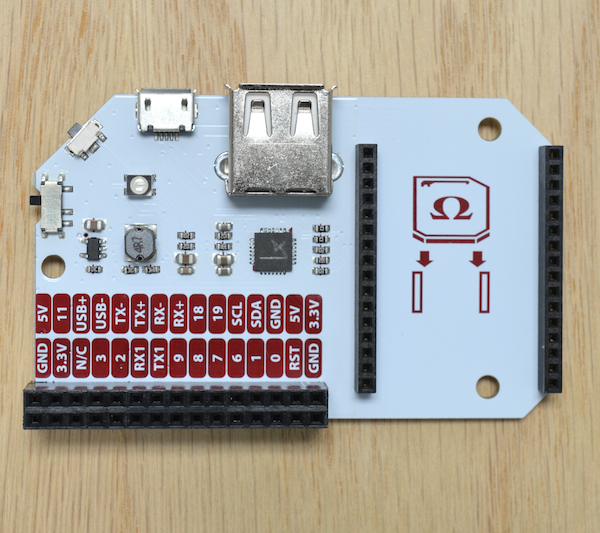

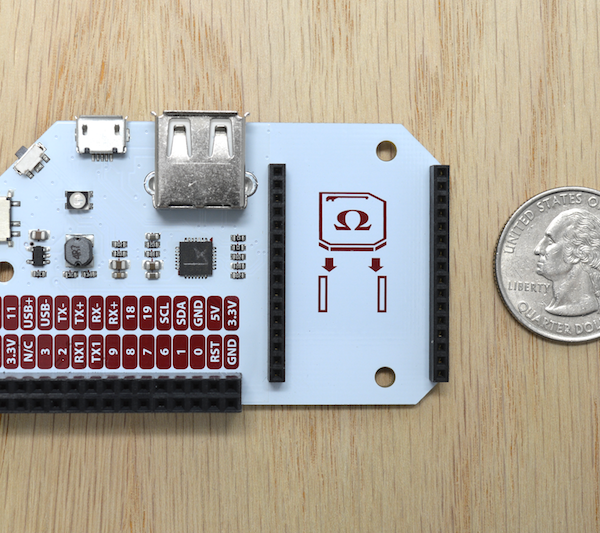

EXPANSION DOCK cho Omega2 Computer

The Expansion Dock provides an easy way to power the Omega with any Micro USB cable and breaks out the Omega’s GPIO pins. You can use them to control external circuits or connect Expansion boards to extend the functionality of your Omega. It also comes with an on-board USB-to-serial chip that allows you to access the terminal directly from your computer.

PRODUCT DESCRIPTION

The Expansion Dock is the perfect companion for the Omega, making it incredibly convenient and easy to use as well as exposing a variety of the Omega’s features. We strongly recommend getting a Dock for your Omega to get the best experience and most performance, functionality, and stability from your device.

Convenience

You can provide power to the Omega and Dock with any Micro USB cable. The Dock includes a regulator circuit that ensures the Omega always receives the stable 3.3V it needs to operate optimally.

Functionality

The Dock exposes several of the Omega’s features to the user:

• The Omega’s GPIOs are exposed on the Expansion Header. Use the header to plug in Onion Expansions or connect to external circuits
• Connect USB devices directly to your Omega
• Control the RGB LED on the Dock using the Omega’s GPIOs
• Press the Reset Button to reboot your Omega, hold it for 10 seconds to perform a factory restore
• Turn your Omega on and off with the Power Switch

Modular

Compatible with all Omega Expansions. Extend the functionality of your Omega by connecting one of our plug and play Expansions.

Ease of Use

Thanks to the on-board USB-to-Serial chip, you will always have access to the Omega’s serial terminal. No network connectivity required, just a solid USB connection. The serial terminal is especially handy when accessing the bootloader to reflash your Omega.

Technical Details

• 1x Micro USB Port – Power and serial terminal access
• 1x USB-A Port – Connect USB devices to the Omega
• 1x On-board RGB LED
• 1x Reset Button
• 1x Power Switch
• 30-pin Expansion Header
