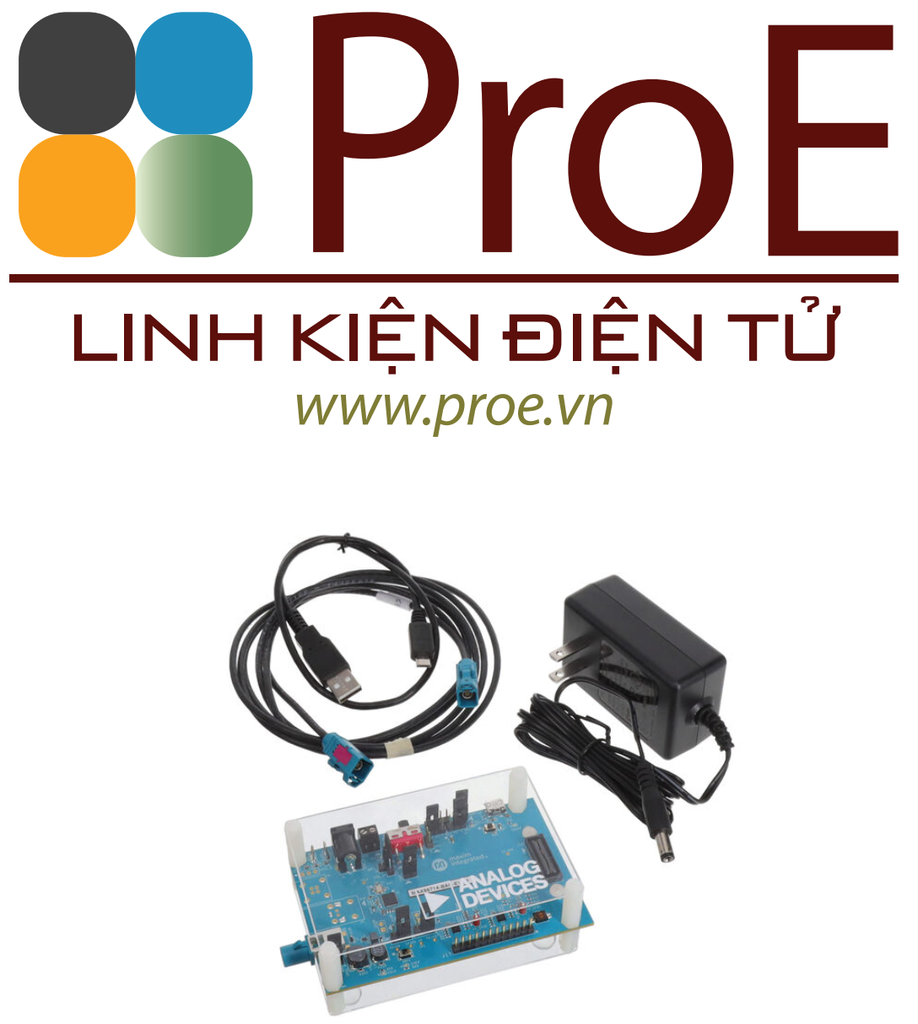

• Serializer EV kit Sends GMSL Data to a Deserializer which then Converts into MIPI CSI-2
• Proven PCB Layout
• Fully Assembled and Tested
• Accepts GMSL-2 Serial Data through FAKRA Connectors, and Outputs CSI-2 Data
• USB-Controlled Interface (Cable Included)
• USB, 12V Wall, Power-Over-COAX (PoC*), or Externally Powered
• 12V Wall-Type Power Supply
• COAX Connector*
• HSD Connector*
• HMTD Connector*
• Windows 7 and Windows 10-Compatible Software

Note: In the following sections, “serializer” means MAX96717, and “deserializer” means MAX96714, MAX96714F, and MAX96714R.

Note: This document applies to both Coax HSD-STQ and HMTD-STP evaluation kits. The Coax cable is referenced in this document.
