Summary

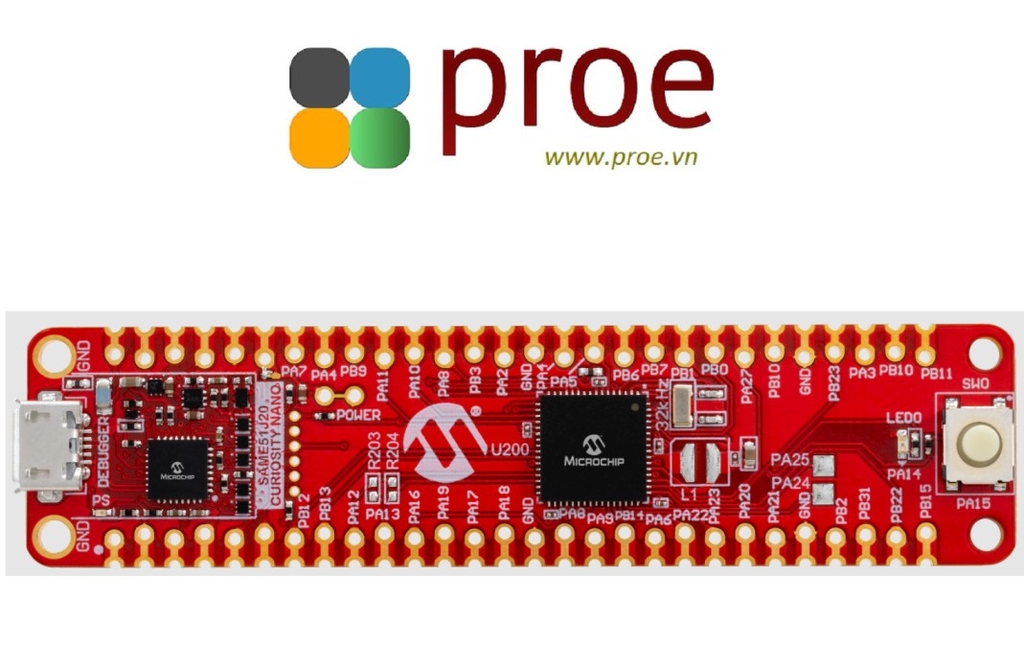

The SAM E51 Curiosity Nano Evaluation Kit is a hardware platform to evaluate the SAME51J20A microcontroller (MCU). It is supported by the MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony v3 software development framework. The evaluation kit provides easy access to the features of the SAM E51 MCU to integrate the device into a custom design. Because the evaluation kit contains an On-Board Nano Debugger for programming and debugging, no external tools are necessary to program the SAME51J20A device.

Product Features

• • One user LED (yellow)
  • One mechanical user switch
  • On-board debugger
    • Board identification in MPLAB X IDE
    • One power/status LED (green)
    • Programming and debugging
    • Virtual COM port (CDC)
    • One logic analyzer (DGI GPIO)
  • USB powered
  • Adjustable target voltage
    • MIC5353 LDO regulator controlled by the on-board debugger
    • 1.8-3.6v output voltage
    • 500 mA maximum output current (limited by ambient temperature and output voltage)
