Ethernet / USB HUB HAT (B) for Raspberry Pi Series, 1x RJ45, 3x USB 2.0

  • Mã sản phẩm: ETH/USB HUB HAT (B)
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
350.000₫
PACKAGE CONTENT

Weight: 0.026 kg

  1. ETH/USB HUB HAT (B) x1
  2. Screws pack x1

1

2

Ethernet / USB HUB HAT (B) For Raspberry Pi Series, 1x RJ45 Ethernet Port, 3x USB 2.0 Ports

Ethernet / USB HUB HAT (B)

Suitable for Raspberry Pi series

1x RJ45 Ethernet Port | 3x USB 2.0 Ports

Features At A Glance

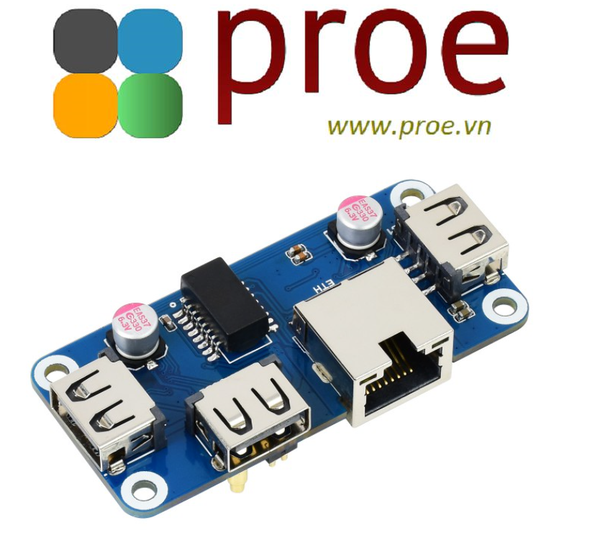

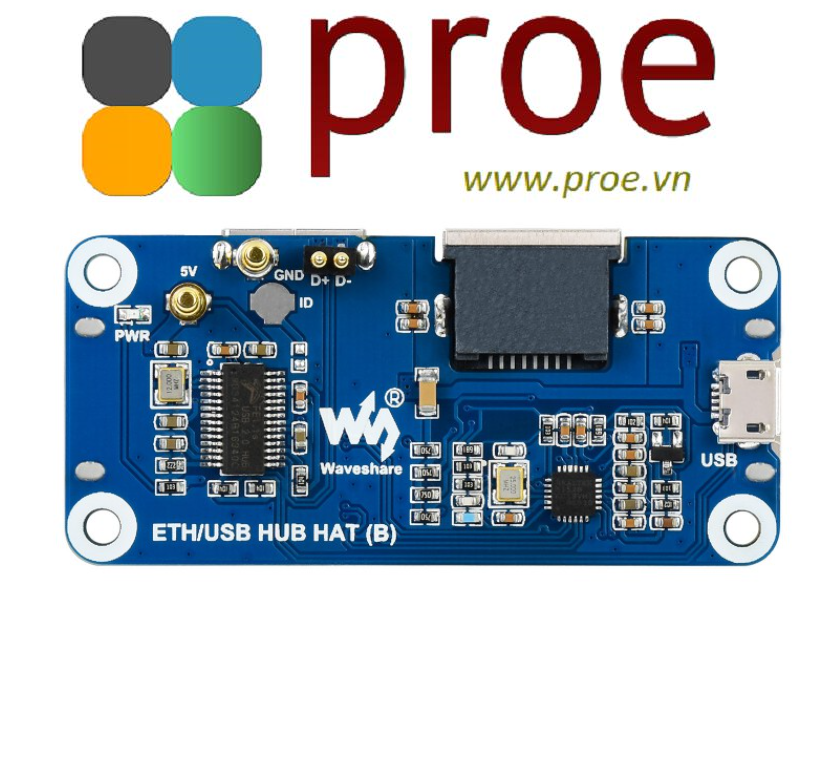

The ETH/USB HUB HAT (B) is an Ethernet and USB HUB designed for Raspberry Pi, providing 1x RJ45 Ethernet port and 3x USB 2.0 ports. It's pogo pin design is specialized for Zero series, while the onboard normal USB connector can be used to connect with other Raspberry Pi boards through a USB cable.

  • 3x extended USB ports, compatible with USB 2.0 / 1.1
  • Incorporates RTL8152B Ethernet chip, supports 1x RJ45 Ethernet port, 10/100M auto-negotiation
  • Pogo pin design, for direct connecting with Raspberry Pi Zero/Zero W/Zero WH
  • USB HUB connector, for connecting with Raspberry Pi 4B/3B+/3A+/2B through USB cable

Compatible With Raspberry Pi Series

Specialized Pogo Pin For Zero Series, Plug-And-Play, Without Preventing Other HATs
Normal USB HUB Connector For Other Raspberry Pi Boards Or PC



Extended Ports

1x RJ45 Ethernet Port, 10/100M Auto-Negotiation
3x USB 2.0 Ports, Compatible With USB 2.0 / 1.1

Outline Dimensions

Resources & Services

Wiki: ETH/USB_HUB_HAT_(B)
