ESP32-S3-LCD-1.47

Package Content

Weight: 0.01 kg

1. ESP32-S3-LCD-1.47 x1
2. Black header ×1

1

2

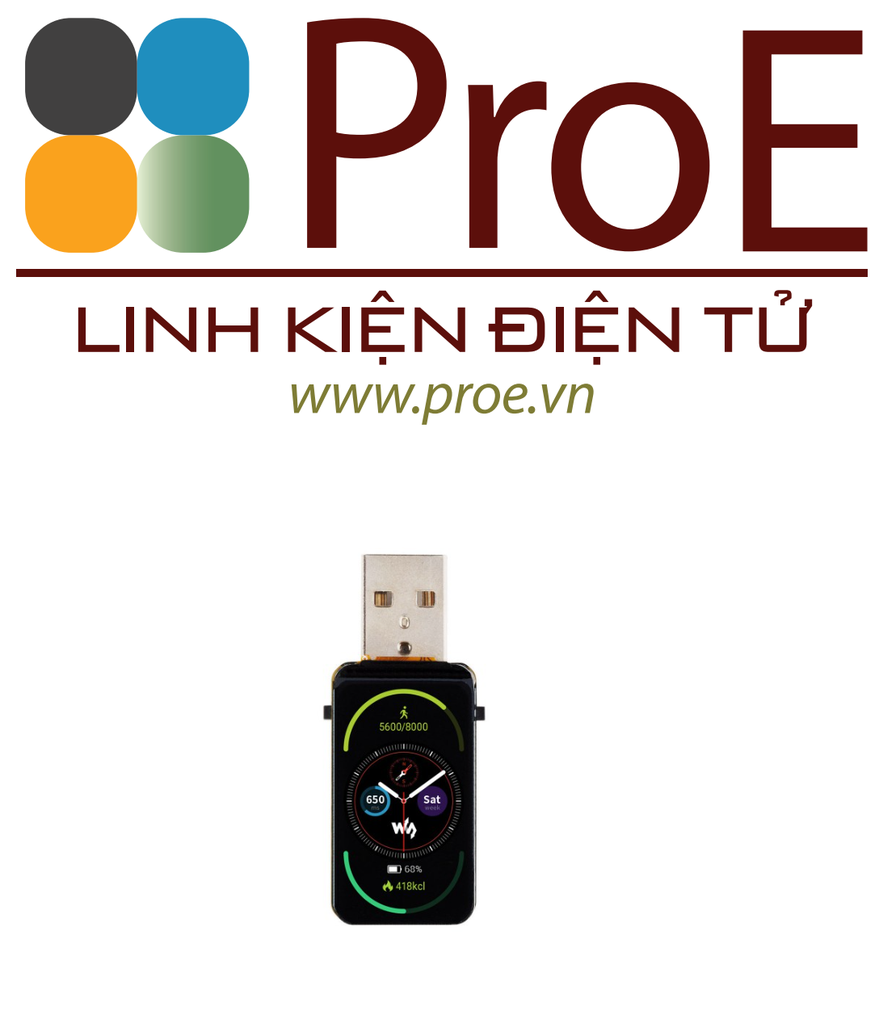

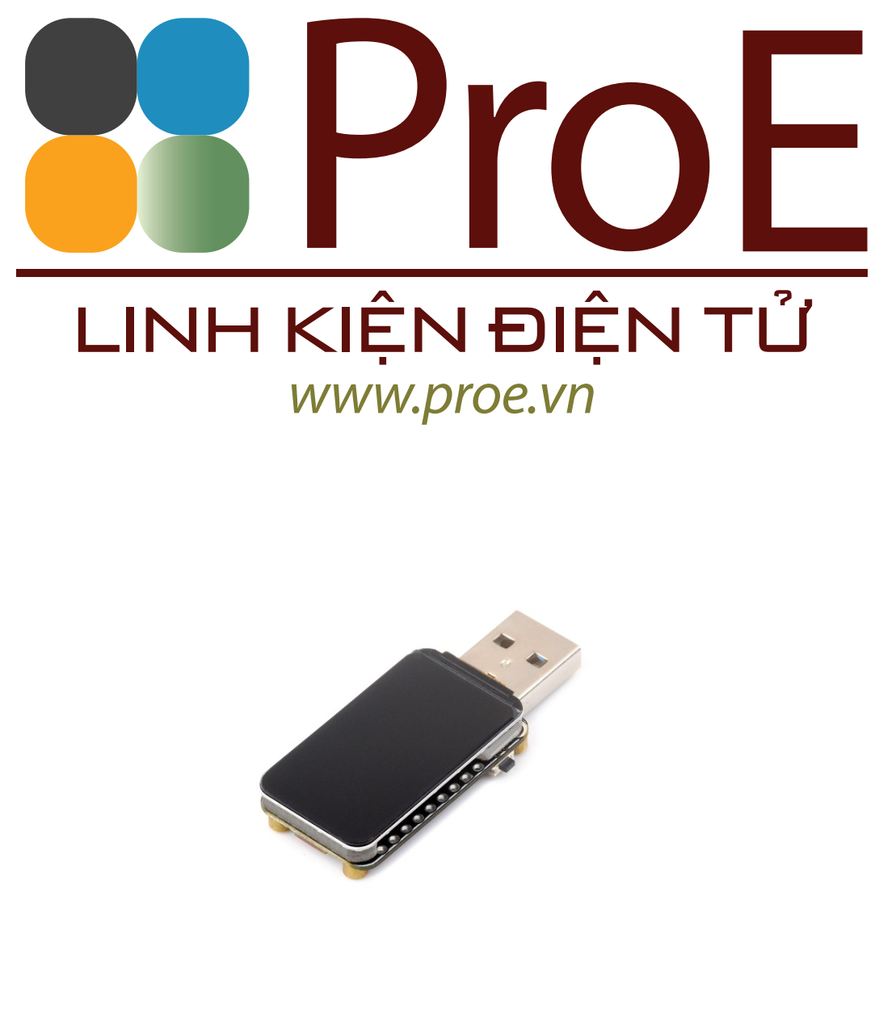

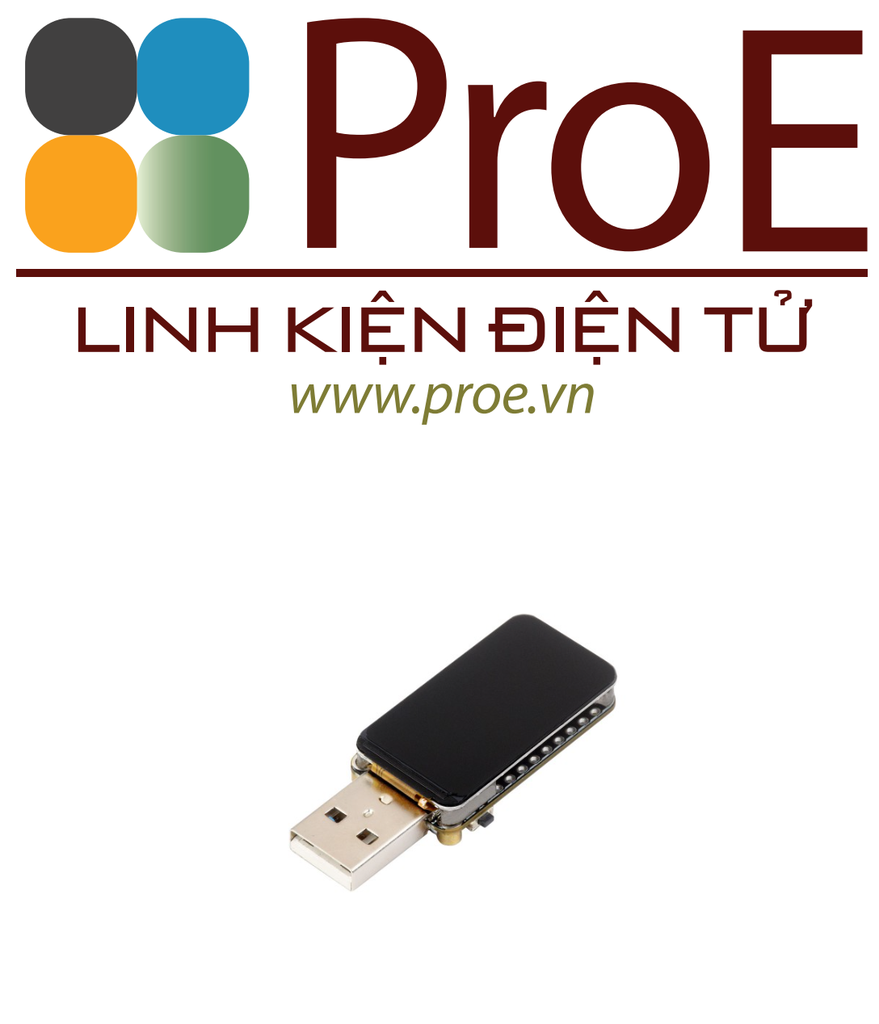

ESP32-S3 1.47inch Display Development Board, 172×320, 262K Color, Dual-core Processor Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Colorful RGB LED, ESP32 With Display

ESP32-S3-LCD-1.47

Integrates LCD display, onboard TF card slot and multiple peripheral interfaces

* for reference only, please refer to the actual display effect

Features

ESP32-S3-LCD-1.47 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47inch LCD screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications.

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• Onboard 1.47inch LCD display, 172×320 resolution, 262K color
• Adapting multiple IO interfaces, integrates full-speed USB port
• Onboard TF card slot for external TF card storage of pictures or files
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
• Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects

Application Scenarios

* for reference only, please refer to the Package Content for detailed part list

Supports multiple peripherals

Supports the expansion of multiple peripherals via GPIO header

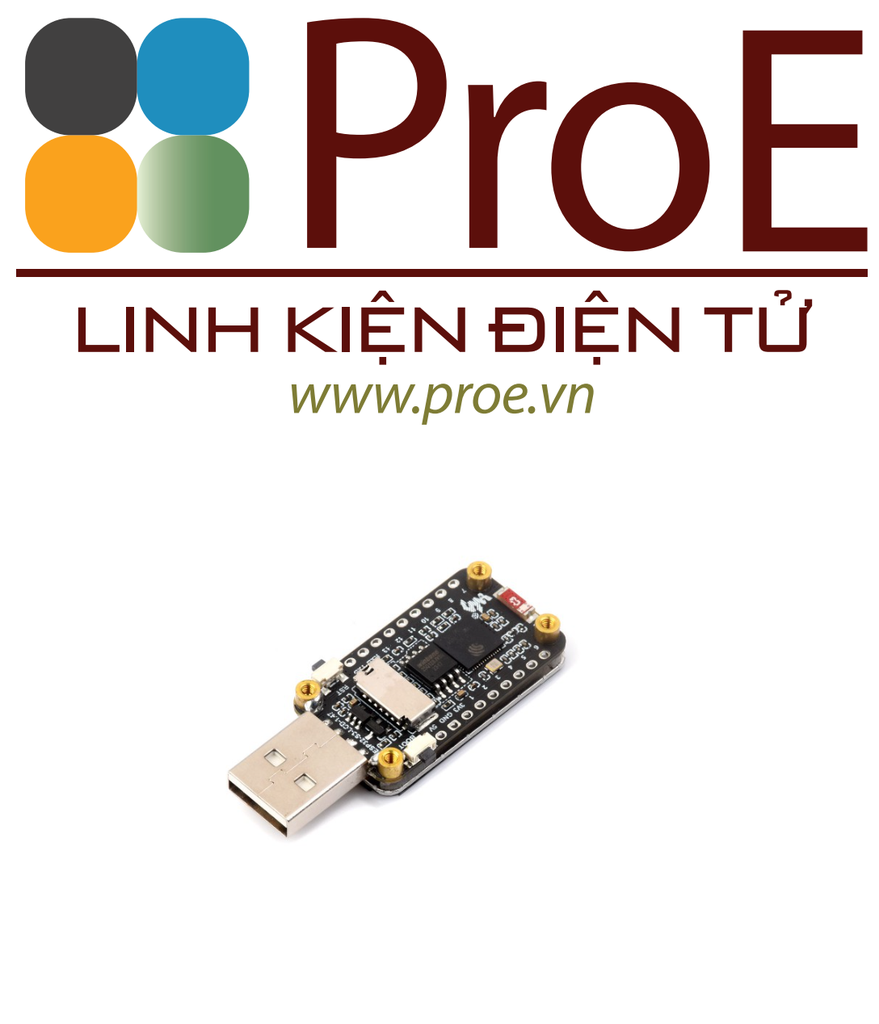

What's On Board

1. ESP32-S3R8
   dual-core processor, up to 240MHz operating frequency
2. 16MB Flash
3. TF card slot
4. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)

5. Onboard ceramic antenna
6. RESET button
7. BOOT button

outline dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/ESP32-S3-LCD-1.47
