ESP32-C6 Mini Development Board, Based on ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board

Wiki: www.waveshare.com/wiki/ESP32-C6-Zero

PACKAGE CONTENT

Weight: 0.003 kg

ESP32-C6-Zero

ESP32-C6-Zero x1

ESP32-C6-Zero-M

ESP32-C6-Zero with pre-soldered header x1

DESCRIPTION

ESP32-C6 Mini Development Board, Based On ESP32-C6FH4, Dual Processors, 160MHz Running Frequency, 2.4GHz WiFi 6 & Bluetooth 5, ESP32 Development Board

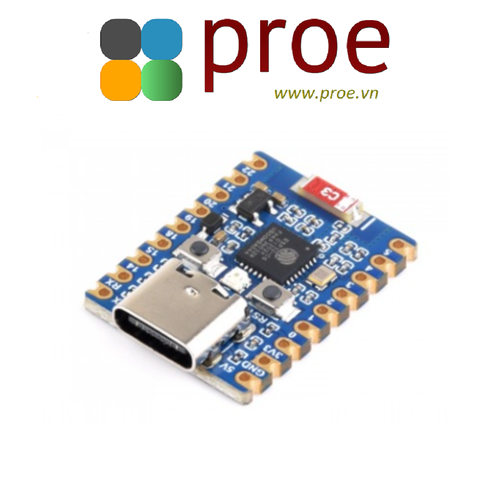

ESP32-C6-Zero WiFi 6 Development Board

Based on ESP32-C6FH4, onboard multi-function GPIO pins

Castellated Module, Suitable For SMD Applications

Board Specifications

• Equipped with a high-performance 32-bit RISC-V processor with clock speed up to 160 MHz, and a low-power 32-bit RISC-V processor with clock speed up to 20MHz
• Built in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance
• Castellated module and onboard ceramic antenna, allows soldering directly to carrier boards
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
• Onboard USB Type-C port, 22 × GPIO pins allows flexibly configuring pin functions

Version Options

ESP32-C6-Zero
without pinheader

ESP32-C6-Zero-M
with pre-soldered header

ESP32-C6 Suitable For AIoT Applications

Powered By A High-Performance 32-Bit RISC-V Processor And A Low-Power 32-Bit RISC-V Processor, The Main Frequency Is Up To 160 MHz, Powerful AI Computing Capability & Reliable Security Features

WIFI 6 And BLE 5 Support

ESP32-C6 Integrates 2.4 GHz Wi-Fi 6 (802.11 Ax/B/G/N) With 40 MHz Of Bandwidth Support, Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh

Supports ESP-IDF, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

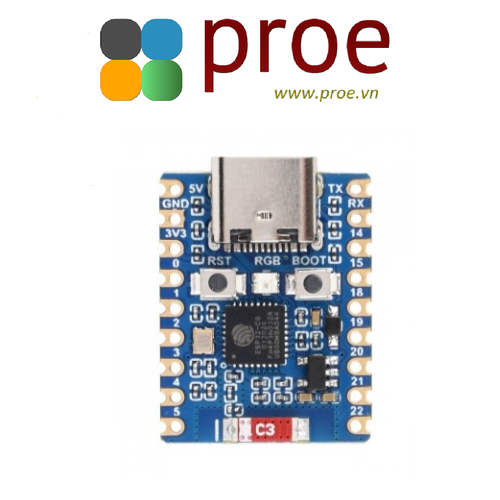

What's On Board

1. ESP32-C6FH4
   Built-in dual processors, main frequency is up to 160 MHz
2. USB Type-C Port
   for downloading programme and debugging
3. ME6217C33M5G
   low dropout LDO, 800mA (Max)
4. WS2812 RGB LED
5. 2.4G ceramic antenna
6. BOOT button
   Press it and then press the RESET button to enter download mode
7. RESET button
8. ESP32-C6FH4 pins

Pin Definition

Outline Dimensions

Resources & Services
