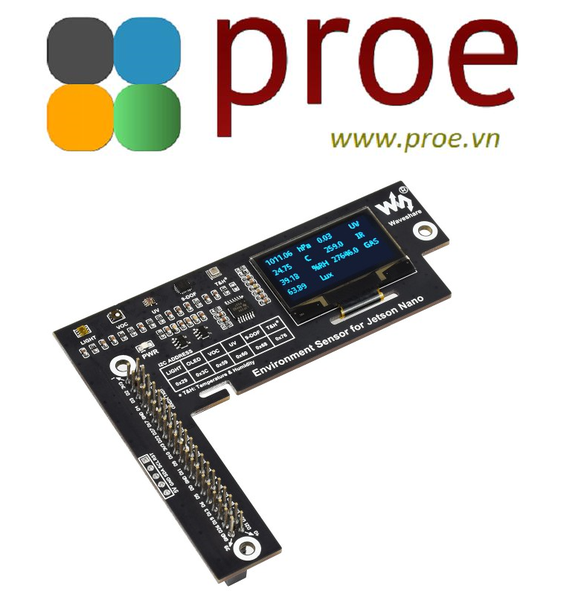

Environment Sensors Module for Jetson Nano, I2C Bus, with 1.3inch OLED Display
- Mã sản phẩm: Environment Sensor for Jetson Nano
- Nhà sản xuất: Waveshare
- Website hỗ trợ: https://www.proe.vn
1.250.000₫
- PACKAGE CONTENT
-
Weight: 0.137 kg
- Environment Sensor for Jetson Nano x1
- Screws pack x1
1
2
Environment Sensors Module Designed For Jetson Nano, I2C Bus, With 1.3inch OLED Display
ENVIRONMENT SENSORS MODULE
This environment sensors module gives Jetson Nano Developer Kit the ability to collect environment data like temperature & humidity, air pressure, ambient light intensity, VOC, IR ray, UV ray, etc. It can also be used to build a robot that can detect motion and orientation.
Features At A Glance
- Onboard TSL25911FN digital ambient light sensor, for measuring IR and visible light
- Onboard BME280 sensor, for measuring temperature, humidity, and air pressure
- Onboard ICM20948 motion sensor, accelerometer, gyroscope, and magnetometer
- Onboard Si1145 sensor, for measuring IR/UV rays
- Onboard SGP40 sensor, for detecting ambient VOC
- Onboard 1.3inch OLED display, for displaying environment data in real time
- I2C bus, allows reading and displaying data by just using two wires
- Comes with development resources and user manual (python examples)
Specifications
| TSL25911FN DIGITAL AMBIENT LIGHT SENSOR | |
|---|---|
| I2C address | 0x29 |
| Effective range | 0~88000Lux |
| BME280 TEMPERATURE, HUMIDITY, AND AIR PRESSURE SENSOR | |
| I2C address | 0x76 |
| Temperature detection | -40 ~ 85℃ (0.01℃ resolution, ±1℃ accuracy) |
| Humidity detection | 0~100%RH (0.008%RH resolution, ±3%RH accuracy, 1s response time, ≤2%RH delay) |
| Air pressure detection | 300~1100hPa (0.18Pa resolution, ±1hPa accuracy) |
| ICM20948 MOTION SENSOR (9-DOF: 3-AXIS ACCELEROMETER, 3-AXIS GYROSCROPE, 3-AXIS MAGNETOMETER) |
|
| I2C address | 0x68 |
| Accelerometer resolution | 16 位 |
| Accelerometer range (configurable) | ±2, ±4, ±8, ±16g |
| Gyroscope resolution | 16 位 |
| Gyroscope range (configurable) | ±250, ±500, ±1000, ±2000°/sec |
| Magnetometer resolution | 16 位 |
| Magnetometer range | ±4900µT |
| SI1145 IR/UV SENSOR | |
| I2C address | 0x60 |
| Response wavelength | 280nm - 950nm |
| SGP40 VOC SENSOR | |
| I2C address | 0x59 |
| Measuring range | 0 ~ 1,000 ppm ethanol equivalent |
| Limit condition | < 0.05 ppm ethanol equivalent OR < 10 % preset concentration point (the larger one should prevail) |
| Response time | < 10 s (tau 63 %) |
| Start time | < 60 s |
| On-chip humidity compensation support | |
| OLED DISPLAY | |
| I2C address | 0x3C |
| Driver IC | SH1106 |
| Resolution | 128x64 |
| Display color | blue |
Onboard 1.3inch OLED
Displaying Collected Environment Data In Real Time

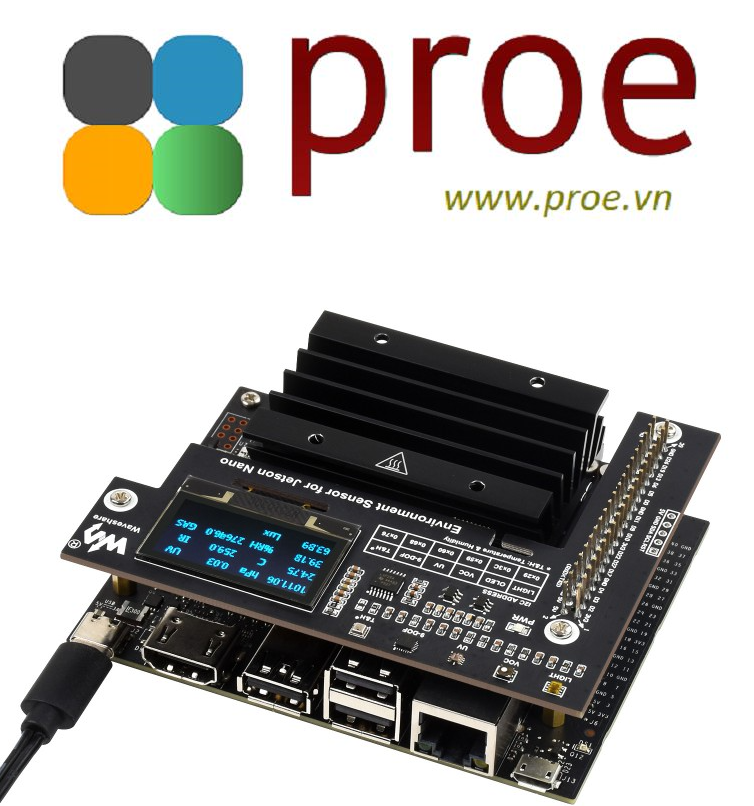

Tailored For Jetson Nano
Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)
What's On Board
- TSL25911FN
digital ambient light sensor, for measuring IR and visible light - SGP40
VOC sensor - Si1145
IR/UV sensor - ICM20948
3-axis accelerometer, 3-axis gyroscrope, 3-axis magnetometer
- BME280
measuring temperature, humidity, and air pressure sensor - 1.3inch OLED
128x64 resolution - Voltage level translator
5V to 3.3V/1.8V
Outline Dimensions
Resources & Services
Wiki: Environment_Sensor_for_Jetson_Nano
