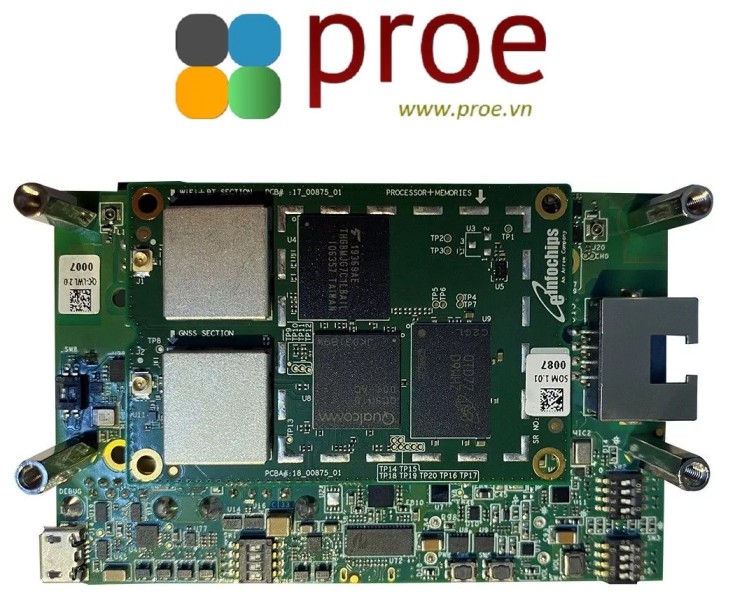

EIC-QCS610-210 development kit is based on powerful Qualcomm® QCS610 Octa-core SoC, comprising 64-bit ARM® Cortex™ CPU, Qualcomm® Hexagon™ DSP and an integrated Qualcomm® Adreno™ 608 GPU. Multi-core processing and advanced video codec offers high-resolution video capture at low power. Qualcomm® QCS610 has integrated Qualcomm® Wi-Fi 802.11ac, BT 5.0, Ethernet/RGMII. eInfochips QCS610 kit is a combination of Qualcomm® QCS610 based SoM and a carrier board. The kit comes with a pre-built Linux BSP that can help in early prototyping and parallel software development. This development kit an ideal platform to kick-start development of Enterprise Security Cameras, IP Cameras, Dash Cam and Body Cam, Audio/Video Collaboration, Home/Industrial Automation, Tele-diagnostics, Smart Display, Videoconferencing, and Industrial IoT
CPU |
|
---|---|
CPU Name |
Qualcomm® QCS 610 |
CPU Type |
Qualcomm® Kryo™ 460 |
CPU Cores |
|
Memory |
|
---|---|
LPDDR4 |
2GB LPDDR4x |
Flash |
16GB eMMC 5.1 |
MULTIMEDIA |
|
---|---|
Graphics Controller |
Adreno 608 |
Video Encode |
Video encode up to 4K30 |
Video Decode |
Video decode up to 4K30 |
Camera Interfaces |
3x 4-Lane MIPI CSI D-PHY or 3x 3-Trio MIPI CSI C-PHY |
DISPLAY |
|
---|---|
DSI |
1x 4-Lane MIPI DSI DPHY (on board-to-board connector) |
NETWORKING |
|
---|---|
Wi-Fi |
Qualcomm® Wi-Fi (WCN3980) 802.11a/b/g/n/ac - 2.4/5.0 GHz, 1×1 with MIMO |
Bluetooth |
Bluetooth 5.0 |
GPS |
SDR660G |
AUDIO |
|
---|---|
Audio |
Qualcomm® WCD9341 audio codec on-board |
CONNECTIVITY |
|
SD |
1x SDC 3.0 |
USB |
1x USB 3.1 (USB 3.1 & USB 2.0 capable) |
Ethernet |
1x Gigabit Ethernet (RGMII) |
UART |
1x UART |
SPI |
2x SPI |
I2S |
2x I2S |
I2C |
3x I2C |
GPS |
GPS (GNSS, GLONASS) |
GPIO |
Available on board-to-board connector |
OS SUPPORT |
|
---|---|
OS |
Linux |
MECHANICAL SPECIFICATIONS |
|
---|---|
Carrier Board Dimensions (W x L) |
85 mm x 54 mm |
ELECTRICAL SPECIFICATIONS |
|
---|---|
Supply voltage |
12V/5A DC Main Supply (supplied using carrier board) |
Digital I/O voltage |
1.8 V |
KIT DETAILS |
|
---|---|
Kit Contents |
|
