DRV8874EVM DRV8874 single H-bridge motor driver evaluation module

Description

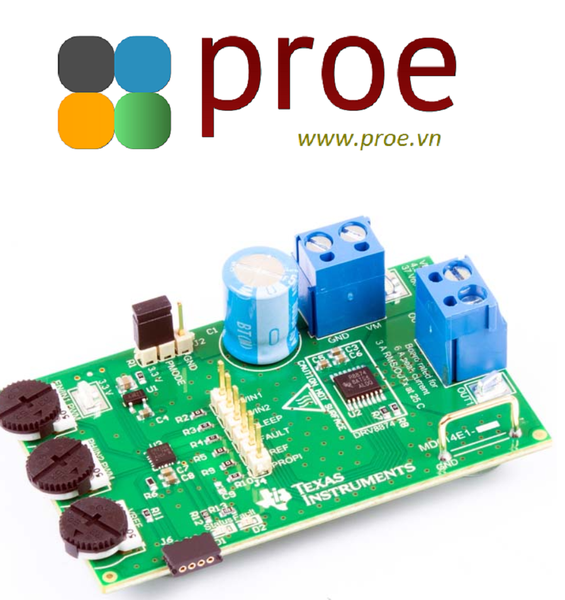

The DRV8874 evaluation module (EVM) allows easy evaluation of the DRV8874 device.

The DRV8874 device is an integrated H-bridge driver for brushed DC and solenoid applications. The evaluation module allows the device to be configured for PWM, phase/enable, or independent half-bridge control modes. An MSP430FR2100 on the board provides PWM signals to the input pins of the DRV8874EVM. The duty cycles of the PWM signals are set by potentiometers on the board.

For more information on this evaluation module please refer to the DRV8874EVM User's Guide.

Features

•             4.5-V to 37-V operating voltage range

•             6-A peak current

•             Configurable control modes including PH/EN, PWM, and independent half-bridge

•             Integrated current sense and current regulation

What's Included

•             DRV8874EVM board
