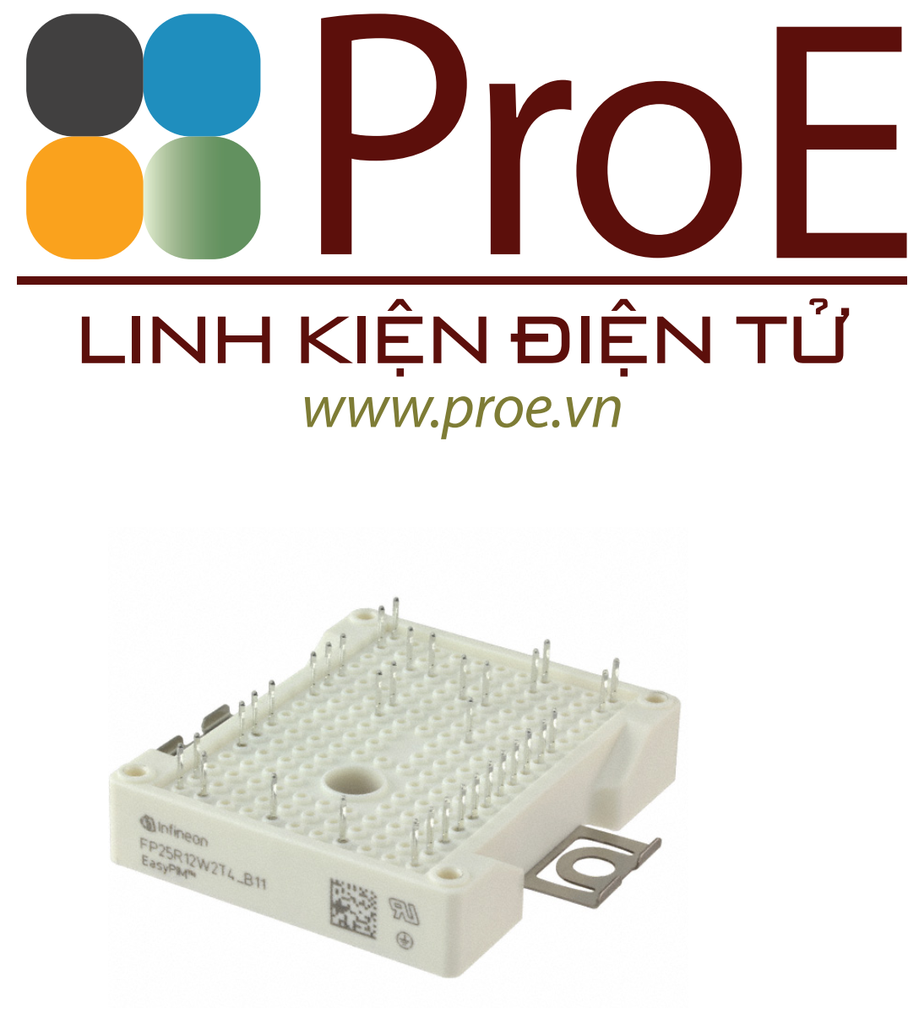

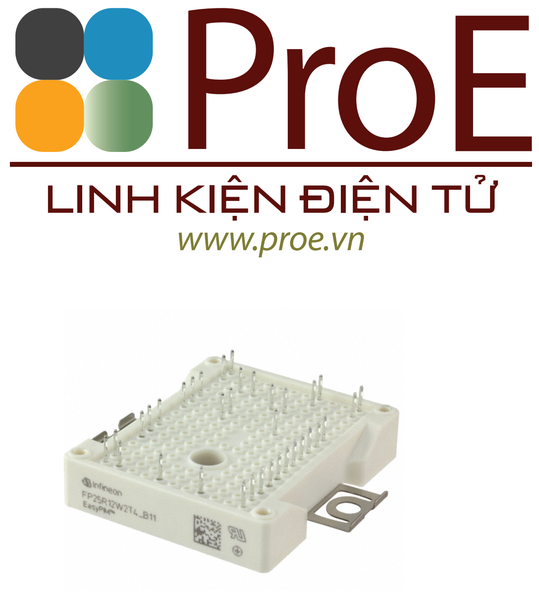

IGBT MOD 1200V 39A 175W MOD

EasyPIM™ 2B 1200 V, 25 A reverse conducting PIM IGBT module with fast TRENCHSTOP™ IGBT4, Emitter Controlled 4 diode and NTC. Also available with Thermal Interface Material . The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. They are available in Econo2 and Econo3 housing and also available with Solder- or PressFIT pins: FP25R12W2T4_B11

• Configuration
  PIM
• Dimensions (length)
  56.7 mm
• Dimensions (width)
  48 mm
• Housing
  EasyPIM™ 2B
• I_C(nom) / I_F(nom)
  25 A
• I_C max
  25 A
• Qualification
  Industrial
• Technology
  IGBT4 - T4
• V_CE(sat) (Tvj=25°C typ)
  1.85 V
• V_F (Tvj=25°C typ)
  1.75 V
• Voltage Class max
  1200 V
