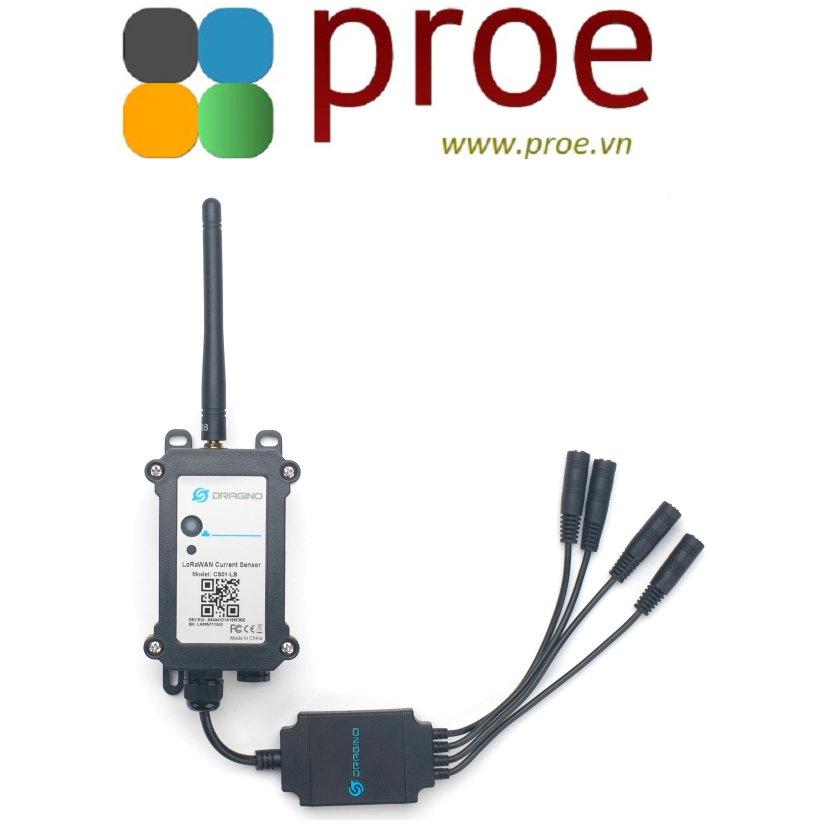

CS01-LB LoRaWAN 4 Channels Current Sensor Converter

The Dragino CS01-LB is a 4 Channels Current Sensor Converter. It can convert the reading from current sensors and upload to IoT server via LoRaWAN Network.

CS01-LB can be used to monitor the machine running status and analyze power consumption trends.

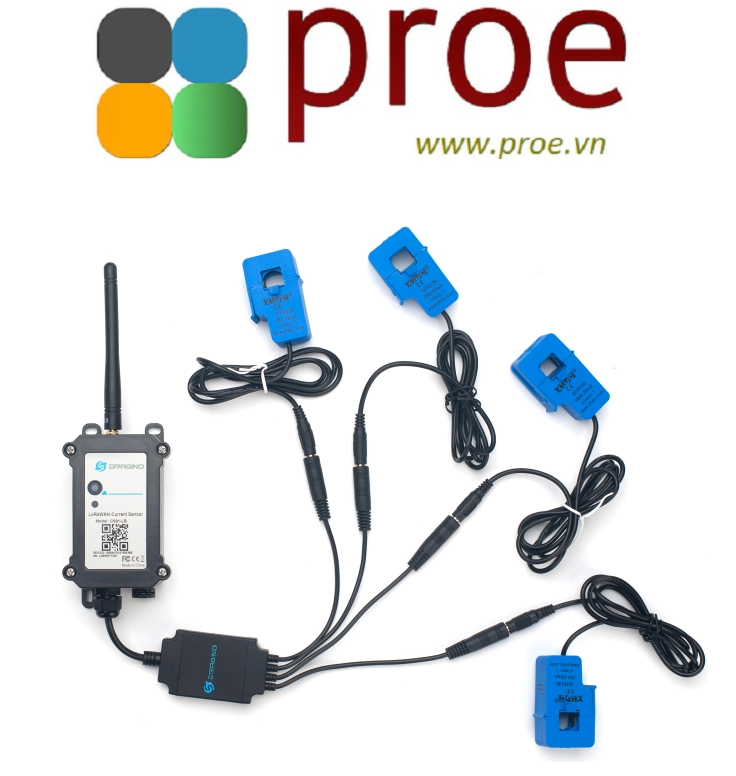

The CS01-LB supports maximum 4 current sensors. The current sensors are detachable and can be replaced with different scales.

CS01-LB supports BLE con­figure and wireless OTA update which makes user easy to use.

CS01-LB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years.

Features:

• LoRaWAN 1.0.3 Class A
• Bands:CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
• Ultra-low power consumption
• Supports maximum 4 current sensors
• Support various current sensor Ratio: 50A, 100A etc.
• Monitor the machine running status
• Analyze power consumption trends
• Current Alarm
• Uplink on periodically
• Downlink to change configure
• Support BLE and LoRaWAN remote configure
• Support wireless OTA update firmware
• 8500mAh Li/SOCl2 Battery

Specification:

Common DC Characteristics:

• Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
• Operating Temperature: -40 ~ 85°C

LoRa Spec:

• Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
• Max +22 dBm constant RF output vs.
• RX sensitivity: down to -139 dBm.
• Excellent blocking immunity

Battery:

• Li/SOCI2 un-chargeable battery
• Capacity: 8500mAh
• Self-Discharge: <1% / Year @ 25°C
• Max continuously current: 130mA
• Max boost current: 2A, 1 second

Power Consumption:

• Sleep Mode: 5uA @ 3.3v
• LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
