Compute Module IO Board with PoE Feature, for Raspberry Pi CM3 / CM3L / CM3+ / CM3+L

  • Mã sản phẩm: Compute Module PoE Board
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
1.100.000₫
Compute Module IO Board with PoE Feature, Composite Breakout Board for Developing with Raspberry Pi CM3 / CM3L / CM3+ / CM3+L

Overview

The Compute Module PoE Board is a development board which you can plug a Raspberry Pi Compute Module into, and make use of the resources of Pi more flexibly. With the PoE (Power over Ethernet) feature, and versatile onboard peripheral interfaces, it is suitable for evaluating the Raspberry Pi compute module, also is an ideal choice for end products.

Features

  • Raspberry Pi GPIO header, for connecting sorts of Raspberry Pi HATs
  • 10/100M auto-negotiation Ethernet port, with PoE enabled
  • 4x USB ports, allows connecting more USB devices
  • 2x CSI camera interfaces
  • Onboard HDMI / DSI interfaces for connecting displays
  • Onboard USB TO UART, for serial debugging
  • Cooling fan interface, auto run on power up OR controlled by IO pins
  • Adopts isolated SMPS (Switching Mode Power Supply)

Specifications

  • Power supply: micro USB port / PoE Ethernet port
  • PoE power input: 37V ~ 57V DC in
  • PoE power output: 5V 2.5A DC out
  • Network standard: 802.3af PoE standard
  • Dimensions: 114mm × 84.4mm
  • Mounting hole size: 3.2mm

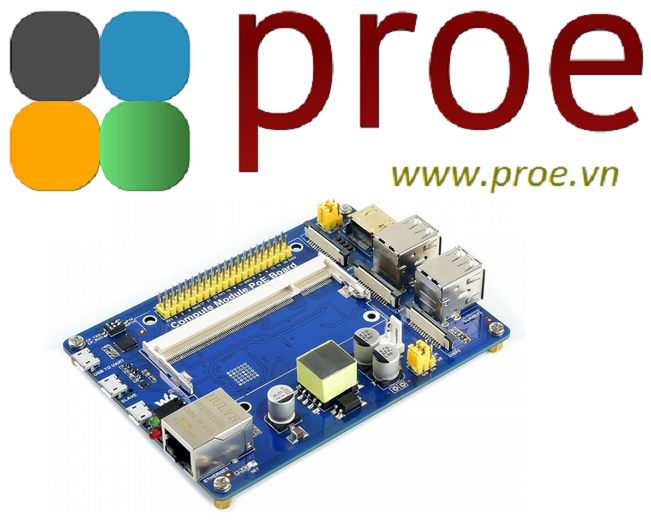

What's on Board

  1. Compute Module interface: for connecting Compute Module (CM3 / CM3L / CM3+ / CM3+L)
  2. Raspberry Pi GPIO header: for connecting Raspberry Pi HATs
  3. PoE enabled Ethernet port: 10/100M auto-negotiation, for connecting router or switch with PoE function
  4. DSI interface: display ports, for connecting Raspberry Pi LCD
  5. USB ports: 4x USB ports, for connecting USB devices
  6. CSI interface: 2x CSI camera ports, for connecting Raspberry Pi Camera
  7. HDMI port
  8. USB TO UART interface: for serial debugging
  9. USB SLAVE interface: allows you to burn system image into Compute Module 3/3+
  10. Power port: 5V 2.5A
  11. TF card slot (bottom side): insert a Micro SD card with pre-burnt system, to start up Compute Module 3/3+ Lite variant
  12. Cooling fan interface

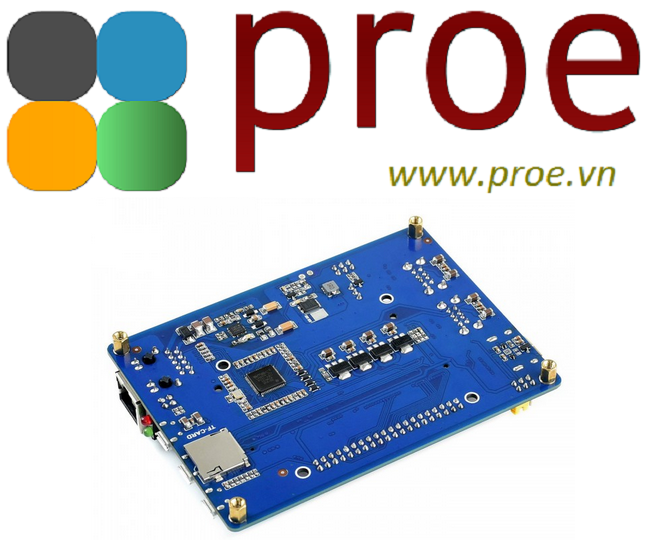

  13. LAN9514 (bottom side): fully-integrated USB hub and 10/100M Ethernet controller
  14. Si3404 PoE power management chip (bottom side)
  15. CP2102 USB TO UART converter
  16. EP13 PoE power transformer
  17. Optical isolator
  18. Two LED indicators:
    Red: Raspberry Pi power indicator
    Green: Raspberry Pi operating status indicator
  19. NET network indicator
  20. VGx power config jumper: config the I/O level
  21. UART output config:
    Left: connect the CP2102 serial port and Raspberry Pi serial port
    Right: disconnect the CP2102 serial port and Raspberry Pi serial port
  22. Cooling fan config:
    P34: the fan is program controlled via P34 pin
    EN: the fan is directly powered from 5V power supply
  23. PoE config:
    DIS: disable PoE
    EN: enable PoE
  24. PoE power voltage measuring pads

Example

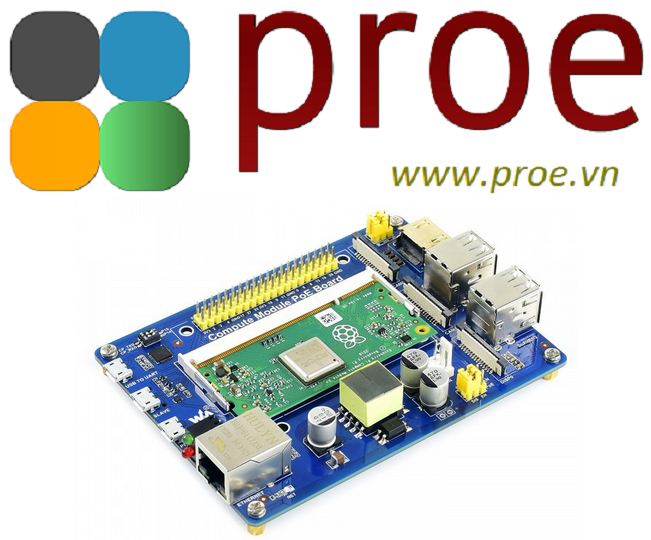

Note: compute module in the photo is NOT included.

Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/Compute_Module_PoE_Board

Package Content

Weight: 0.082 kg

  1. Compute Module PoE Board x1
