CO2-LE LoRaWAN CO₂, Temperature, Humidity & Pressure Sensor

• User Manual -- Online Latest

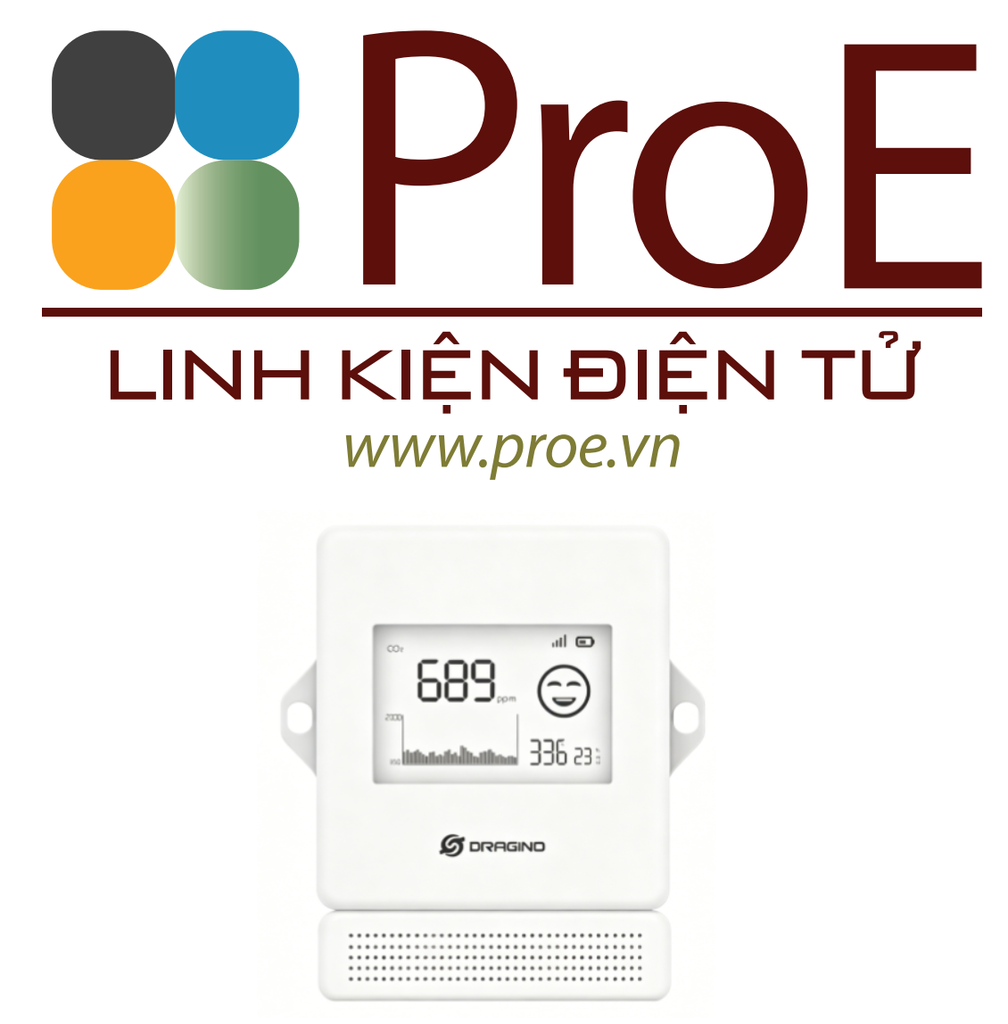

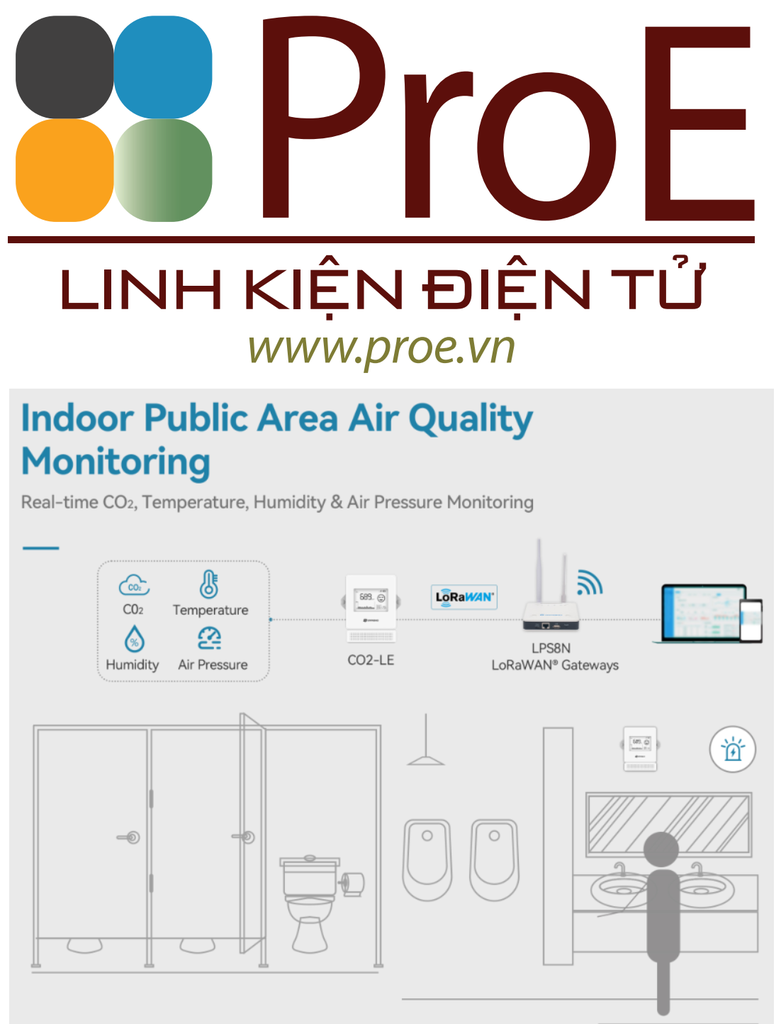

The Dragino CO2-LE is an Indoor LoRaWAN Air Quality Sensor for the Internet of Things solution. It is designed to measure the surrounding environment parameters include: CO₂, Temperature , Relative Air Humidity, Air pressure, and then upload to IoT server via LoRaWAN wireless protocol and shown in a 2.7" E-Ink Display.

CO2-LE is powered by a 2 x ER18505 4000mAh battery. The battery can last more than 2 years and is easy to change.

CO2-LE supports BLE configure and wireless OTA update which make user easy to use.

CO2-LE supports CO₂ Alarm and Temperature Alarm* features, users can get an alarm for instant notice.

CO2-LE supports Datalog feature, User can retrieve the sensor data from LoRaWAN commands.

Note*: CO₂ Alarm and temperature Alarm will decrease a lot the battery life.

Specifications:

Features:

• LoRaWAN 1.0.3 Class A
• Bands: CN470 / EU433 / KR920 / US915 / EU868 / AS923 / AU915 / IN865
• Monitor CO₂ / Temperature / Relative Humidity / Air Pressure
• 2.7"E-Ink Display
• Support CO₂ alarm
• Support Datalog Feature
• Support Bluetooth v5.1 and LoRaWAN remote configure
• Support wireless OTA update firmware
• Uplink on periodically
• Downlink to change configure
• 8000mAh bateries powered(~3.5years for 10minutes uplink interval)

CO₂ Sensor:

• Target gas: Carbon dioxide(CO₂)
• Operating principle: Non-dispersiveinfrared(NDIR)
• Operating range: 0-50°C, 0-85% RH(non-condensing)
• Measurement range: 400ppm to 5000 ppm (extended range up to 10000 ppm )
• Accuracy: Typ ±(50 ppm +3% of reading)
• Pressure Compensation

Temperature Sensor:

• Range: -40 to + 80 °C
• Accuracy: ±0.2@ 0-90 °C
• Resolution: 0.1°C
• Long Term Shift: <0.03 °C/yr

Humidity Sensor:

• Range: 0 ~ 99.9% RH
• Accurancy: ± 3%RH (0 ~ 100%RH)
• Resolution: 0.1% RH
• Long Term Shift: <0.25 %RH/yr

Air Pressure:

• Range: 300 ~ 1100hPa
• Accuracy: ±0.3 hPa

Package Includes:

• 1 x CO2-LE LoRaWAN CO₂, Temperature, Humidity & Pressure Sensor x 1

Part Number: CO2 -LE-XX

 XX: the default frequency band

• EU433: Default frequency band EU433
• CN470: Default frequency band CN470
• EU868: Default frequency band EU868
• IN865: Default frequency band IN865
• KR920: Default frequency band KR920
• AS923: Default frequency band AS923
• AU915: Default frequency band AU915
• US915: Default frequency band US915
