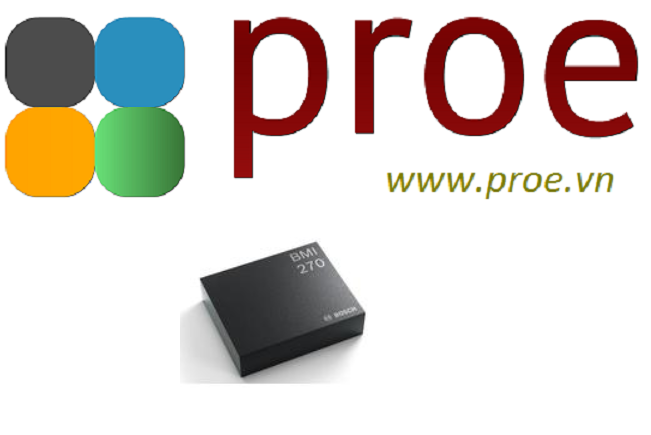

BMI270 is an ultra-low power IMU optimized for wearable applications. The IMU combines precise acceleration and angular rate measurement with intelligent on-chip motiontriggered interrupt features. The 6-axis sensor combines a 16-bit triaxial gyroscope and a 16-bit triaxial accelerometer in a compact 2.5 x 3.0 x 0.8 mm LGA package.
- Wearables
- Hearables
- Smart clothing
- Augmented / virtual reality (AR/VR)
Digital Resolution
- Accelerometer:- 16-bit or 0.06 mg/LSB
- Gyroscope:- 16-bit or 0.004 dps/LSB
Programmable measurement range and sensitivity
- Accelerometer:- ±2 g: 16384 LSB/g to ±16 g: 2048 LSB/g
- Gyroscope:- ±125 dps: 262.1 LSB/dps to ±2000 dps: 16.4 LSB/dps
Zero-g/Zero-rate offset
- Accelerometer:- ±20 mg
- Gyroscope:- ±0.5 dps
Sensitivity Error
- Accelerometer:- ± 0.4%
- Gyroscope:- ± 0.4% (with CRT)
Digital inputs/outputs
- 2x SPI; 2x I2C; AUX I/F; OIS I/F 2x digital interrupts
EU RoHS | Compliant with Exemption |
ECCN (US) | EAR99 |
Product Category | Inertial Measurement Unit |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Maximum Operating Supply Voltage (V) | 3.6 |
Typical Operating Supply Voltage (V) | 3.3|2.5|1.8 |
Pin Count | 14 |
Supplier Package | LGA |
Mounting | Surface Mount |
Package Height | 0.8 |
Package Length | 3 |
Package Width | 2.5 |
PCB changed | 14 |
