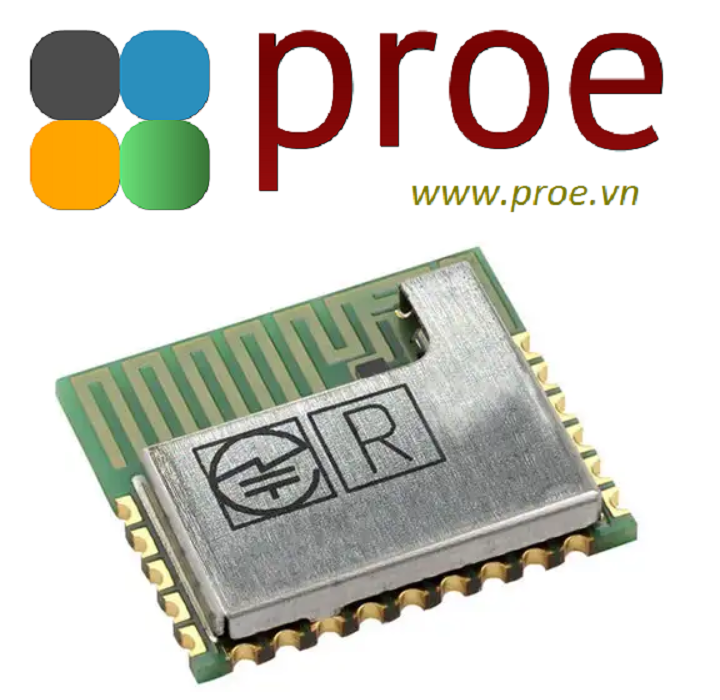

BlueNRG-M2 Very low power application processor module for Bluetooth® low energy v5.0

  • Mã sản phẩm: BlueNRG-M2
  • Nhà sản xuất: STMicroelectronics
  • Website hỗ trợ: https://www.proe.vn
290.000₫

The BlueNRG-M2 is a Bluetooth® low energy system-on-chip application processor certified module, compliant with BT specifications v5.0 and BQE qualified. The BlueNRG-M2 module supports multiple roles simultaneously and can act at the same time as Bluetooth master and slave device. The BlueNRG-M2 is based on the BlueNRG-2 system-on-chip and entire Bluetooth low energy stack and protocols are embedded into module. The BlueNRG-M2 module provides a complete RF platform in a tiny form factor. Radio, embedded antenna and high frequency oscillators are integrated to offer a certified solution to optimize the time-to-market of the final applications. The BlueNRG-M2 can be powered directly with a pair of AAA batteries or any power source from 1.7 to 3.6 V.

KEY FEATURES

  • Bluetooth v5.0 compliant
    • Supports master and slave modes
    • Multiple roles supported simultaneously
    • LE data packet length extension
  • Embedded ST BlueNRG-2 BLE SoC
    • High performance, ultra-low power Cortex-M0 32-bit based core
    • Programmable embedded 256 kB Flash
    • 24 kB embedded RAM with data retention
    • Up to +8 dBm available output power
    • Down to -88 dBm Rx sensitivity
    • Up to 96 dB link budget with excellent link reliability
  • Embedded BALF-NRG-02D3 integrated matched balun with harmonic filter
  • Interfaces
    • 1 x UART, 1 x I2C, 1xSPI, 14 x GPIO, 2 x multifunction timer, 10-bit ADC, watchdog and RTC, DMA controller, PDM stream processor, SWD debug interface
  • On-board chip antenna (BLUENRG-M2SA) or PCB antenna (BLUENRG-M2SP)
  • Small form factor: 11.5 mm x13.5 mm
  • Complemented with Bluetooth low energy protocol
  • AES security co-processor
  • Bluetooth low energy SDK with a wide range of available profiles
  • Certification
    • CE qualified
    • FCC, IC modular approval certified
    • TYPE qualified
    • BQE qualified
  • Pre-programmed UART bootloader
  • Operating supply voltage: from 1.7 to 3.6 V
  • Operating temperature range: -40 °C to 85 °C
