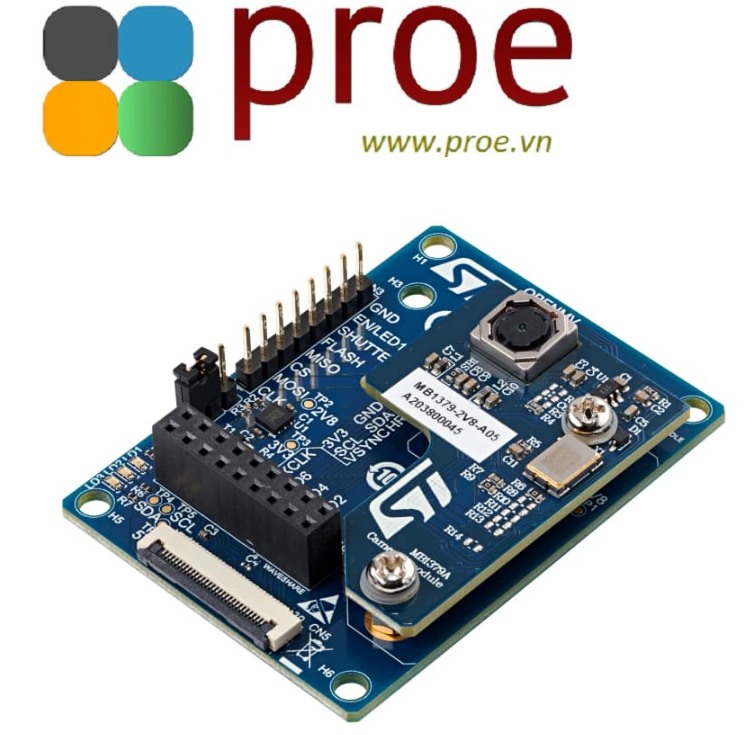

B-CAMS-OMV Camera module bundle for STM32 boards

Description

The camera module bundle (B-CAMS-OMV) provides extension connectors for the MB1379 STMicroelectronics camera module daughterboard or third-party modules like OpenMV and Waveshare modules. It can be used with the STM32 boards featuring a 1 × 30 pin ZIF connector for the connection of multiple cameras to implement computer vision on STM32 microcontrollers easily.

The camera module bundle is compatible with all STM32 Discovery kits and Evaluation boards featuring a ZIF connector, such as the STM32H747I-DISCO and 32L4R9IDISCOVERY Discovery kits.

• All features

  • Camera module adapter board (MB1683)
    • 1 × 30 pin ZIF connector and extended GPIO connector for easy connection to compatible STM32 boards
    • STMicroelectronics camera module (MB1379) connector
    • OpenMV camera module connector
    • Waveshare camera board connector
    • 3.3 V power
  • STMicroelectronics camera module (MB1379)
    • Based on the OV5640 image sensor offering a 5-Mpixel resolution with 8-bit color
  • Flexible flat cable (FFC)
