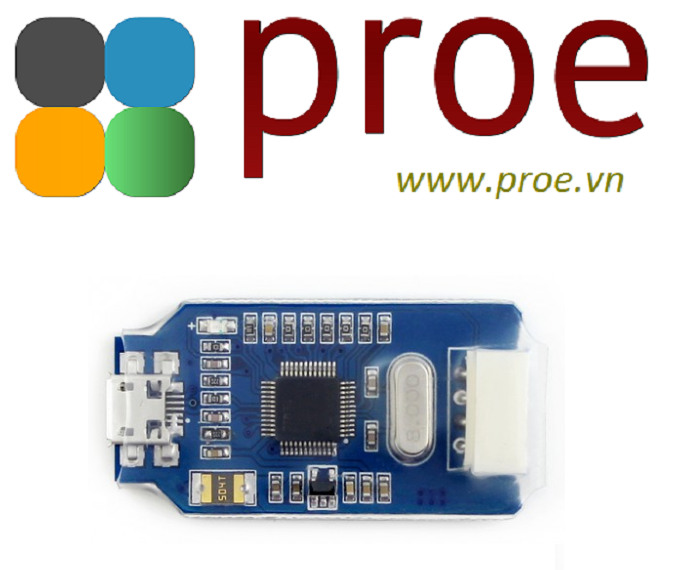

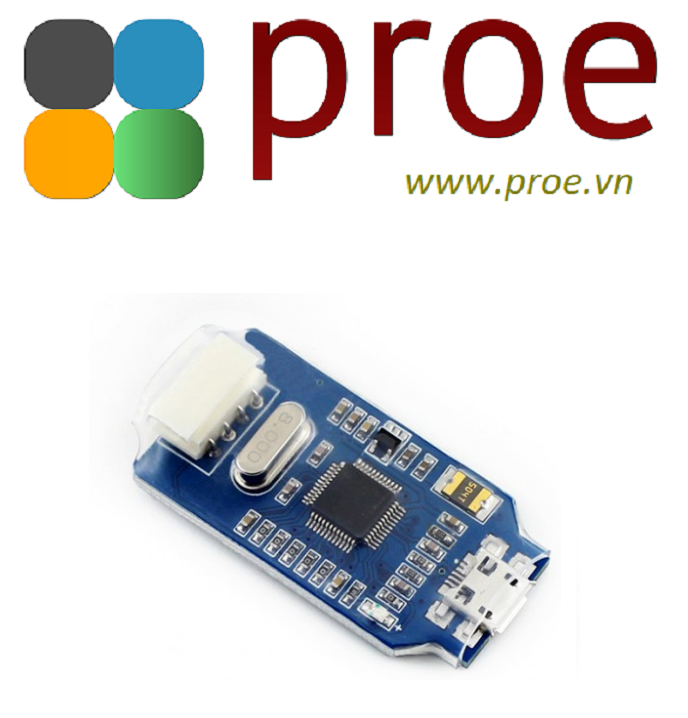

ARM Debugger Programmer

  • Mã sản phẩm: ARM Debugger Programmer
  • Nhà sản xuất: Waveshare
  • Website hỗ trợ: https://www.proe.vn
350.000₫
DESCRIPTION



JTAG/SWD Debugger Programmer with Micro USB Interface

Overview

ARM Debugger is a debugger and programmer which supports the most popular ARM core MCUs including : ARM7/9/11, Cortex-M0/M3/M4, etc.

Specifications

  • Onboard self-recovery fuse, prevent any damage from short circuit
  • 3.3V output, make it easy to debug/program the code
  • Universal Micro USB interface
  • Protected by heat-shrink tube
  • Unique ID, supports multi devices to work together at the same time

Functionality and Performance

  • Debugging
    • Supports full-speed running, single step, breakpoints and so on. Check IO status, variable, etc.
    • Quick response through the USB2.0 interface
  • Programming
    • Programs FLASH ROM, EEPROM, AFR, etc.
    • High speed SWD programming through the USB2.0 interface

Supported Software

  • Keil MDK-ARM
  • IAR EWARM
  • J-Flash ARM
  • CoIDE
  • mikroC PRO for ARM
  • nRFgo Studio (Version 1.15 OR before)

Supported MCUs

All the MCUs with SWD interface of the following cores : ARM7, ARM9, ARM11, Cortex-M0, Cortex-M3, Cortex-M4.

BRAND PART NUMBER
STA2051,STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB, STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101T4, STM32F101T6, STM32F101T8, STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101ZC, STM32F101ZD, STM32F101ZE, STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB, STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB, STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB, STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103T4, STM32F103T6, STM32F103T8, STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC, STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC
LH75400, LH75401, LH75410, LH75411, LH79520, LH79524, LH79525, LH7A400, LH7A404, LPC1102UK, LPC1111/101, LPC1111/102, LPC1111/201, LPC1111/202, LPC1112/101, LPC1112/102, LPC1112/201, LPC1112/202, LPC1113/201, LPC1113/202, LPC1113/301, LPC1113/302, LPC1114/201, LPC1114/202, LPC1114/301, LPC1114/302, LPC11C12/301, LPC11C14/301, LPC11C22/301, LPC11C24/301, LPC11U12/201, LPC11U13/201, LPC11U14/201, LPC1224/101, LPC1224/121, LPC1225/301, LPC1225/321, LPC1226/301, LPC1227/301, LPC1311, LPC1311/01, LPC1313, LPC1313/01, LPC1342, LPC1343, LPC1751, LPC1752, LPC1754, LPC1756, LPC1758, LPC1759, LPC1763, LPC1764, LPC1765, LPC1766, LPC1767, LPC1768, LPC1769, LPC1774, LPC1776, LPC1777, LPC1778, LPC1785, LPC1786, LPC1787, LPC1788, LPC1810, LPC1820, LPC1830, LPC1850, LPC2101, LPC2102, LPC2103, LPC2104, LPC2104/01, LPC2105, LPC2105/01, LPC2106, LPC2106/01, LPC2109, LPC2109/01, LPC2114, LPC2114/01, LPC2119, LPC2119/01, LPC2124, LPC2124/01, LPC2129, LPC2129/01, LPC2131, LPC2131/01, LPC2132, LPC2132/01, LPC2134, LPC2134/01, LPC2136, LPC2136/01, LPC2138, LPC2138/01, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2194/01, LPC2210, LPC2210/01, LPC2212, LPC2212/01, LPC2214, LPC2214/01, LPC2220, LPC2290, LPC2290/01, LPC2292, LPC2292/01, LPC2294, LPC2294/01, LPC2361, LPC2362, LPC2364, LPC2365, LPC2366, LPC2367, LPC2368, LPC2377, LPC2378, LPC2387, LPC2388, LPC2420, LPC2458, LPC2460, LPC2468, LPC2470, LPC2478, LPC2880, LPC2888, LPC2917, LPC2917/01, LPC2919, LPC2919/01, LPC2921, LPC2923, LPC2925, LPC2926, LPC2927, LPC2929, LPC2930, LPC2939, LPC3130, LPC3131, LPC3141, LPC3143, LPC3152, LPC3154, LPC3180, LPC3220, LPC3230, LPC3240, LPC3250, SJA2010
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3F4A0KR, S3F4A1HR, S3F4A2FR, S3FM02G
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM3S1A, AT91SAM3S1B, AT91SAM3S1C, AT91SAM3S2A, AT91SAM3S2B, AT91SAM3S2C, AT91SAM3S4A, AT91SAM3S4B, AT91SAM3S4C, AT91SAM3U1C, AT91SAM3U1E, AT91SAM3U2C, AT91SAM3U2E, AT91SAM3U4C, AT91SAM3U4E, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7L128, AT91SAM7L64, AT91SAM7S128, AT91SAM7S16, AT91SAM7S161, AT91SAM7S256, AT91SAM7S32, AT91SAM7S321, AT91SAM7S512, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7X512, AT91SAM7XC128, AT91SAM7XC256, AT91SAM7XC512, AT91SAM9260, AT91SAM9261, AT91SAM9261S, AT91SAM9263, AT91SAM9G10, AT91SAM9G20, AT91SAM9G45, AT91SAM9M10, AT91SAM9R64, AT91SAM9RL64, AT91SAM9XE128, AT91SAM9XE256, AT91SAM9XE512, SAM3N1A, SAM3N1B, SAM3N1C, SAM3N2A, SAM3N2B, SAM3N2C, SAM3N4A, SAM3N4B, SAM3N4C
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144, MC9328MX21, MCIMX27, MCIMX27L, MK10N512VMD100, MK10X128VMD100, MK10X256VMD100, MK20N512VMD100, MK20X128VMD100, MK20X256VMD100, MK30N512VMD100, MK30X128VMD100, MK30X256VMD100, MK40N512VMD100, MK40X128VMD100, MK40X256VMD100, MK50N512CMD100, MK51N512CMD100, MK52N512CMD100, MK53N512CMD100, MK60N512VMD100, MK60X256VMD100
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML675011, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML67Q5250, ML67Q5260, ML696201, ML69Q6203
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7023, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7028, ADuC7030, ADuC7032, ADuC7033, ADuC7034, ADuC7036, ADuC7037, ADuC7038, ADuC7039, ADuC7060, ADuC7061, ADuC7062, ADuC7122, ADuC7128, ADuC7129, ADuC7229
LM3S101, LM3S102, LM3S1110, LM3S1133, LM3S1138, LM3S1150, LM3S1162, LM3S1165, LM3S1166, LM3S1332, LM3S1435, LM3S1439, LM3S1512, LM3S1538, LM3S1601, LM3S1607, LM3S1608, LM3S1620, LM3S1621, LM3S1625, LM3S1626, LM3S1627, LM3S1635, LM3S1636, LM3S1637, LM3S1651, LM3S1751, LM3S1776, LM3S1811, LM3S1816, LM3S1850, LM3S1911, LM3S1918, LM3S1937, LM3S1958, LM3S1960, LM3S1968, LM3S1969, LM3S1B21, LM3S1J11, LM3S1J16, LM3S1N11, LM3S1N16, LM3S1P51, LM3S1R21, LM3S1R26, LM3S1W16, LM3S1Z16, LM3S2110, LM3S2139, LM3S2276, LM3S2410, LM3S2412, LM3S2432, LM3S2533, LM3S2601, LM3S2608, LM3S2616, LM3S2620, LM3S2637, LM3S2651, LM3S2671, LM3S2678, LM3S2730, LM3S2739, LM3S2776, LM3S2793, LM3S2911, LM3S2918, LM3S2919, LM3S2939, LM3S2948, LM3S2950, LM3S2965, LM3S2B93, LM3S300, LM3S301, LM3S308, LM3S310, LM3S315, LM3S316, LM3S317, LM3S328, LM3S3634, LM3S3651, LM3S3739, LM3S3748, LM3S3749, LM3S3826, LM3S3J26, LM3S3N26, LM3S3W26, LM3S3Z26, LM3S5632, LM3S5651, LM3S5652, LM3S5656, LM3S5662, LM3S5732, LM3S5737, LM3S5739, LM3S5747, LM3S5749, LM3S5752, LM3S5762, LM3S5791, LM3S5951, LM3S5956, LM3S5B91, LM3S5K31, LM3S5K36, LM3S5P31, LM3S5P36, LM3S5P51, LM3S5P56, LM3S5R31, LM3S5R36, LM3S5T36, LM3S5Y36, LM3S600, LM3S601, LM3S608, LM3S610, LM3S6100, LM3S611, LM3S6110, LM3S612, LM3S613, LM3S615, LM3S617, LM3S618, LM3S628, LM3S6420, LM3S6422, LM3S6432, LM3S6537, LM3S6610, LM3S6611, LM3S6618, LM3S6633, LM3S6637, LM3S6730, LM3S6753, LM3S6911, LM3S6918, LM3S6938, LM3S6950, LM3S6952, LM3S6965, LM3S800, LM3S801, LM3S808, LM3S811, LM3S812, LM3S815, LM3S817, LM3S818, LM3S828, LM3S8530, LM3S8538, LM3S8630, LM3S8730, LM3S8733, LM3S8738, LM3S8930, LM3S8933, LM3S8938, LM3S8962, LM3S8970, LM3S8971, LM3S9781, LM3S9790, LM3S9792, LM3S9997, LM3S9B81, LM3S9B90, LM3S9B92, LM3S9B95, LM3S9B96, LM3S9L97
A2F200M3F, A2F500M3G, COREMP7, Cortex-M1
CS740110-IQZ, CS740120-IQZ, CS740130-IQZ
EM351, EM357
EFM32G200F16, EFM32G200F32, EFM32G200F64, EFM32G210F128, EFM32G230F128, EFM32G230F32, EFM32G230F64, EFM32G280F128, EFM32G280F32, EFM32G280F64, EFM32G290F128, EFM32G290F32, EFM32G290F64, EFM32G840F128, EFM32G840F32, EFM32G840F64, EFM32G880F128, EFM32G880F32, EFM32G880F64, EFM32G890F128, EFM32G890F32, EFM32G890F64, EFM32TG108F16, EFM32TG108F32, EFM32TG108F4, EFM32TG108F8, EFM32TG110F16, EFM32TG110F32, EFM32TG110F4, EFM32TG110F8, EFM32TG210F16, EFM32TG210F32, EFM32TG210F8, EFM32TG230F16, EFM32TG230F32, EFM32TG230F8, EFM32TG840F16, EFM32TG840F32, EFM32TG840F8
MB9AF102N, MB9AF102R, MB9AF104N, MB9AF104R, MB9AF112L, MB9AF112M, MB9AF112N, MB9AF114L, MB9AF114M, MB9AF114N, MB9AF115M, MB9AF115N, MB9AF116M, MB9AF116N, MB9AF312L, MB9AF312M, MB9AF312N, MB9AF314L, MB9AF314M, MB9AF314N, MB9AF315M, MB9AF315N, MB9AF316M, MB9AF316N, MB9BF104N, MB9BF104R, MB9BF105N, MB9BF105R, MB9BF106N, MB9BF106R, MB9BF304N, MB9BF304R, MB9BF305N, MB9BF305R, MB9BF306N, MB9BF306R, MB9BF404N, MB9BF404R, MB9BF405N, MB9BF405R, MB9BF406N, MB9BF406R, MB9BF504N, MB9BF504R, MB9BF505N, MB9BF505R, MB9BF506N, MB9BF506R
HT32F1251, HT32F1251B, HT32F1252, HT32F1253
M0516LAN, M0516ZAN, M052LAN, M052ZAN, M054LAN, M054ZAN, M058LAN, M058ZAN, NUC100LC1AN, NUC100LD1AN, NUC100LD2AN, NUC100LD3AN, NUC100LE3AN, NUC100RC1AN, NUC100RD1AN, NUC100RD2AN, NUC100RD3AN, NUC100RE3AN, NUC100VD2AN, NUC100VD3AN, NUC100VE3AN, NUC101LC1AN, NUC101LD2AN, NUC101LE3AN, NUC101RC1AN, NUC101RD2AN, NUC101RE3AN, NUC101VC1AN, NUC101VD2AN, NUC101VE3AN, NUC120LC1AN, NUC120LD1AN, NUC120LD2AN, NUC120LD3AN, NUC120LE3AN, NUC120RC1AN, NUC120RD1AN, NUC120RD2AN, NUC120RD3AN, NUC120RE3AN, NUC120VD2AN, NUC120VD3AN, NUC120VE3AN, NUC122LC1AN, NUC122LD2AN, NUC122SC1AN, NUC122SD2AN, NUC122ZC1AN, NUC122ZD2AN, NUC130LD2AN, NUC130LD3AN, NUC130LE3AN, NUC130RD2AN, NUC130RD3AN, NUC130RE3AN, NUC130VD2AN, NUC130VD3AN, NUC130VE3AN, NUC140LD2AN, NUC140LD3AN, NUC140LE3AN, NUC140RD2AN, NUC140RD3AN, NUC140RE3AN, NUC140VD2AN, NUC140VD3AN, NUC140VE3AN, NUC710, NUC740, NUC745
BU1511KV2
PC7130, PC7230
TMPA900CMXBG, TMPA910CRAXBG, TMPM321F10FG, TMPM324F10FG, TMPM330FDFG, TMPM330FWFG, TMPM330FYFG, TMPM332FWUG, TMPM333FDFG, TMPM333FWFG, TMPM333FYFG, TMPM341FDXBG, TMPM360F20FG, TMPM361F10FG, TMPM362F10FG, TMPM363F10FG, TMPM364F10FG, TMPM370FYDFG, TMPM370FYFG, TMPM372FWUG, TMPM373FWDUG, TMPM374FWUG, TMPM380FWDFG, TMPM380FWFG, TMPM380FYDFG, TMPM380FYFG, TMPM382FSFG, TMPM382FWFG, TMPM390FWFG, TMPM395FWAXBG
AS3525
ZA9L

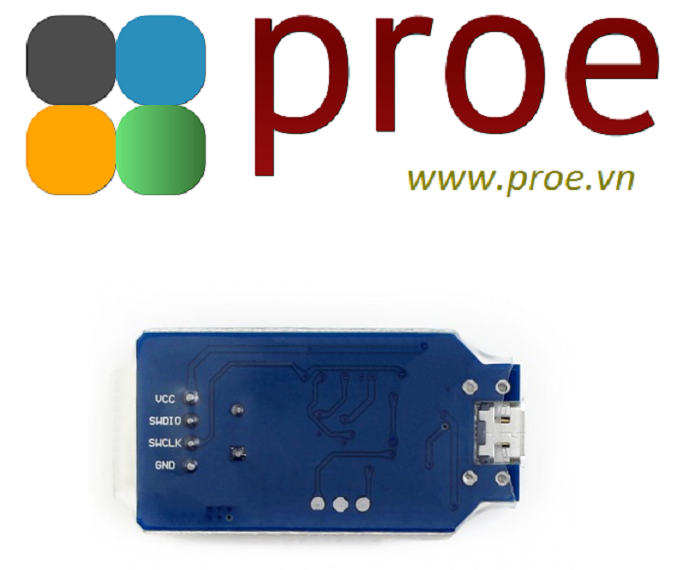

Hardware Connection

Please note that the VCC and GND should be connected correctly to avoid any damage.

Dimension

Development Resources

Wiki : www.waveshare.com/wiki/ARM-Debugger

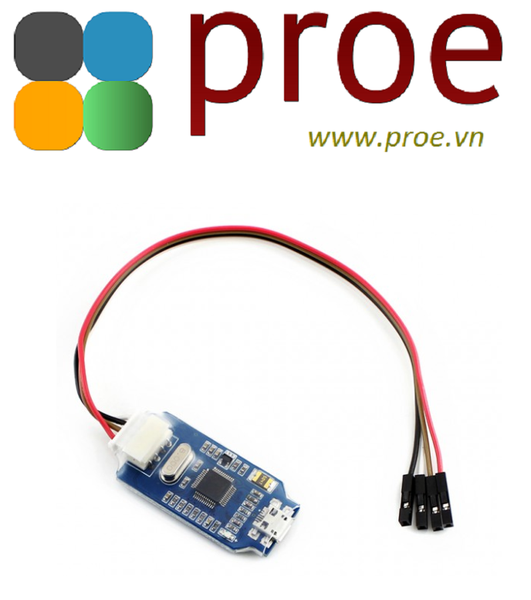

PACKAGE CONTENT

Weight: 0.058 kg

  1. ARM Debugger unit x 1
  2. USB Type A Plug to Micro B Plug Cable x 1
  3. 4-pin SWD wire x 1
  4. 4-pin jumper wire (2.0 to 2.54 pitch) x 1

1

2

3

4
