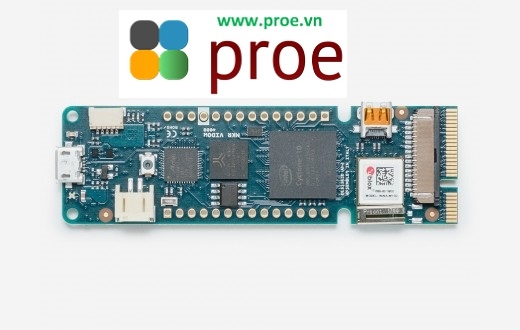

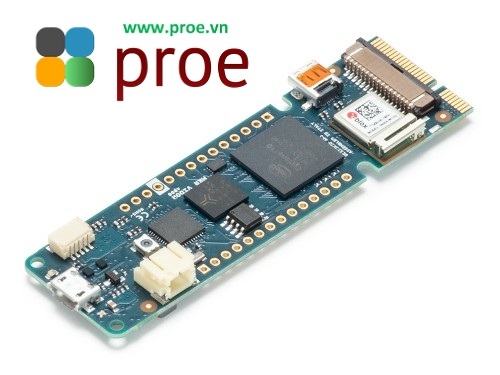

Arduino Vidor 4000

The new MKR VIDOR 4000 features : onboard 8 Mbyte SDRAM, 2 Mbyte QSPI Flash (1MB for user applications), Micro HDMI connector, MIPI camera connector, Wifi & BLE powered by U-BLOX NINA W10 Series, the classic MKR interface on which all pins are driven both by SAMD21 and FPGA and a MiniPCI Express connector with up to 25 user programmable pins.

The FPGA contains 16K Logic Elements, 504Kbit of embedded RAM and 56 18x18 bit HW multipliers for high-speed DSP; Each pin can toggle at over 150 MHz and can be configured for functions such as UARTs, (Q)SPI, high res/ high freq PWM, quadrature encoder, I2C, I2S, Sigma Delta DAC, etc.

On board FPGA can be also used for high-speed DSP operations for audio and video processing.

The MKR VIDOR 4000 features also a Microchip SAMD21 , as all the other MKR boards. Communication between FPGA and the SAMD21 is seamless.
