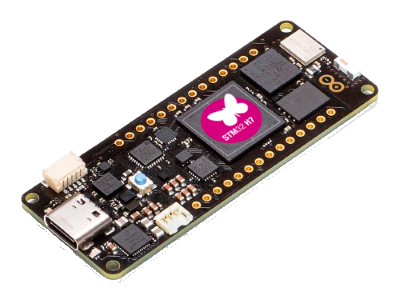

Arduino Portenta H7

Arduino Portenta H7

The Arduino Portenta H7 leverages the outstanding performance, flexibility, of the dual-core STM32H747, which can simultaneously run high level code along with real time tasks. Both cores share all the STM32 peripherals and can run:

• Arduino sketches
• Native mbed applications
• Micropython / Javascript via an interpreter
• TensorFlow Lite

The Arduino Portenta H7 board follows the MKR form factor, but is enhanced by the addition of two 80 pin high density connectors at the bottom of the board. This ensures scalability for a wide range of applications by simply upgrading your Portenta H7 board to the one suiting your needs.

This board is fully compatible with the Arduino IoT Cloud and includes the following key features :

• STM32H747 dual core Cortex M7@480 MHz + Cortex M4@240MHz
• 8 MByte SDRAM
• 16 MByte NOR Flash
• 100 MBit Ethernet Phy
• USB HS
• WiFi/BT combo
• DisplayPort over USB-C
• High density expansion port

Portenta H7 simultaneously runs high level code along with real time tasks. The design includes two processors that can run tasks in parallel. For example, is possible to execute Arduino compiled code along with MicroPython one, and have both cores to communicate with one another. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board, or as the main processor of an embedded computer. Use the Portenta Carrier board to transform your H7 into an eNUC computer and expose all of the H7 physical interfaces.

Portenta can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low level operationis like controlling a motor, or acting as a user interface.

Use Portenta when performance is key, among other cases, we envision it to be part of:

• High-end industrial machinery
• Laboratory equipment
• Computer vision
• PLCs
• Industry-ready user interfaces
• Robotics controller
• Mission-critical devices
• Dedicated stationary computer
• High-speed booting computation (ms)

Two Parallel Cores

H7's main processor is a dual core unit made of a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:

• Arduino sketches on top of the Arm® Mbed™ OS
• Native Mbed™ applications
• MicroPython / JavaScript via an interpreter
• TensorFlow™ Lite

Graphics Accelerator

Probably one of the most exciting features of the Portenta H7 is the possibility of connecting an external monitor to build your own dedicated embedded computer with a user interface. This is possible thanks to the processor's on-chip GPU, the Chrom-ART Accelerator™. Besides the GPU, the chip includes a dedicated JPEG encoder and decoder.

A new standard for pinouts

The Portenta family adds two 80 pin high density connectors at the bottom of the board. This ensures scalability for a wide range of applications by simply upgrading your Portenta board to the one suiting your needs.

On-board Connectivity

The onboard wireless module allows to simultaneously manage WiFi and Bluetooth® connectivity. The WiFi interface can be operated as an Access Point, as a Station or as a dual mode simultaneous AP/STA and can handle up to 65 Mbps transfer rate. Bluetooth® interface supports Bluetooth Classic and BLE. It is also possible to expose a series of different wired interfaces like UART, SPI, Ethernet, or I2C, both through some of the MKR styled connectors, or through the new Arduino industrial 80 pin connector pair.

USB-C Multipurpose Connector

The board's programming connector is a USB-C port that can also be used to power the board, as a USB Hub, to connect a DisplayPort monitor, or to deliver power to OTG connected devices.

Multiple options in one board

Order the default Arduino Portenta H7 (codename H7-15EUNWAD) that comes with:

• 8MB SDRAM
• 16MB NOR Flash
• 10/100 Ethernet Phy
• USB HS
• NXP SE050C2 Crypto
• WiFi/BT Module
• Ceramic Antenna
• DisplayPort over USB-C

If you need more memory, Portenta H7 can host up to 64 MByte of SDRAM, and 128 MByte of QSPI Flash. Order it with an external UFL connector for adding a higher-gain antenna to the board. Decide between crypo-chips from Microchip® and NXP. The board is highly customizable in volumes, ask our sales representatives for options.

The basic configurations you can consider to get the board to accommodate to your needs and budget are:
