Arducam PiVariety 2MP Global Shutter OV2311 Mono Camera Modules (NoIR), compatible with Raspberry Pi ISP and Gstreamer Plugin

  • Mã sản phẩm: B0381
  • Nhà sản xuất: uctronics
  • Website hỗ trợ: https://www.proe.vn
4.350.000₫

Overview

Arducam PiVariety is a Raspberry Pi camera solution to take the advantage of using its hardware ISP functions. For a long time, Raspberry Pi users are limited to use the closed-source official supported camera driver and camera modules (V1/V2/HQ). Now Arducam made it possible to provide well-tuned ISP for PiVariety camera modules with Auto Exposure, Auto White Balance, Auto Gain Control, Lens Shading Correction, etc.

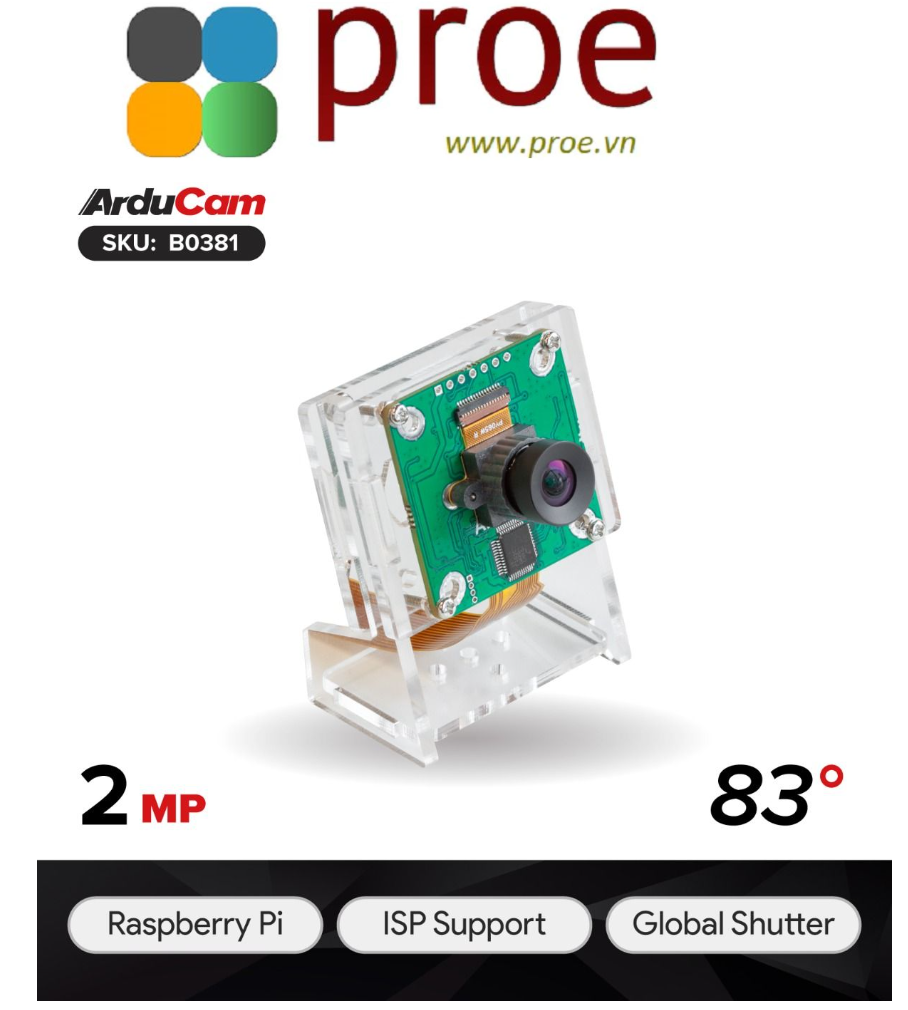

This B0381 is a new member of Arducam PiVariety series, which adopts a 1/2.9Inch 2MP  Global Shutter sensor OV2311, assembled with a Low distortion lens.

Applications

  • Augmented and virtual reality
  • Drones
  • 3D imaging
  • Machine vision
  • Industrial bar code scanning
  • Industrial automation

Specifications

Image Sensor Monochrome Global Shutter OV2311
Optical Size 1/2.9”
Resolution 2MP 1600×1300
Max Frame Rate 1600 x 1300@30fps, 1600x 1080@30fps, 1280 x 720@60fps
Input clock frequency 6~27 MHz
Max S/N ratio 37.4 dB
Dynamic range 68dB
Pixel Size 3 μm x 3 μm
Focus Type Manual Focus
Field of View(FOV) 83°(H), 67.5°(V)
IR Sensitivity NoIR, IR sensitive
Output Format 8/10-bit BW RAW
Output Interface 2-lane MIPI serial output
Camera Board Size 40mm x 40mm
Minimum exposure time 1 row period (11.3us at the resolution of 1600×1300 on Raspberry Pi)

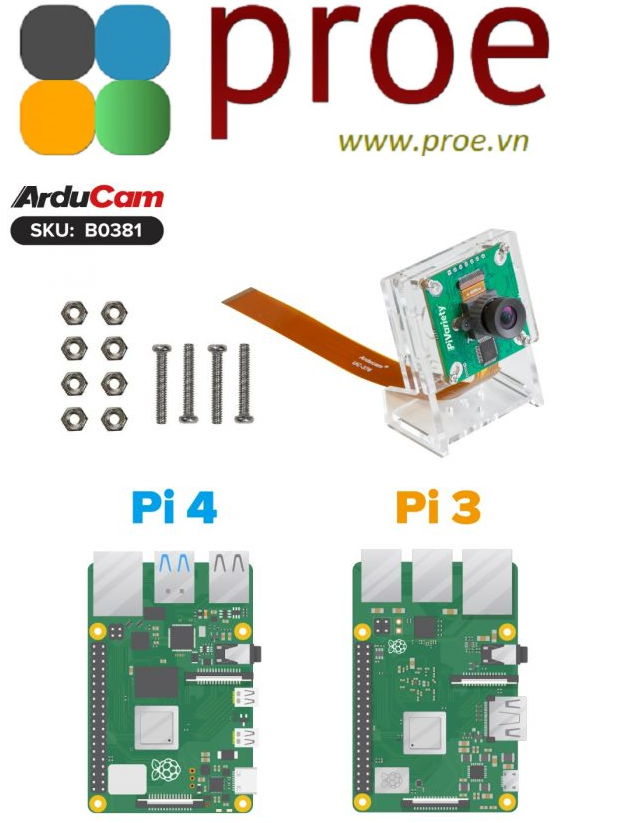

Package Including

  • 1 x Arducam 2MP OV2311 ISP Camera Module
  • 1 x 15cm 15-22pin Camera FPC Cable

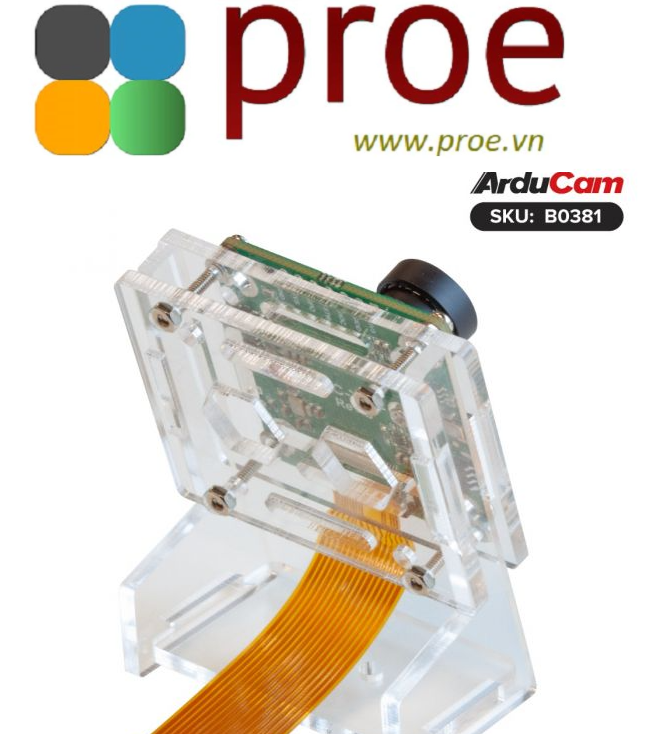

  • 1 x acrylic case kit with assembly accessories

Note

  • Raspberry Pi is not included in the package
  • You need driver for this camera module, please refer to the following documentation to run it

Documentation
