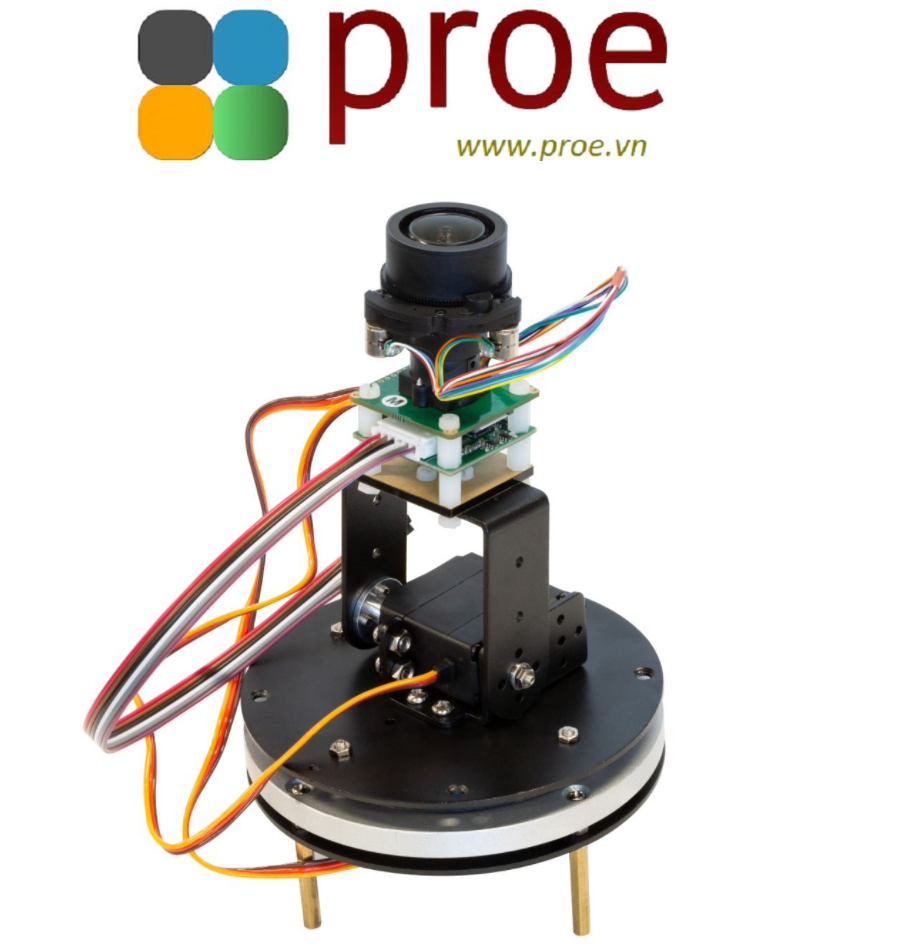

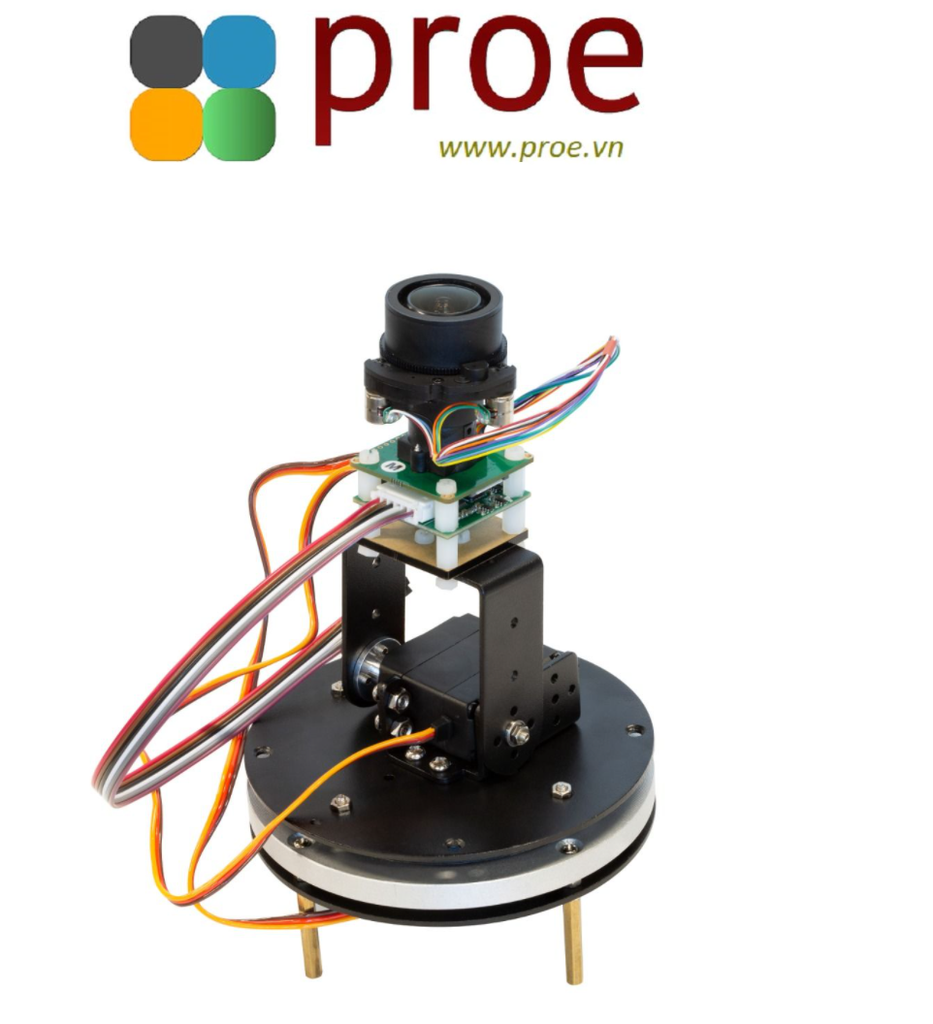

Arducam IMX477 12MP PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano/Xavier NX, IR-Cut Switchable Camera with Metal Base and 2 Digital Servos

Overview

Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What’s more, this kit is based on the IR-CUT switchable 12MP camera to get sharp imaging all day and night.

Application

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.

Features

• Resolution: High Resolution
• Shutter Type: Rolling Shutter
• Color Type: Color
• Interface: MIPI
• Platform Support: Raspberry Pi/Jetson Nano/Xavier NX

Specification

– Camera & Lens

• Sensor: IMX477
• Pixel Size: 1.55 µm x 1.55 µm
• Resolution: 4056(H) x 3040(V) 12.3MP
• Optical Size: 1/2.3″
• Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
• Frame Rate on Jetson Nano/Xavier NX:1920×1080 @ 60fps,4032×3040 @ 30fps
• IR sensitivity: Optional with additional Motorized IR-Cut filter
• Focus: Front group – focus, Back group – Zoom
• Field of View: 96° – 33° (Horizontal)
• Focal length: 4.38-10.71mm±5%

– PTZ Base

• Material: Full metal, aluminum alloy
• Shipping Weight: 480g (1.06lb)
• Overall Size: 12cm*12cm*13cm(L*W*H)

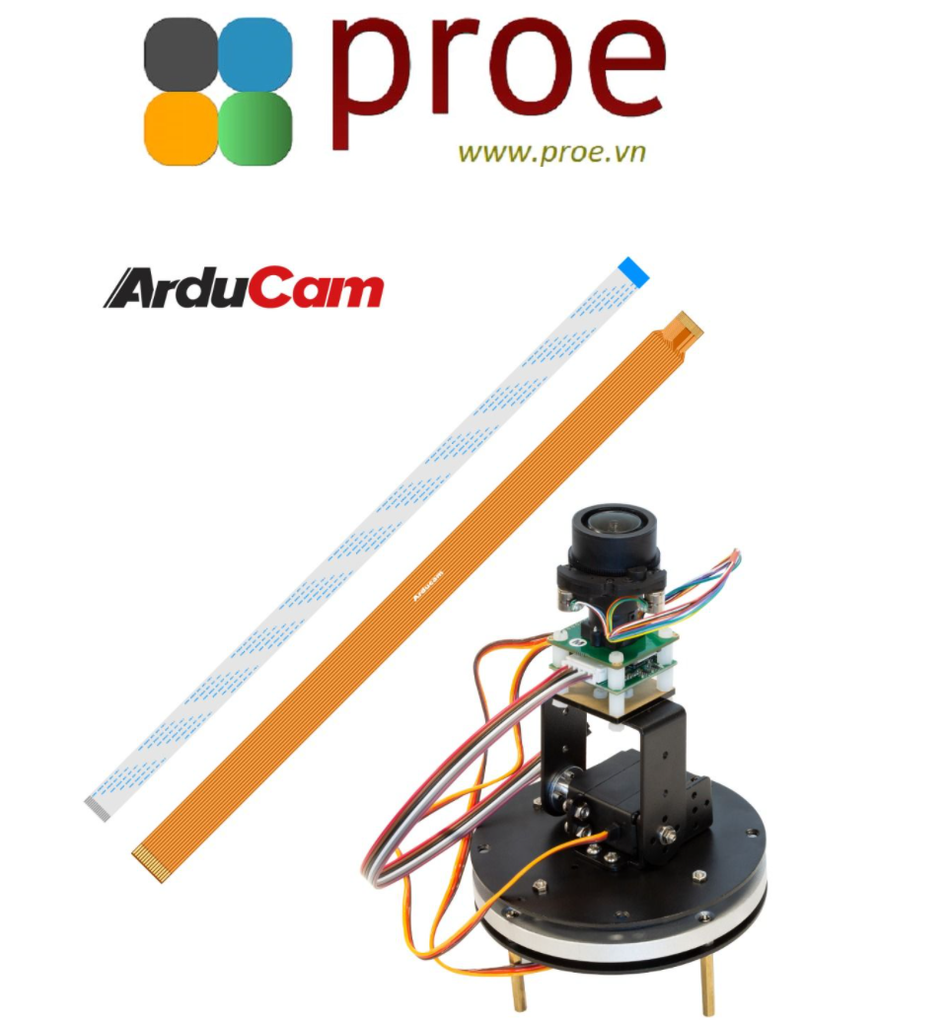

Package Contents

• 1pcs Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board
• 1pcs Pre-assembled Metal Base with 2 Digital Servos
• 1pcs 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)
• 1pcs 22-Pin Ribbon Cable (11.8 in/30 cm)
• 1pcs XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)
• 4pcs Copper Standoffs for the Base
• 1pcs Black Acrylic Sheet for fixing the camera module to the u-shaped bracket

Note: For the new version(R32 4.4), please refer to the following link: https://github.com/ArduCAM/MIPI_Camera/releases/tag/v0.0.2

Documentation

Used on Raspberry Pi

Used on Jetson Nano/Xavier NX

How to use PTZ Camera with Octopi to monitor 3D printers

Video

Raspberry Pi IMX477 Pan Tilt Zoom Camera Guide

Jetson Nano NX IMX477 Pan Tilt Zoom Camera Guide
