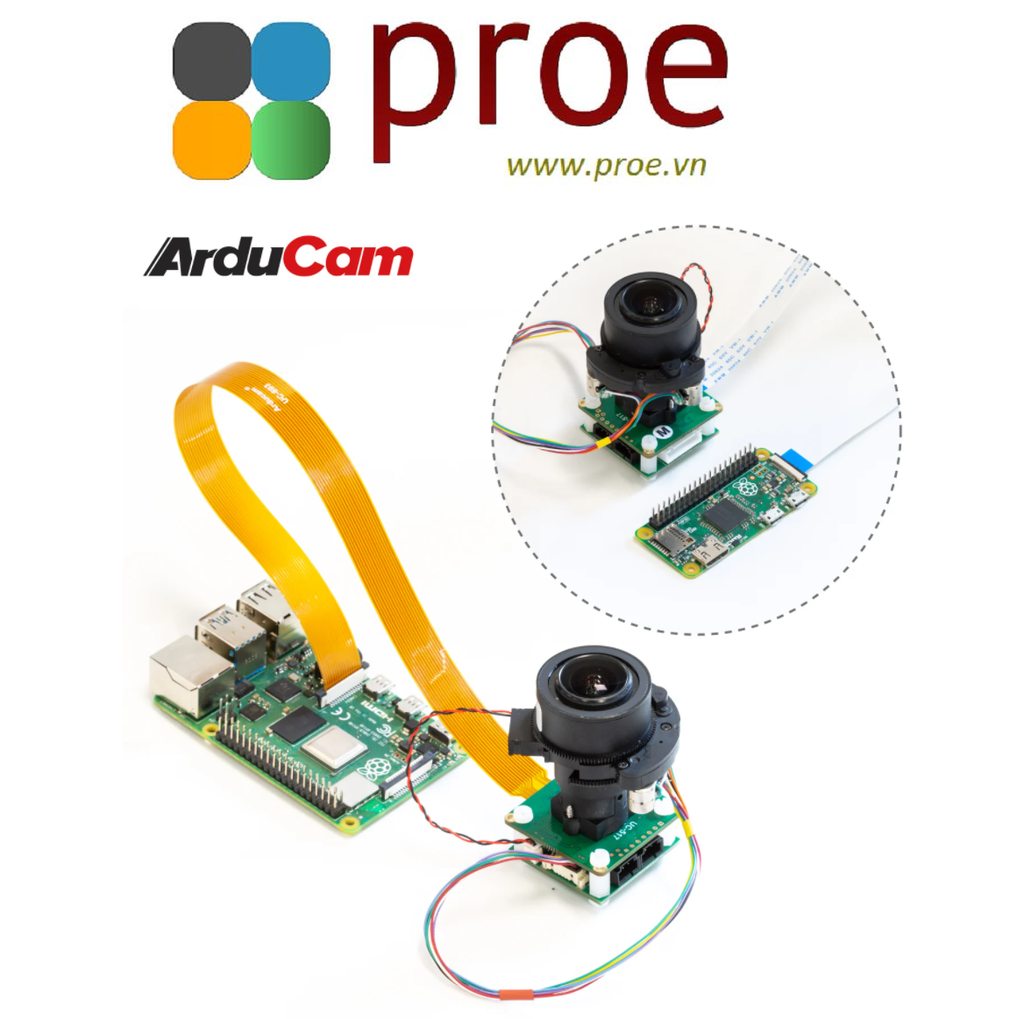

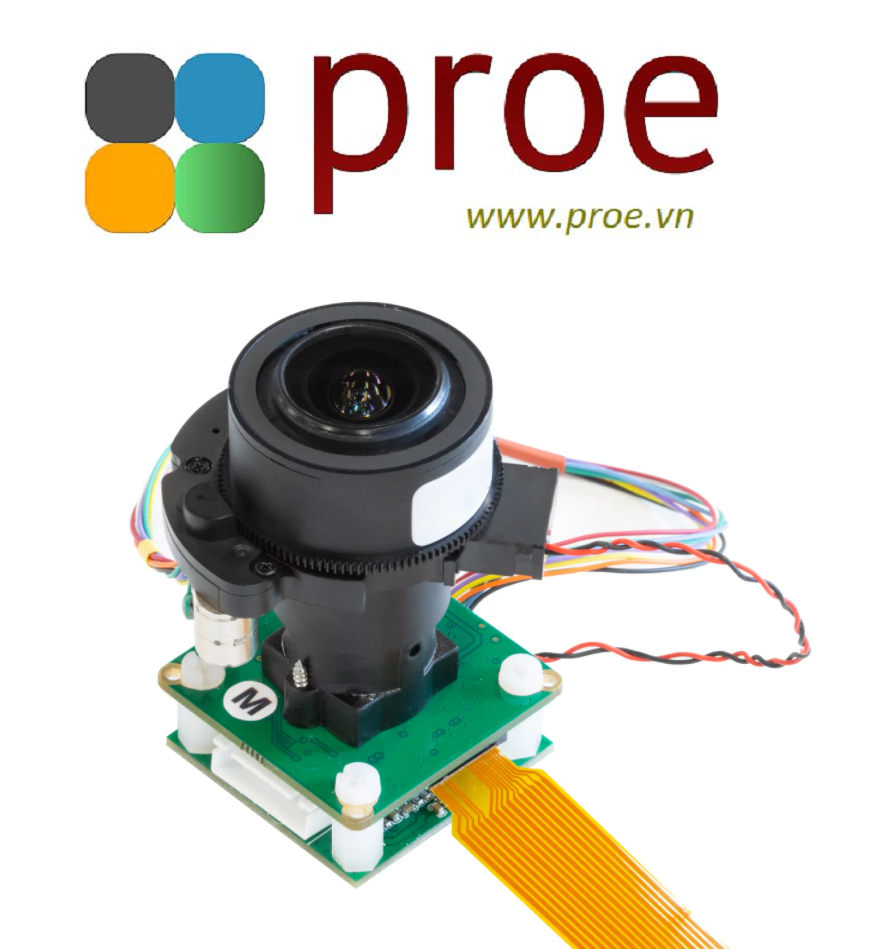

Arducam 12MP IMX477 Pan Tilt Zoom(PTZ) Camera for Raspberry Pi 4/3B+/3 and Jetson Nano, IR-Cut Switchable Camera

Overview

Arducam PTZ camera is a complete solution to turn your Raspberry Pi/Jetson Nano/Xavier NX, and it is capable of remote directional and zoom control, so it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera. What’s more, this kit is based on the IR-CUT switchable 13MP camera to get sharp imaging all day and night.

Application

This cost-effective and flexible PTZ camera performs better in Day&night vision security camera system, motion detection, wildlife photography and other machine vision projects.

Features

• Resolution: High Resolution
• Shutter Type: Rolling Shutter
• Color Type: Color
• Interface: MIPI
• Platform Support: Raspberry Pi/Jetson Nano/Xavier NX

Specs

• Sensor: IMX477
• Pixel Size: 1.55 µm x 1.55 µm
• Resolution: 4056(H) x 3040(V) 12.3MP
• Optical Size: 1/2.3″
• Video Modes on Raspberry Pi: 1080p30, 720p60 and 640 × 480p60/90
• Frame Rate on Jetson Nano/Xavier NX:1920×1080 @ 60fps,4032×3040 @ 30fps
• IR sensitivity: Optional with additional Motorized IR-Cut filter
• Focus: Front group – focus, Back group – Zoom
• Field of View: 96° – 33° (Horizontal)

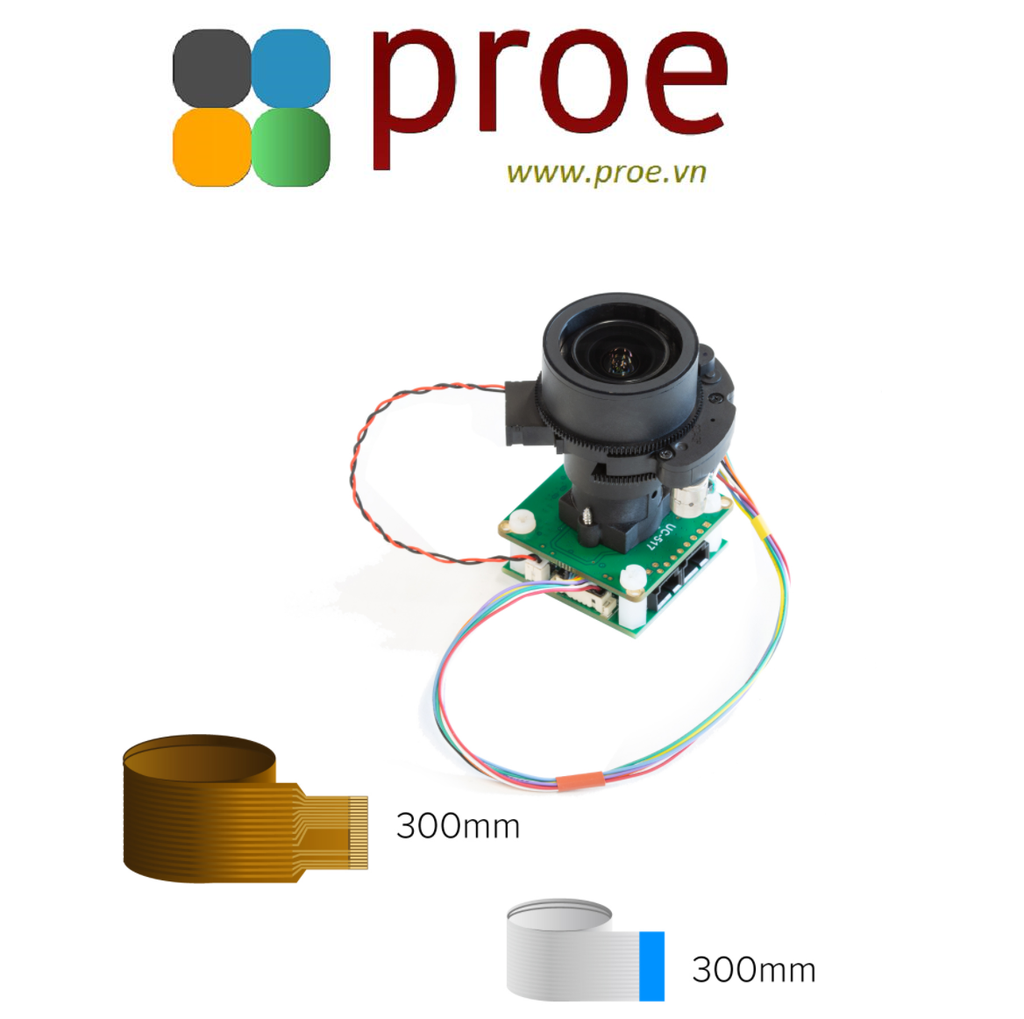

Package Contents

• 1pcs Arducam PTZ Lens, assembled with a 12MP IR-CUT switchable camera board and camera control board
• 1pcs 15-Pin to 22-Pin Ribbon Cable (11.8 in/30 cm)
• 1pcs 22-Pin Ribbon Cable (11.8 in/30 cm)
• 1pcs XH2.54 Jumper wire with 6-Pin Female Connector (11.8 in/30 cm)
• 4pcs Copper Standoffs for the Base

Documentation

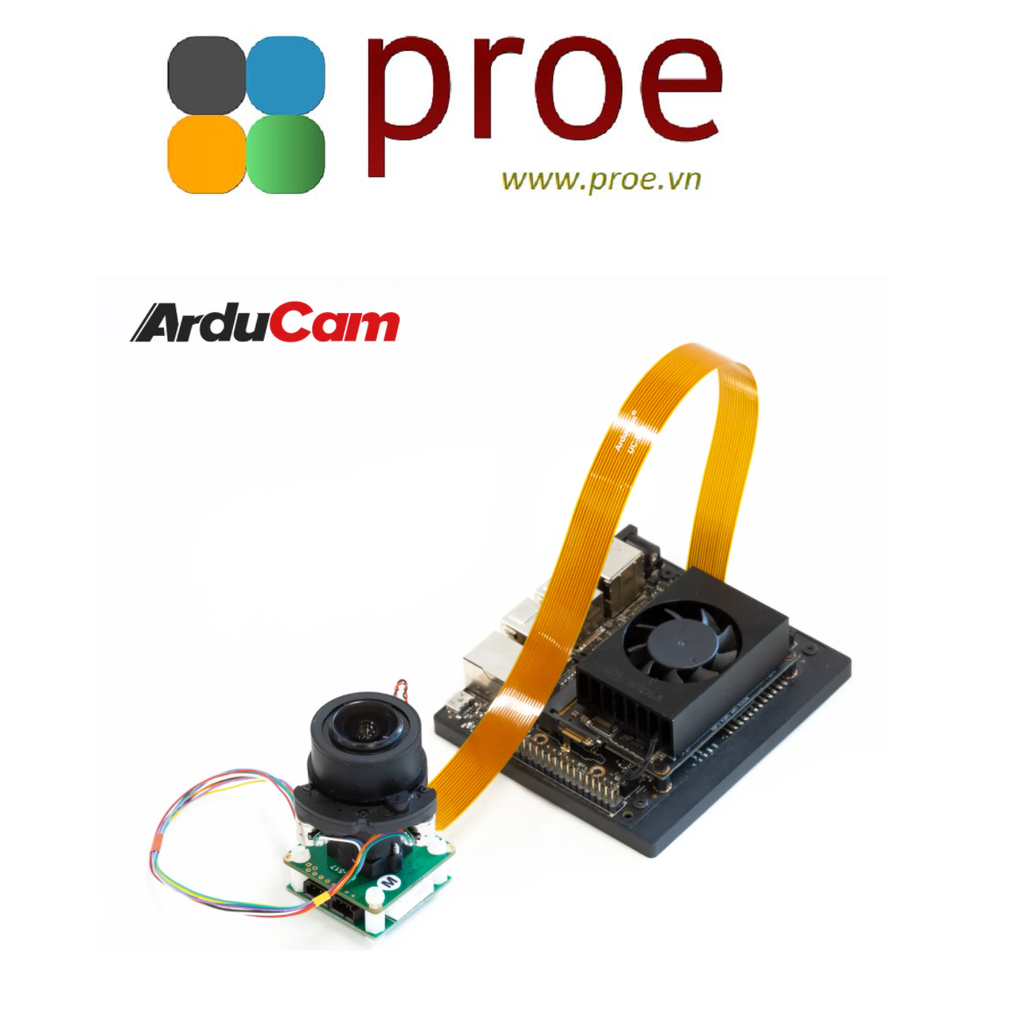

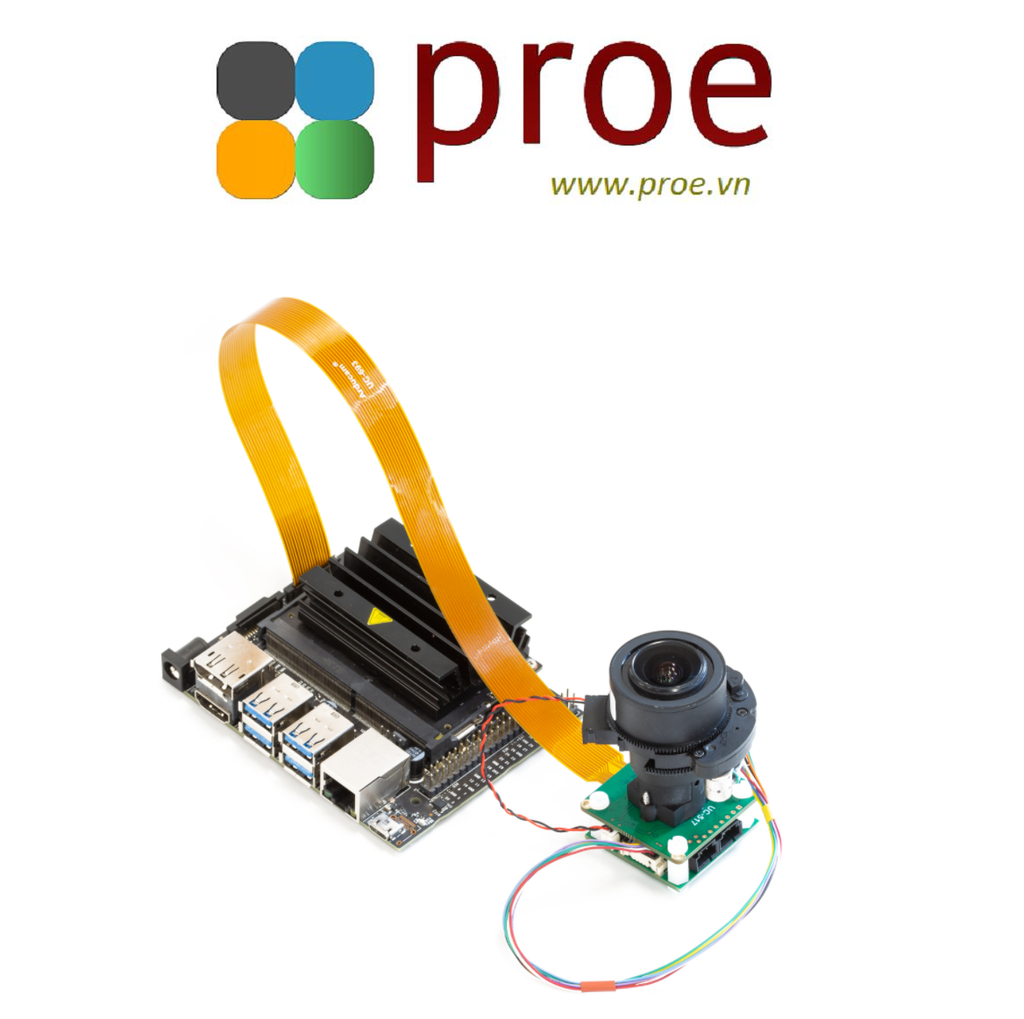

Used on Jetson Nano/Xavier NX
