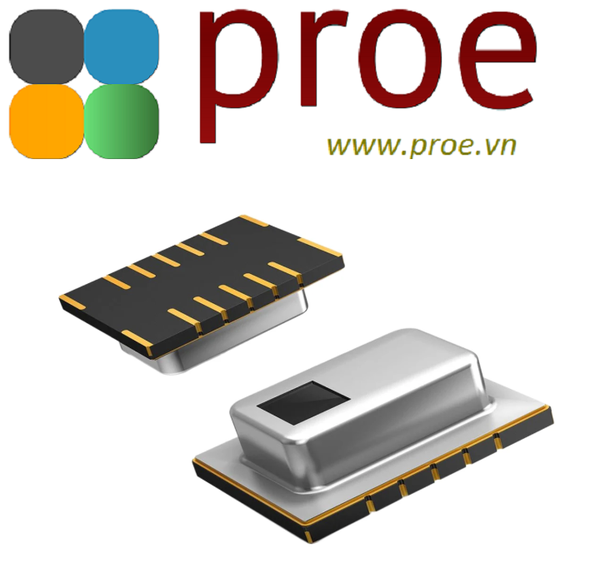

AMG8854 Panasonic, Grid-EYE Proximity Sensor Infrared Array Sensor, ≤7m 14-Pin

  • Mã sản phẩm: Camera ảnh nhiệt AMG8854
  • Nhà sản xuất: Panasonic
  • Website hỗ trợ: https://www.proe.vn
950.000₫

Product Details

Grid-EYE IR Array Sensors

The Grid-EYE sensors from Panasonic are designed for proximity detection by an IR array sensor. This compact package features and 8 x 8 IR sensor array.
Grid-EYE high precision sensors are based on advanced MEMS technology. They utilise a grid of IR sensors to detect the heat (IR rays) of the human body and other objects. The size of detection on the grid also determines the distance between the person and the sensor. For example, the smaller the detected area, the further away the person is and the larger the detected area, the closer the person is.

Features and Benefits
High gain or Low Gain options
8 x 8 IR grid array (64 pixels)
Compact SMD package
Digital output

Product Applications
Grid-EYE sensors are designed to work in applications to improve function and to save energy. They can be used for detection of human activity for air conditioning and lighting within an office or home environment. Alternatively they are ideal for sensing people at automatic doors and elevators.

Sensor Interfaces, Panasonic

Specifications

Attribute Value
Sensor Type Infrared Array Sensor
Maximum Output Current 10mA
Sensing Distance ≤7m
Switching Mode Digital
Mounting Type Surface Mount
Pin Count 14
Maximum Supply Current 4.5 mA
Dimensions 11.6 x 8 x 4.3mm
Height 4.3mm
Length 11.6mm
Series Grid-EYE
Minimum Operating Temperature -20 °C
Width 8mm
Maximum Operating Supply Voltage 5 V dc
Maximum Operating Temperature +80 °C
