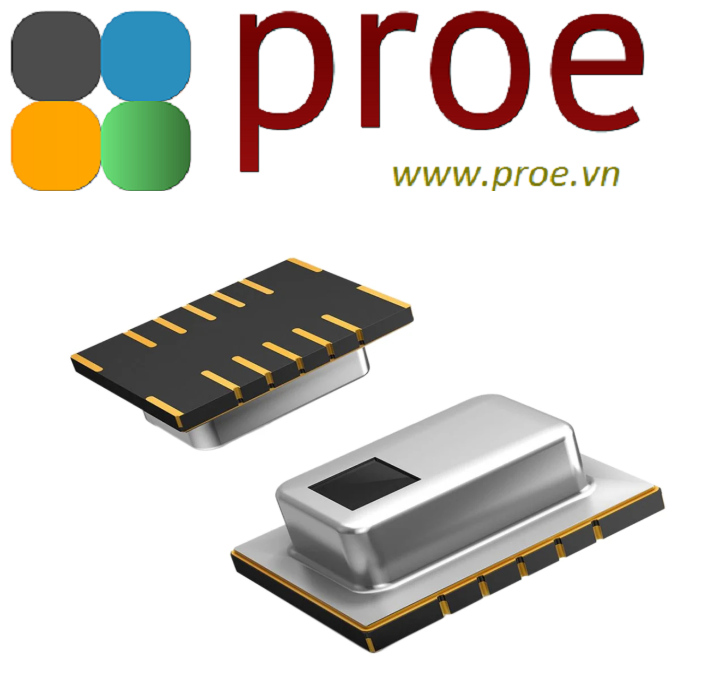

AMG8853 - Temperature Sensor IC, Grid EYE Infrared Array, Digital, ± 2.5°C, 0 °C, 80 °C, Module, 14 Pins

  • Mã sản phẩm: Camera ảnh nhiệt AMG8853
  • Nhà sản xuất: Panasonic
  • Website hỗ trợ: https://www.proe.vn
800.000₫

Infrared Array Sensor Digital Output 5V 14-Pin SMD T/R

The AMG8853 is a Grid-Eye infrared array sensor in 14 pin SMD module. This high precision infrared array sensor based on advanced MEMS technology. It detects the heat (infrared rays) of the human body and other objects. Typical applications include high function home appliances such as microwaves and air-conditioners, energy saving at office such as air-conditioning/lighting control, digital signage and automatic doors/elevators.

  • Temperature detection of two-dimensional area is 8 x 8 (64 pixels)
  • Operating voltage is 5VDC
  • High performance type high gain amplification
  • Temperature accuracy is ±3.0°C or ±5.4°F (typical )
  • Human detection distance is 7m or less (reference value) 22.966ft
  • Noise equivalent temperature difference is 0.05°C or 32.900°F at 1Hz
  • Viewing angle is 60° and optical axis gap is within ±5.6°(typical)
  • Current consumption is 4.5mA (normal mode), 0.2mA (sleep mode), 0.8mA (stand-by mode)
  • I2C interface and frame rate is typically 10frames/sec or 1frame/sec
  • Time to enable communication after setup is 50ms & time to stabilize output after setup is 15ms

Applications

Sensing & Instrumentation, Consumer Electronics

Product Technical Specifications

EU RoHS Compliant with Exemption
Part Status Active
HTS 8542.39.00.01
PCB changed 14
Package Height 4.3
Mounting Surface Mount
Package Length 11.6
Package Width 8
Product Category Infrared Array Sensor
Minimum Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 80
Packaging Tape and Reel
Minimum Storage Temperature (°C) -20
Maximum Operating Supply Voltage (V) 5.5
Typical Operating Supply Voltage (V) 5
Pin Count 14
Supplier Package SMD
